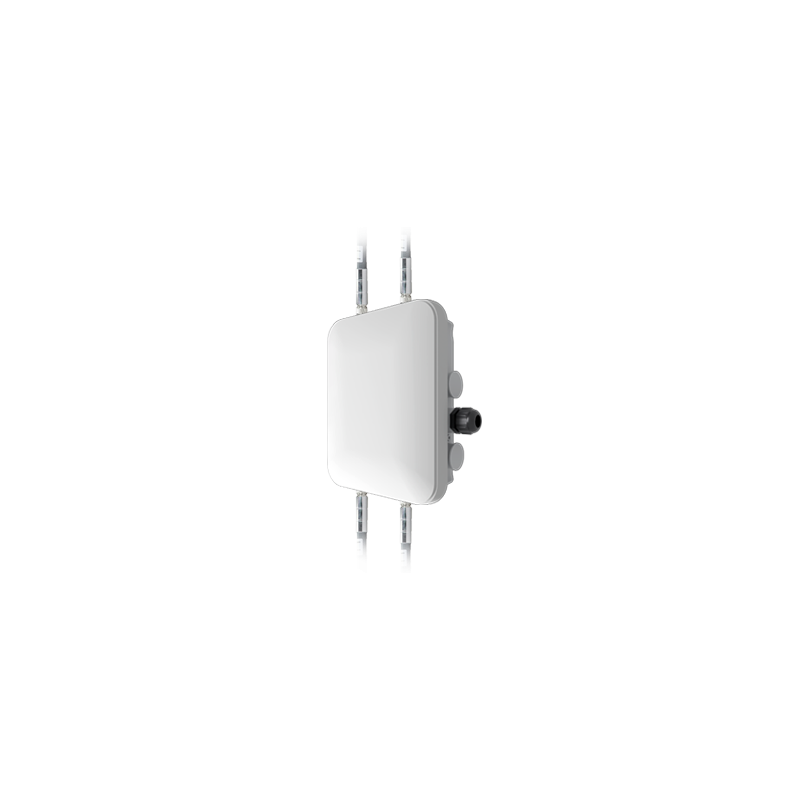

AP520X – Outdoor WiFi 6 AX3000 access point, IP67, 1 km range, 802.3at PoE
search
  • AP520X – Outdoor WiFi 6 AX3000 access point, IP67, 1 km range, 802.3at PoE
  • AP520X – Outdoor WiFi 6 AX3000 access point, IP67, 1 km range, 802.3at PoE
ID: 1200618
zł839.91
Tax included

zł682.85 tax excl.

AP520X is a high-performance outdoor WiFi 6 access point, ideal for installations in public and industrial environments. It offers weather resistance (IP67), a range of up to 1 km, a wide operating temperature range, and advanced network features including VPN support, central management, and PoE power supply.

4 weeks
Awaiting delivery
Kamami is the official distributor of USR converters. All products of this brand in our offer are original and come directly from the manufacturer.

Description

AP520X is an industrial dual-band WiFi 6 access point designed for outdoor applications. With the Qualcomm chipset (IPQ5018 and QCN6102), 27 dBm transmit power, and 6 dBi omnidirectional antennas, the device provides wireless speeds up to 2975 Mbps and a range of up to 1 km in open terrain. It supports up to 256 users simultaneously, ensuring reliable and fast connectivity in environments such as parks, mines, warehouses, production halls, and smart cities.

AP520X supports AP, router, and repeater modes and allows central (thin mode) or local (fat mode) management. The device is weather-resistant (IP67), equipped with 2 kV surge protection, and can be mounted on a wall or bracket. Power is supplied via PoE (802.3at), which simplifies installation in hard-to-reach locations.

Properties

  • WiFi standard: IEEE 802.11a/b/g/n/ac/ax (WiFi 6)
  • Frequencies: 2.4 GHz (574 Mbps), 5 GHz (2402 Mbps)
  • Chipsets: Qualcomm IPQ5018 (2.4 GHz), QCN6102 (5 GHz)
  • Antenna: 4 × external N-type antennas (6 dBi)
  • Transmit power: 27 dBm
  • Range: up to 1 km (open area)
  • Max. number of users: 256
  • Ethernet port: 1 × 1G RJ-45 WAN/LAN (10/100/1000 Mbps, auto MDI/MDIX)
  • Power supply: 48 V PoE (IEEE 802.3at), power consumption 15 W
  • RAM: 512 MB DDR3L
  • Flash memory: 128 MB NAND + 8 MB NOR
  • Operating modes: Access Point, Router, Repeater
  • VPN: IPSec, PPTP, L2TP
  • Management: local, via controller, or PUSR Cloud
  • Security: WPA, WPA2, WPA3
  • Operating temperature: -40°C to +70°C
  • Storage temperature: -40°C to +85°C
  • Enclosure: metal, IP67 protection class
  • Dimensions: 245 × 200 × 90 mm
  • Weight: 1.8 kg
  • Mounting: wall or bracket
