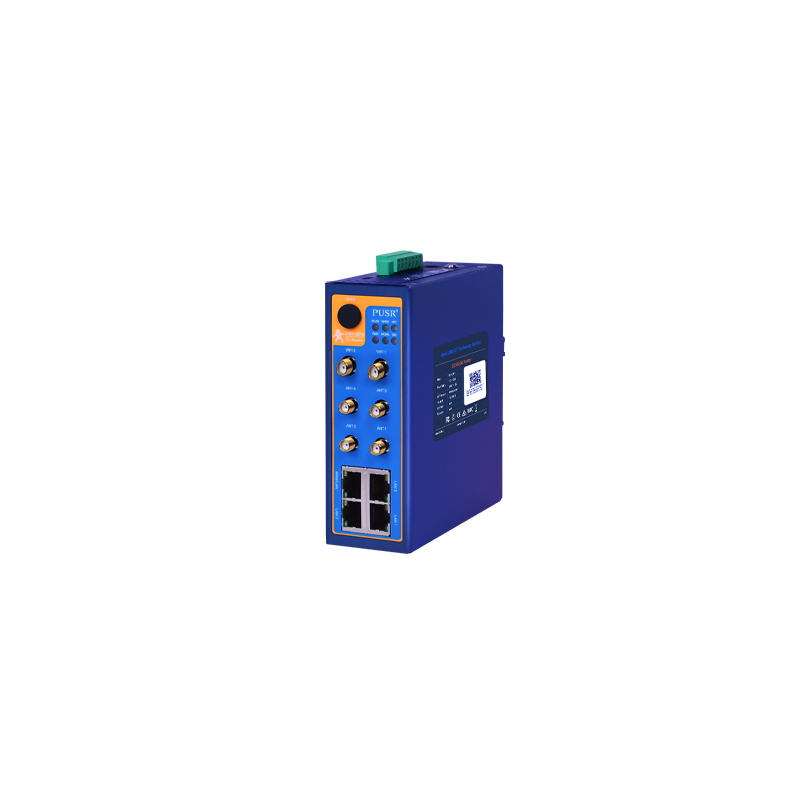

USR-G816W-GL - Industrial 5G router with 4 Gigabit Ethernet ports, Wi-Fi 5, RS485/RS232 and dual SIM
ID: 1200630
zł1,780.08
Tax included
zł1,447.22 tax excl.
The industrial router USR-G816W-GL offers broadband 5G connectivity with dual SIM, four Gigabit Ethernet ports and dual-band Wi-Fi, ensuring secure and reliable data transmission in industrial and IoT systems. Thanks to resistance to environmental conditions and support for multiple VPN protocols, it is suitable for applications requiring high availability and remote management.
Description
The industrial router USR-G816W-GL provides reliable 5G/4G/3G cellular connectivity in NSA and SA modes, supporting high network availability in demanding industrial applications. The device offers four gigabit Ethernet ports (1 x WAN/LAN, 3 x LAN), a dual SIM slot for redundant inter-operator connectivity, a dual-band Wi-Fi 802.11a/b/g/n/ac module (2.4 GHz and 5.8 GHz), as well as an RS485/RS232 serial interface. It operates in a temperature range from -35°C to +75°C, with DC 9–36 V power supply and ESD/EFT/surge protection compliant with IEC standards.
It supports VPN protocols (IPsec, PPTP, L2TP, OpenVPN, GRE, VXLAN), NAT, DMZ, port forwarding and advanced access control. It enables data transmission from serial devices via TCP/UDP and Modbus RTU to Modbus TCP conversion. The router integrates a hardware watchdog, automatic switching function between WAN/cellular/Wi-Fi, PUSR Cloud remote management platform and an optional GNSS module for positioning applications (GPS, GLONASS, BeiDou, Galileo). Designed for continuous operation in M2M/IoT systems, industrial automation, monitoring and mobile applications.
Properties
- Support for 5G NSA/SA sub-6 GHz, LTE (Cat 19/18), 3G WCDMA
- Dual SIM slots (2FF), configurable eSIM
- Ports: 1 x WAN/LAN 10/100/1000 Mbps, 3 x LAN 10/100/1000 Mbps
- Wi-Fi 802.11a/b/g/n/ac (dual-band, MU-MIMO), up to 1733 Mbps
- RS485/RS232 interface, transparent transmission, Modbus RTU to TCP
- Power supply: DC 9–36 V, power consumption up to 1.6 A at 12 V
- Metal IP30 housing, DIN-rail, wall or desktop mounting
- Operating temperatures: -35°C to +75°C
- Protections: ESD, EFT, surge (IEC61000-4-2/4/5 level 3)
- Remote management: Web UI, SNMP, PUSR Cloud
- Security: firewall, DMZ, NAT, SYN-flood, IP/MAC/domain filtering
- VPN support: IPsec, OpenVPN, PPTP, L2TP, GRE, VXLAN
- Optional GNSS module (GPS, GLONASS, BeiDou, Galileo)
- LED indicators: power, network, signal, Wi-Fi, WAN, LAN
Included in the set
- USR-G816W-GL router
- Power connector
- LTE antennas (4 x SMA)
- Wi-Fi antennas (2 x SMA)
- DIN-rail mounting kit
