USR-W610s is an industrial Wi-Fi client with RS232/RS485 ports and dual Ethernet, designed for reliable data transmission in applications requiring low latency and high stability. Ideal for monitoring, warehouse systems, industrial automation and smart city installations.

24h
Available
Available quantity: 2
Kamami is the official distributor of USR converters. All products of this brand in our offer are original and come directly from the manufacturer.

Description

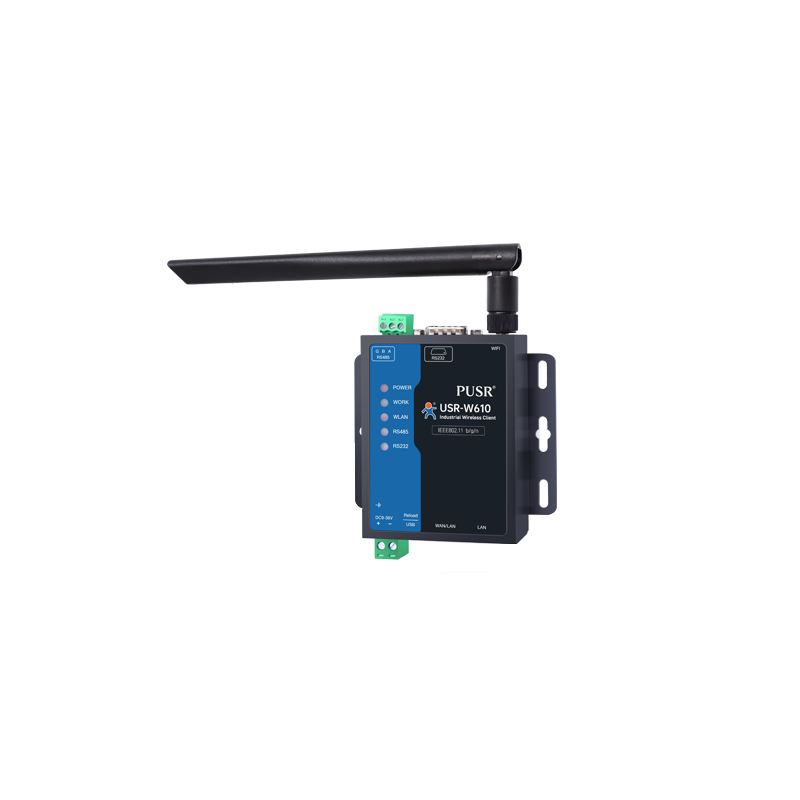

USR-W610s is an industrial wireless serial server based on the Qualcomm platform, providing stable connectivity via a 2.4 GHz Wi-Fi network and RS232 and RS485 serial interfaces. It supports 802.11b/g/n standards, Wi-Fi operating modes AP, STA, AP+STA and Bridge/Routing, allowing flexible adaptation to various network architectures. The device is equipped with two Ethernet ports (1×WAN/LAN, 1×LAN), supports multiple transmission protocols including TCP, UDP, Modbus, MQTT, HTTP and SNMP, as well as cloud integration (PUSR, Alibaba Cloud, AWS). Built-in hardware and software watchdog mechanisms and self-healing functions ensure continuous operation in high-reliability environments. The device enables Wi-Fi roaming between access points without the need for switching, making it ideal for dynamic industrial environments.

Properties

  • Support for 2.4 GHz Wi-Fi (IEEE 802.11b/g/n), transmission up to 300 Mbps
  • Wi-Fi operating modes: AP, STA, AP+STA, Bridge, Routing
  • Wi-Fi range up to 400 m in open space
  • Supported protocols: TCP/UDP, Modbus RTU, MQTT, HTTP, SNMP, PUSR Cloud, AWS, Alibaba Cloud
  • Interfaces:
  • 1×RS232 (DB9)
  • 1×RS485 (3-pin Phoenix)
  • 2×Ethernet (1×WAN/LAN, 1×LAN, 10/100 Mbps)
  • Power supply: DC 9–36 V, reverse polarity protection
  • Current consumption: average 155 mA, max. 270 mA (at 12 V)
  • Built-in watchdog, automatic recovery function
  • Wall or desktop mounting
  • Dimensions: 89 × 103.7 × 26 mm
  • Operating temperature: -25°C to +70°C
  • Metal IP30 housing, EMC class 3
  • Support for Wi-Fi roaming without connection interruption
  • LED indicators: power, system operation, WLAN status, RS232/RS485 data
  • Default LAN address: 192.168.1.1
  • Configuration via web interface

Included in the set

  • USR-W610s device
  • Wi-Fi antenna (5 dBi)
  • Power connector
  • Mounting accessories
