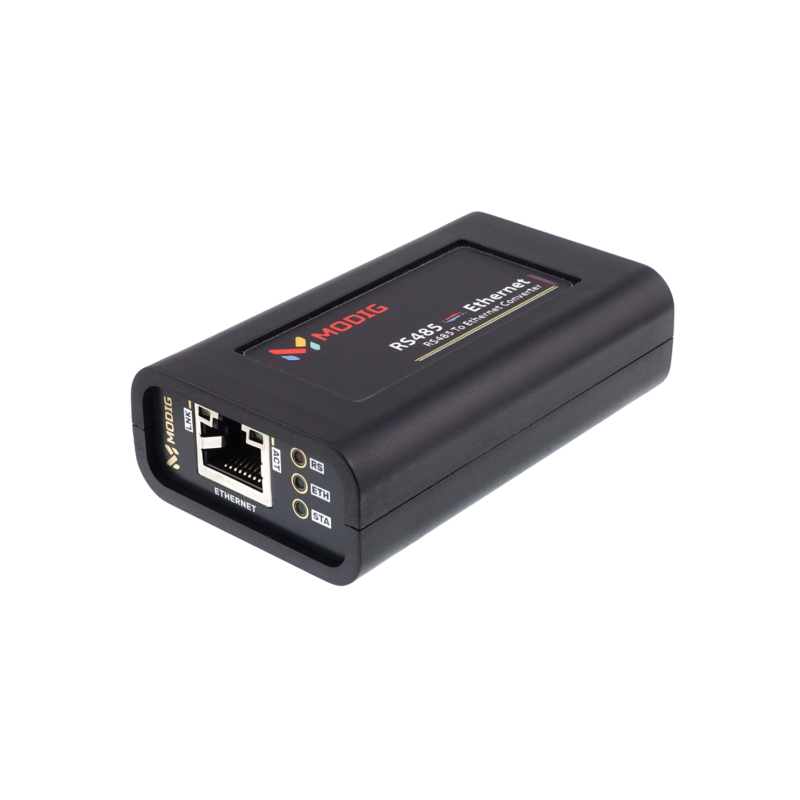

Miniature industrial RS485 to Ethernet converter designed for integrating RS485-based devices with Ethernet networks. The device supports RS485 communication up to 1 Mbps, TCP and UDP networking, 1 kV galvanic isolation, and configuration through a built-in web interface. Its compact enclosure allows installation as a permanent system component or use as a portable device. MODIG MD12001

24h
Available
Available quantity: 96

Description

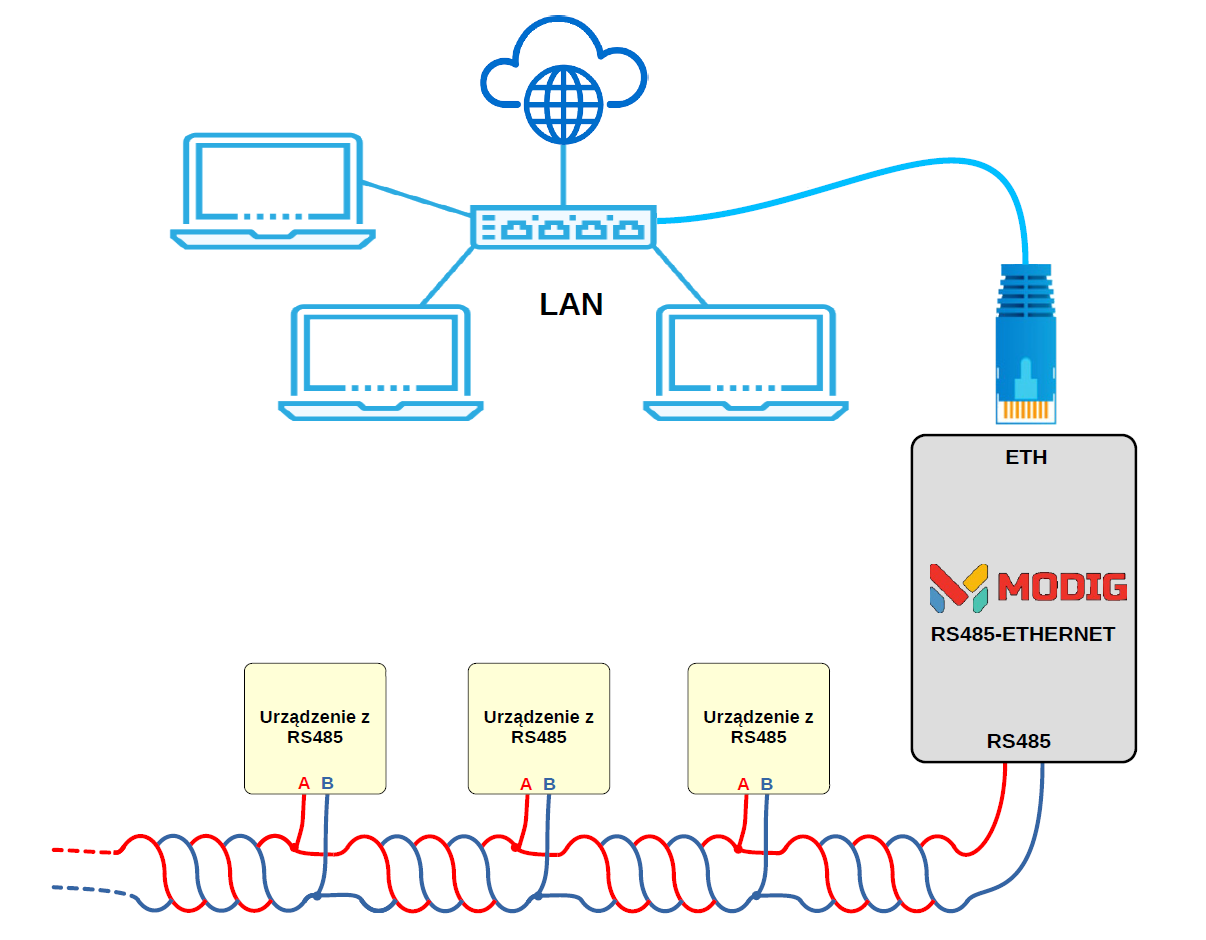

Industrial converter designed for bidirectional data transmission between an RS485 bus and an Ethernet network. The device enables integration of PLC controllers, telemetry equipment, measurement systems, building automation systems, and industrial devices using RS485 communication with Ethernet-based network infrastructure. Communication is provided through a 10/100 Mbps RJ45 interface with support for TCP and UDP protocols.


The RS485 interface features full 1 kV galvanic isolation, surge protection, and a configurable 120 Ω termination resistor. The device supports half-duplex communication at speeds ranging from 200 bps to 1 Mbps and allows connection of up to 64 devices on a single RS485 bus. An integrated data conversion mechanism enables transparent transmission of RS485 frames over Ethernet, including fragmentation support for larger data packets.

The converter is equipped with a USB-C port used for power supply, real-time diagnostics, and firmware updates. Configuration is performed through a password-protected web interface that allows network parameter setup, operating mode selection, and device monitoring. The compact design and small dimensions facilitate integration into existing industrial communication and automation systems.

Features

  • Industrial RS485 to Ethernet converter
  • 10/100 Mbps Ethernet interface
  • RJ45 port
  • IPv4 support
  • Static IP address or DHCP
  • Configurable MAC address
  • Operating modes: TCP Server, TCP Client, UDP, UDP Broadcast
  • RS485 interface on Phoenix Contact MC 3.81 mm connector
  • RS485 connections: A+, B-, GND, TERM
  • RS485 half-duplex communication
  • RS485 data rate from 200 bps to 1 Mbps
  • Supports up to 64 devices on the RS485 bus
  • 1 kV galvanic isolation
  • Surge protection for the RS485 interface
  • Configurable 120 Ω termination resistor
  • Maximum RS485 frame size: 4096 bytes
  • Configuration through built-in web interface
  • Real-time diagnostics via USB or web interface
  • Firmware updates via USB
  • USB-C port for power and diagnostics
  • Power supply: 5 V DC / 0.2 A
  • LED status and communication indicators
  • Operating temperature: -20°C to +50°C
  • Dimensions: 80 × 47 × 24 mm

Kit includes

  • MODIG RS485-ETHERNET Mini converter
  • USB-A to USB-C cable
  • Self-adhesive rubber feet (4 pcs.)
