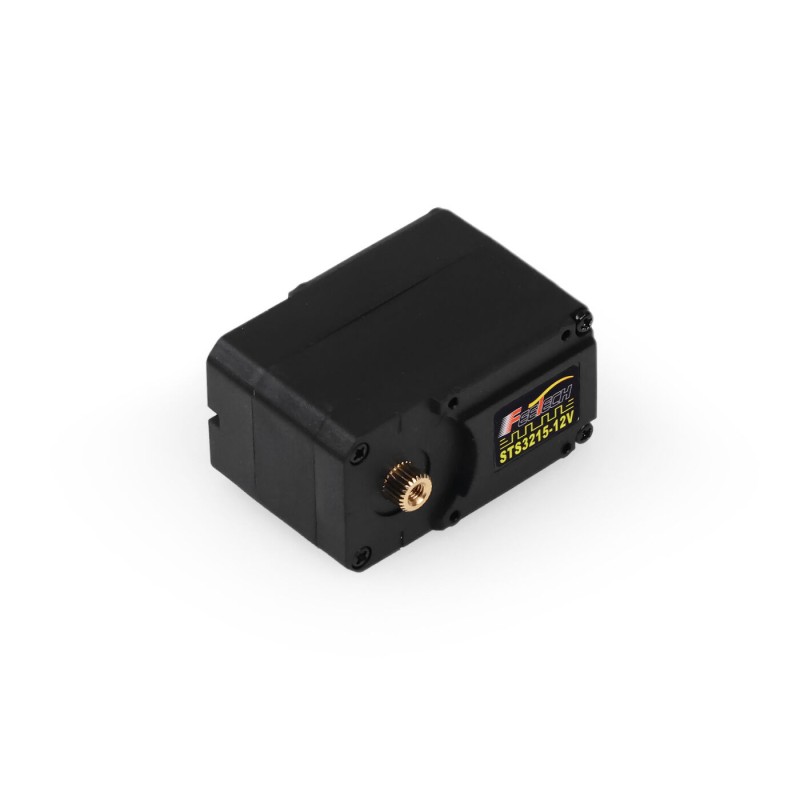

Servo 12V 30kg.cm - Feetech ST3215-C047
ID: 1203183
zł143.60
Tax included
zł116.75 tax excl.
Feetech TTL smart serial servo with 1:345 metal gearbox, 360° rotation support, 12-bit magnetic encoder, and 30kg.cm stall torque for robotics and automation applications. Seeed Studio 108090003
Description
Feetech ST3215-C047 servo designed for robotics, industrial automation, and drive systems requiring precise position and speed control. The servo uses a TTL serial interface and a 12-bit magnetic encoder providing 0.088° positioning resolution and multi-turn operation up to ±7 rotations.

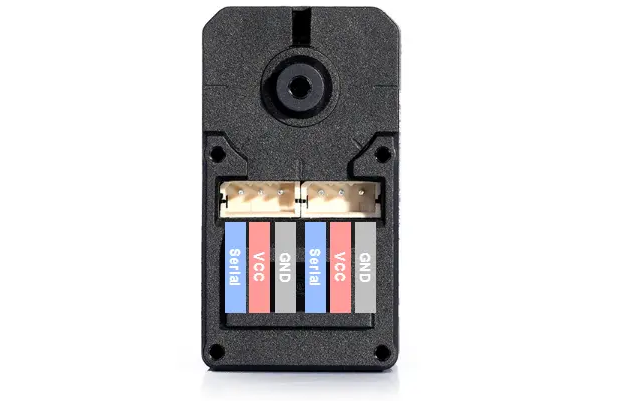

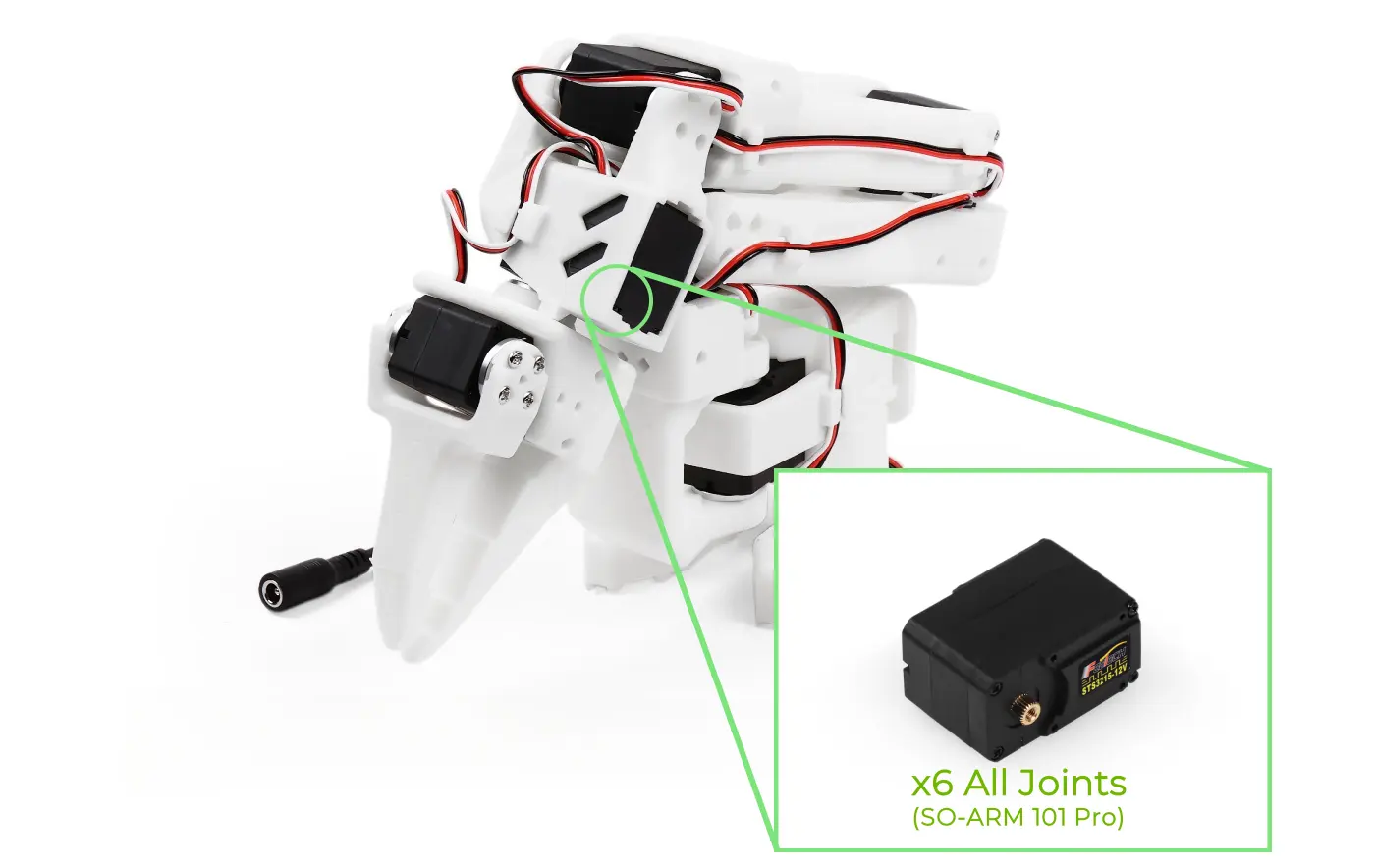

PinOut Servo used with the LeRobot SO-ARM101 robotic arm
The construction includes a 1:345 metal gearbox and a core motor. The servo supports 360° positioning, speed control mode, and step mode operation. The system provides real-time feedback including position, speed, voltage, current, temperature, and load. The model operates with a supply voltage range from 4 V to 14 V and delivers a 30kg.cm stall torque at 12 V. The construction is compatible with the LeRobot SO-ARM101 robotic arm and similar robotic systems.
Features
- Communication interface: TTL Serial
- Supply voltage: 4 - 14 V
- Nominal voltage: 12 V
- Stall torque: 30kg.cm
- Rated torque: 10kg.cm
- 1:345 metal gearbox
- 12-bit magnetic encoder
- Positioning resolution: 0.088°
- 360° rotation support
- Multi-turn mode: ±7 rotations
- No-load speed: 0.222 s/60°
- No-load current: 180 mA
- Rated current: 900 mA
- Stall current: 2.7 A
- Idle current: 30 mA
- Operating temperature: -10°C ~ 60°C
- Metal gearbox
- Ball bearings
- Housing material: PA + GF
- Gear material: Copper
- Cable length: 20 cm

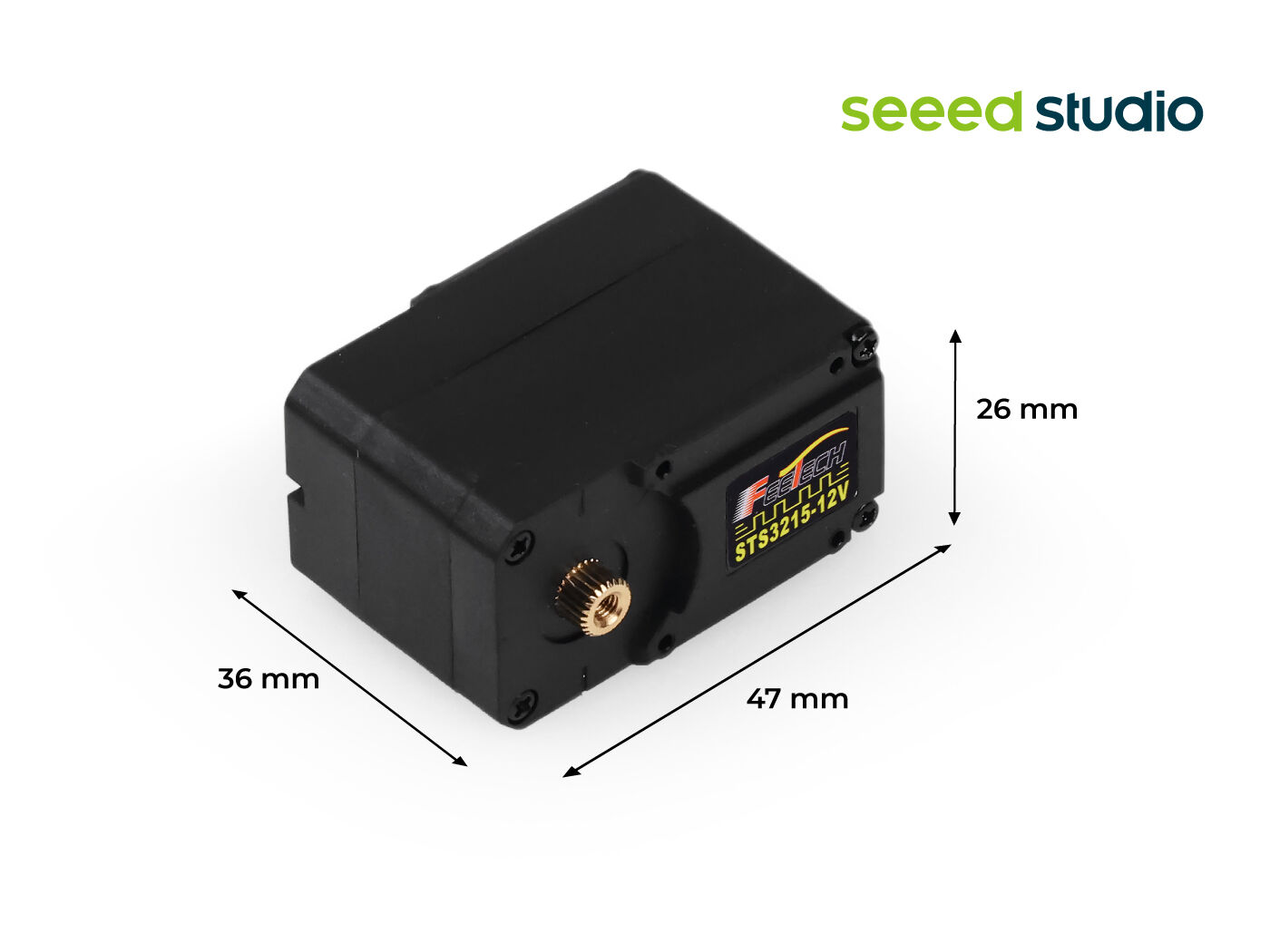

- Dimensions: 45.2 x 24.7 x 35 mm
- Weight: 55 g
Kit includes
- ST3215-C047 servo
- Servo horn x2
- Screw set x18
- JST wire x1
1203183
Data sheet
- Gear material
- Metal
- Torque
- 30 kg*cm
- Rozmiar serwa (seria)
- Standard
- Prędkość kątowa
- 0,222 s/60°
- Sprzężenie zwrotne
- Tak
- Praca ciągła 360°
- Tak
- Power supply voltage
- 4 - 14 V
- Weight
- 55 g
