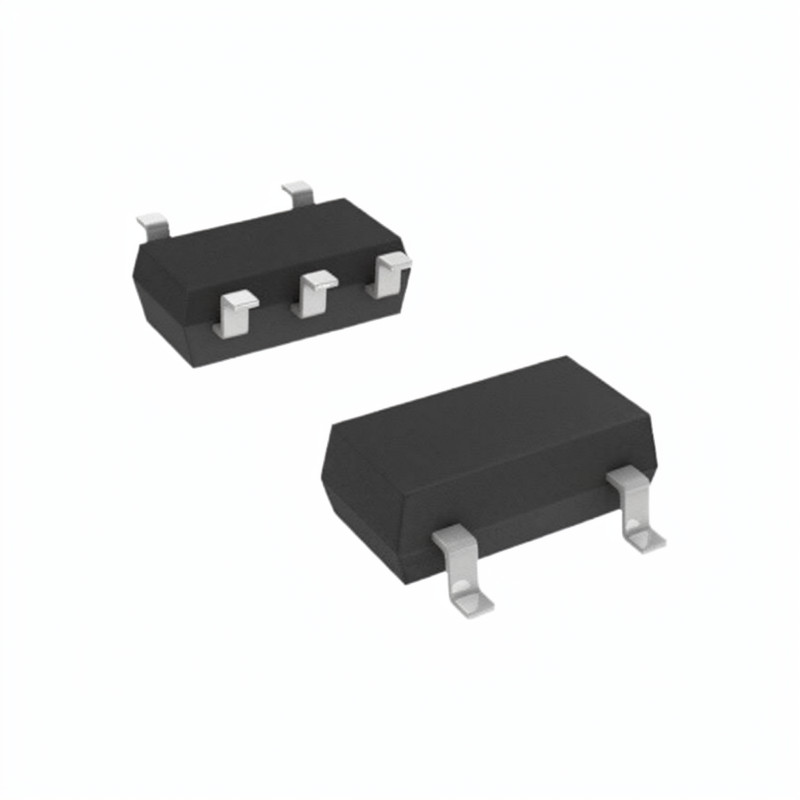

MC74VHC1GT08DFT2G (IC) - AND Logic Gate - 2 Inputs - SC-88A

Description

MC74VHC1GT08DFT2G integrated circuit (IC) contains a single 2-input AND logic gate with TTL-level input thresholds, designed for surface mounting in a compact SC-88A package. The IC operates from a 2.0 V to 5.5 V supply, while its inputs tolerate voltages up to 5.5 V regardless of VCC, allowing it to interface 5 V circuits with 3 V circuits. The typical propagation delay is 3.5 ns at 5 V, while the IOFF function provides partial power-down protection. The IC can be used in digital control circuits, logic interfaces and circuits requiring an AND logic function.

Features

• Part number: MC74VHC1GT08DFT2G
• IC type: AND logic gate
• Number of gates: 1
• Number of inputs: 2
• Input levels: TTL
• Logic family: VHC
• Supply voltage: 2.0 V to 5.5 V DC
• Maximum input voltage during operation: 5.5 V
• Typical propagation delay: 3.5 ns at 5 V
• Output source/sink current: 8 mA at 3.0 V
• IOFF function: yes
• Operating temperature range: -55°C to +125°C
• Mounting: SMD
• Package: SC-88A
• Number of pins: 5
