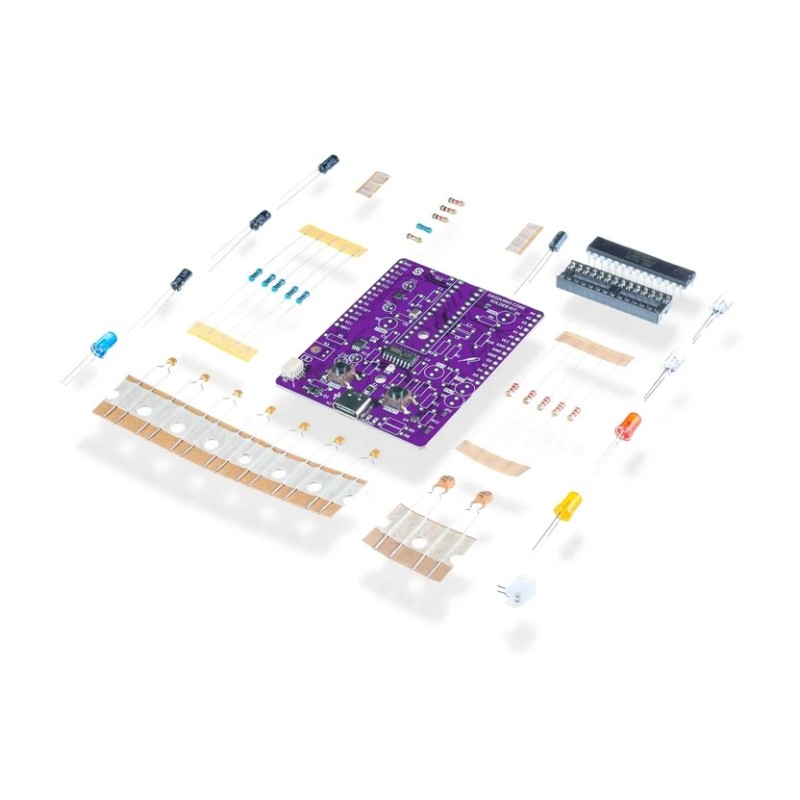

Angled kit view
search
  • Angled kit view
  • Main view
  • Angled view
  • View from top
  • View from back
ID: 1208306
zł61.99
Tax included

zł50.40 tax excl.

Educational soldering kit for building a functional ATmega328P-based microcontroller board. The SMD components are factory pre-soldered, while the included THT components, LEDs, JST connector, IC socket and microcontroller are assembled by the user. Soldered 333200

24h
Available
Available quantity: 3

Description

The device Make Your Own Dasduino Solder Kit by Soldered is an educational kit designed for learning soldering and electronic component assembly. Once properly assembled, it becomes a functional ATmega328P-based microcontroller board that can be used for further electronics and programming projects.

All SMD components are factory pre-soldered, allowing the user to focus on assembling the through-hole THT components. Components to be soldered include resistors, capacitors, five LEDs, a JST battery connector and a microcontroller socket. The THT socket makes it easy to install the included ATmega328P and allows the microcontroller to be replaced if necessary.

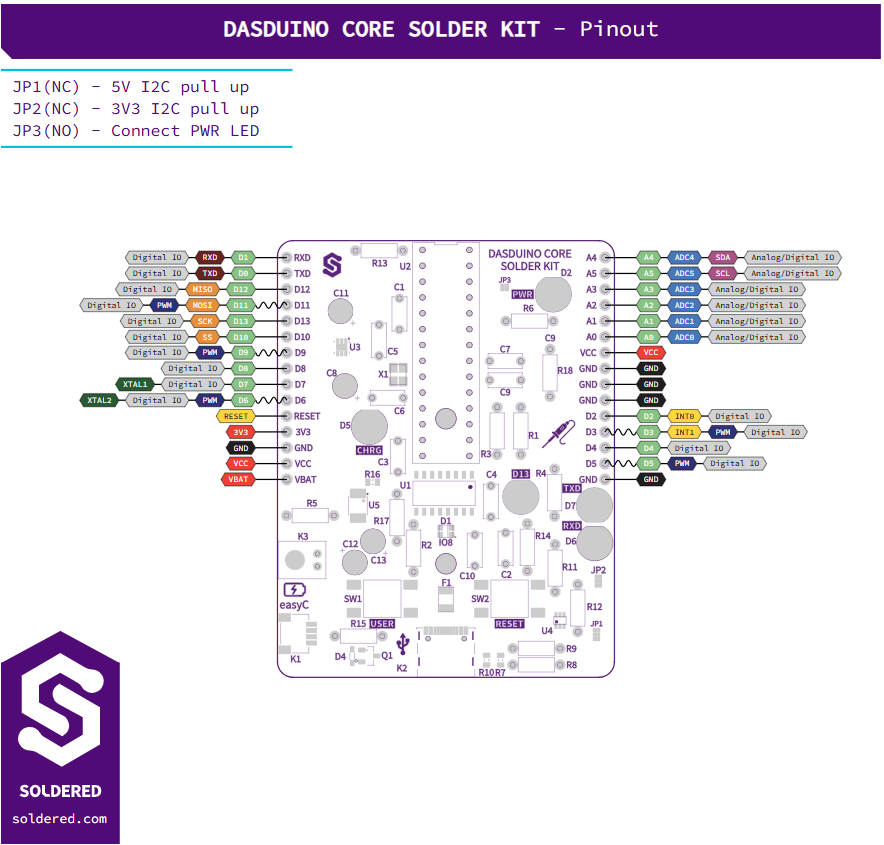

Soldered Make Your Own Dasduino Solder Kit - pinout and component layout

Soldered also provides a detailed step-by-step assembly guide covering component identification, component values and correct placement on the PCB. The design is open source, and after assembly the kit functions as a complete ATmega328P-based microcontroller board.

Features

  • Purpose
    • Educational soldering kit
    • Creates a functional microcontroller board after assembly
    • Microcontroller: ATmega328P
    • SMD components factory pre-soldered
    • Through-hole THT components assembled by the user
    • THT socket allows the microcontroller to be replaced
  • Components for assembly
    • Through-hole resistors in several values
    • Through-hole capacitors
    • 5 × LEDs in different colors
    • JST battery connector
    • ATmega328P socket
    • ATmega328P microcontroller
  • Documentation
    • Full product documentation available
    • Step-by-step assembly guide available
    • Open-source design
  • Additional information
    • Manufacturer: Soldered Electronics
    • Product code: 333200

Kit includes

  • 1 × PCB
  • 7 × 100nF capacitor
  • 4 × 2.2µF capacitor
  • 2 × 22pF capacitor
  • 5 × 2.2kΩ resistor
  • 5 × 10kΩ resistor
  • 3 × 1kΩ resistor
  • 1 × 100kΩ resistor
  • 1 × 100Ω resistor
  • 1 × JST battery connector
  • 1 × purple LED
  • 1 × white LED
  • 1 × blue LED
  • 1 × red LED
  • 1 × orange LED
  • 1 × ATmega328P socket
  • 1 × ATmega328P microcontroller
