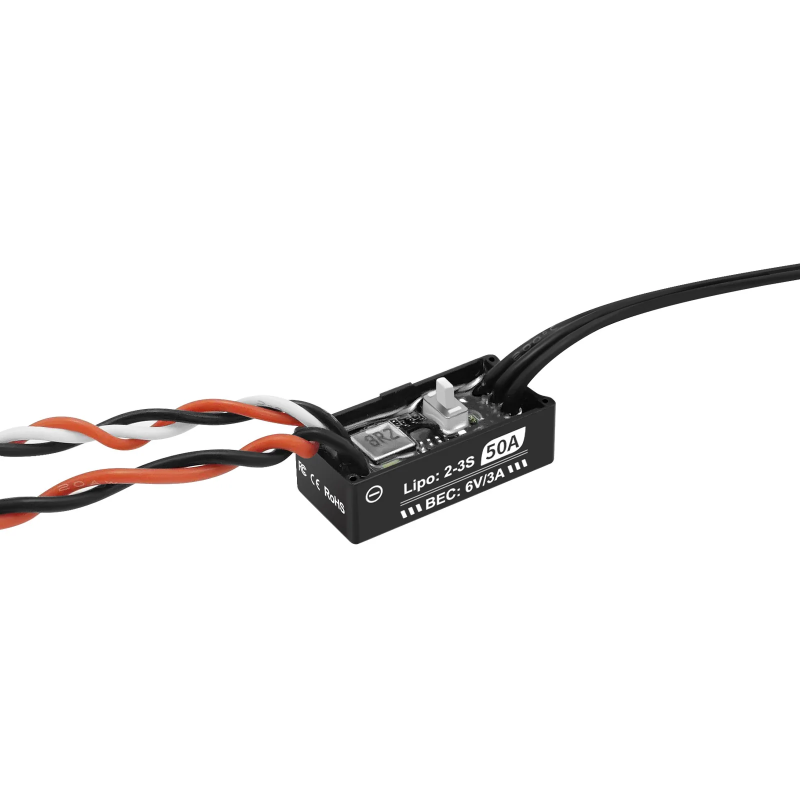

SEQURE ANT ESC - ESC 50A 2-3S controller
ID: 1205240
zł125.98
Tax included
zł102.42 tax excl.
Designed for small RC crawlers in 1/24–1/12 scale, this speed controller offers high performance and precise motor control. The device runs on ESCape32 firmware and supports DShot, PWM, Oneshot, and Multishot protocols, ensuring quick response and smooth power control. Maximum current is 50A continuous and 100A burst, and a built-in 6V/3A BEC powers the onboard electronics and servos. SEQURE ANT ESC 50A 2-3S
Description
SEQURE ANT ESC is a compact electronic speed controller designed for small RC crawler vehicles in 1/24, 1/18, 1/16, and 1/12 scales. The device is part of the SEQURE drive system and offers high performance in a very small footprint, ensuring it does not negatively affect the model’s balance or center of gravity. The design is protected by PCB potting with resin and an aluminum heatsink, providing water and dust resistance as well as improved cooling performance. The ESC delivers stable and precise motor control, which is essential for off-road vehicles requiring smooth power modulation.
The unit is equipped with a microcontroller running ESCape32 firmware, supporting modern control protocols such as DShot, PWM, Oneshot, and Multishot. This ensures very fast response to control signals and high motor control precision. The maximum continuous current is 50 A with adequate cooling, while peak current reaches 100 A, allowing operation in demanding off-road conditions. A built-in 6V / 3A BEC provides stable power for servos and onboard electronics. Additionally, the ESC features an electronic power switch, eliminating mechanical wear and improving system reliability.
SEQURE ANT ESC also offers configurable operating parameters via computer or mobile device, allowing adjustment of motor timing, braking, throttle response, and voltage and temperature protection settings. The compact design measuring 32 × 15 × 11 mm and weighing 16.5 g makes installation in small RC models easy. Thanks to plug & play functionality and included cables, installation is quick and convenient. This is an ideal solution for users seeking a modern, lightweight, and configurable ESC for precision crawler models.
Features
- Model: SEQURE ANT ESC
- Firmware: ESCape32
- Input voltage: DC 7–13 V (2–3S LiPo)
- Continuous current: 50 A
- Peak current: 100 A
- Supported protocols: DShot (all), PWM, Oneshot, Multishot
- Programmable parameters
- Current sensing
- RGB LED
- BEC: 6 V / 3 A (continuous)
- Electronic power switch: one-button start/stop
- Power cable: 105 mm, motor cable: 70 mm, signal cable: 130 mm
- Application: RC models 1/12, 1/16, 1/18, 1/24
- Dimensions: 32 × 15 × 11 mm
- Weight: 16.5 g
Kit contains
- SEQURE ANT ESC
- PH2.0 - JST cable
- PH2.0 - MX2.0 cable
- 3M double-sided tape
- 2 × cable ties
