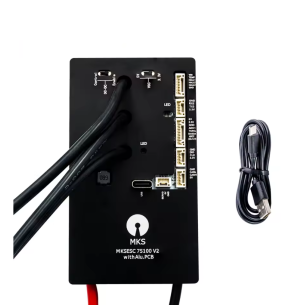

Makerbase VESC 75100 - BLDC motor ESC controller 4-20S, 100A
ID: 1187445
5902186317253
zł534.58
Tax included
zł434.62 tax excl.
A speed controller based on the open VESC standard, designed for electric skateboards, scooters, and e-bikes. It supports voltages from 14 to 75 V and continuous currents up to 100 A, offering various BLDC motor control modes, and a wide range of interfaces (PPM, UART, I2C, USB-C, CAN). Its compact design and extensive security features ensure reliability, flexible configuration, and convenient integration with computers and smartphones. Makerbase VESC 75100
Description
The Makerbase VESC 75100 V2 is an advanced speed controller based on the open-source VESC standard, designed for electric skateboards, scooters, and e-bikes. It operates in a wide voltage range from 14 V to 75 V (4S–20S) and can deliver up to 100 A continuous current and 120 A peak current, ensuring sufficient power for both recreational and high-demand applications. Built with high-quality components, including the ARM Cortex-M4 STM32F405RG processor and MDP10N027TH MOSFETs, the controller guarantees stable and reliable performance under all conditions.
The controller supports 3-phase BLDC motors and multiple control modes: duty cycle, speed, and current, giving users full flexibility to adapt settings to their needs. It operates in both sensored and sensorless modes, supporting ABI encoders, HALL sensors, and AS5047. A wide range of communication interfaces is available, including PPM, UART, I²C, USB, and CAN bus, making system integration simple and versatile.
A built-in micro USB port allows quick connection to a PC for configuration through the VESC Tool software. With UART interface and Bluetooth module compatibility, users can also monitor and adjust parameters in real time via an Android smartphone. Advanced protection strategies, such as soft current limiting and gradual speed reduction when limits are reached, further enhance safety. Thanks to its compact size and aluminum PCB, the controller is lightweight, thermally efficient, and easy to install. It is an ideal choice for electric vehicle enthusiasts seeking high performance, reliability, and extensive configuration options in a compact form factor.
Features
- Model: MKSESC 75100
- Microcontroller: ARM Cortex-M4 STM32F405RGT6 with FPU
- MOSFET: MDP10N027TH
- Supply voltage: 14 V to 75 V (4S–20S)
- Continuous current: 100 A
- Peak current: 120 A
- Supported motor: 3-phase BLDC
- Max motor speed: up to 150,000 ERPM
- Power wires: 12 AWG
- Motor wires: 12 AWG
- Supported sensors: ABI, HALL, AS5047, sensorless mode
- Communication interfaces: PPM, Analog (ADC), UART, I²C, USB, CAN
- Control modes: duty cycle, speed, current
- Configuration port: USB Type-C, compatible with VESC Tool
- Dimensions: 85.3 × 52 × 38 mm
Kit contains
- Makerbase MKSESC 75100 controller
- Micro USB cable
- User manual
