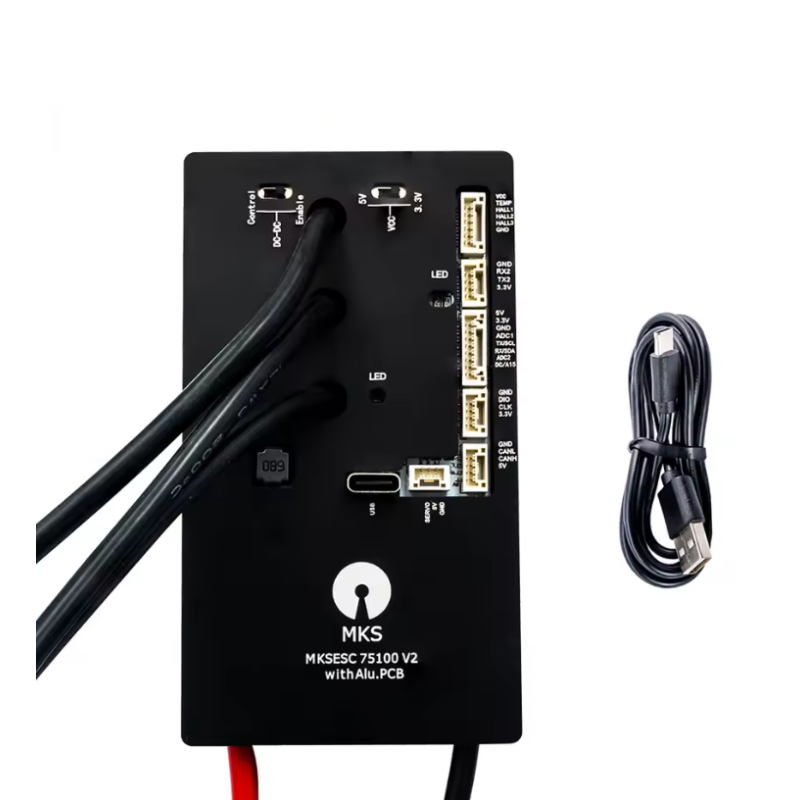

Makerbase VESC 75100 V2 - VESC 84V 100A Speed Controller
ID: 1200151
5902186325005
zł561.62
Tax included
zł456.60 tax excl.
A speed controller based on the open VESC standard, designed for skateboards, scooters, and e-bikes. It supports voltages from 14 to 84 V (4S–20S) and continuous currents up to 100 A, offering various BLDC motor control modes and a wide range of interfaces (PPM, UART, I2C, USB-C, CAN). Its compact design, aluminum PCB, and extensive safety features ensure reliability, flexible configuration, and convenient integration with computers and smartphones. Makerbase VESC 75100 V2
Description
Makerbase VESC 75100 V2 is an advanced speed controller based on the open VESC standard, designed for electric skateboards, scooters, and e-bikes. The device operates within a wide voltage range of 14 V to 84 V (4S–20S) and can deliver continuous current up to 100 A, with peak current reaching 120 A, ensuring sufficient power for both recreational and heavy-duty vehicles. Thanks to high-quality components, including the ARM Cortex-M4 STM32F405RG processor and HYG015N10NS1TA MOSFETs, the controller guarantees stable and reliable performance in all conditions.
The controller supports 3-phase BLDC motors and multiple control modes: duty cycle, speed, and current, giving the user full flexibility in adjusting settings to their needs. It works in both sensored and sensorless modes, supporting ABI encoders, HALL sensors, and AS5047. In addition, it offers a wide range of communication interfaces, including PPM, UART, I2C, USB, and CAN bus, enabling seamless integration with different control systems.
The built-in USB Type-C port allows quick connection to a computer and configuration via VESC Tool. With the UART interface and compatibility with Bluetooth modules, real-time monitoring and parameter adjustments can also be performed from an Android smartphone. The device also provides advanced protection strategies such as soft current limiting and gradual speed reduction upon reaching thresholds, increasing operational safety. Thanks to its compact dimensions and aluminum PCB design, the controller is lightweight, thermally efficient, and easy to mount. It is an ideal solution for electric vehicle enthusiasts who expect high performance, reliability, and extensive configuration options in a compact form factor.
Features
- Model: MKSESC 75100 V2
- Microcontroller: ARM Cortex-M4 STM32F405RGT6 with FPU
- MOSFET: HYG015N10NS1TA
- Input voltage: 14 V to 84 V (4S–20S)
- Continuous current: 100 A
- Peak current: 120 A
- Supported motor: 3-phase BLDC
- Max. rotational speed: up to 150,000 ERPM
- Power wires: 12 AWG
- Motor wires: 12 AWG
- Supported sensors: ABI, HALL, AS5047, sensorless mode

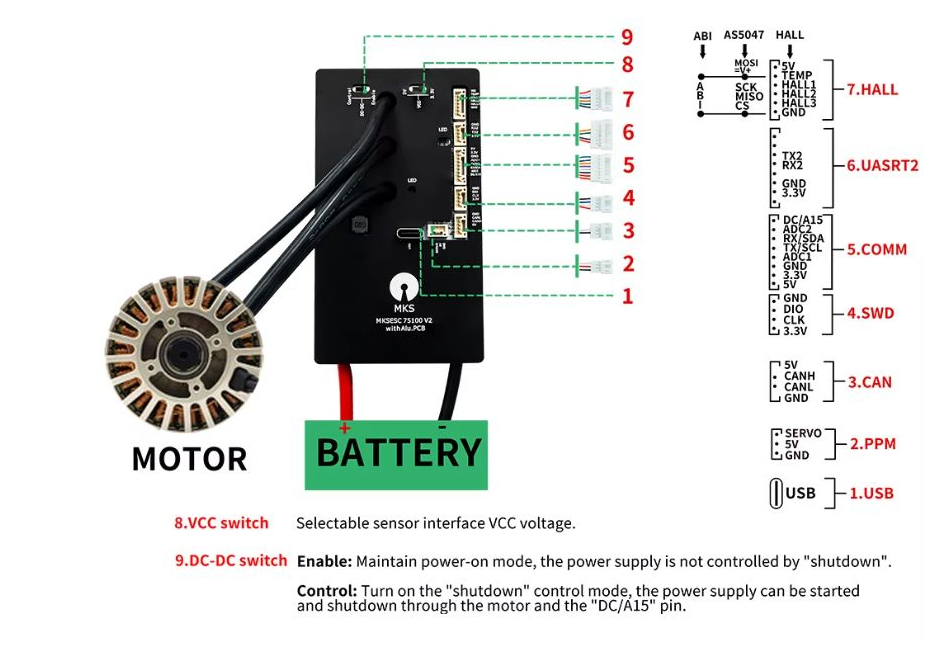

- Communication interfaces: PPM, Analog (ADC), UART, I2C, USB, CAN
- Control modes: duty cycle, speed, current
- Configuration port: USB Type-C, compatible with VESC Tool
- Dimensions: 103 × 58 × 18.5 mm
Kit contains
- Makerbase MKSESC 75100 V2 controller
- USB Type-C cable
- User manual
1200151
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
