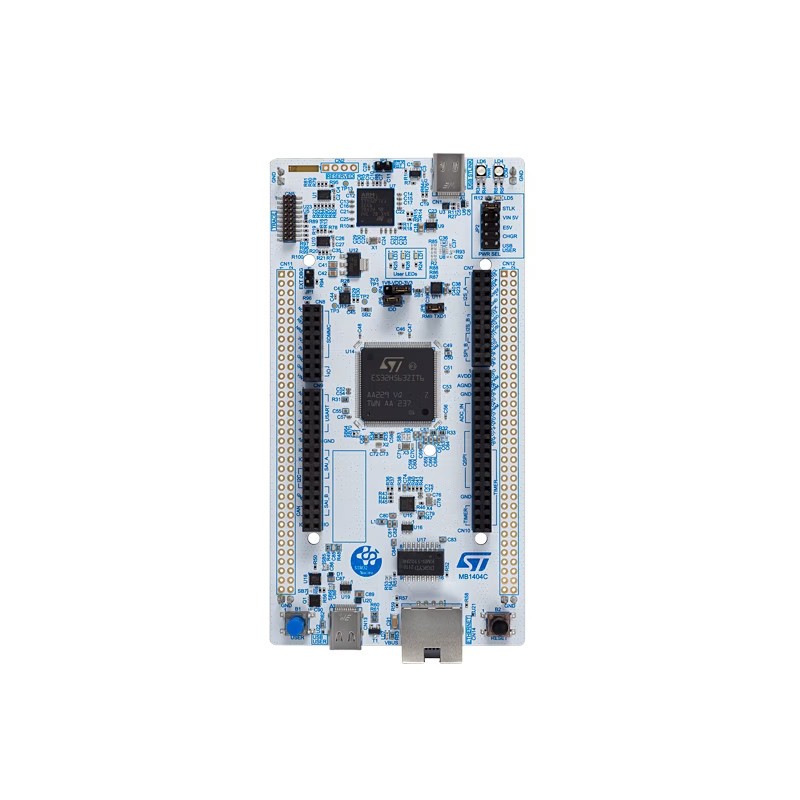

NUCLEO-H563ZI - starter kit with STM32 family microcontroller (STM32H563ZI)
search
  • NUCLEO-H563ZI - starter kit with STM32 family microcontroller (STM32H563ZI)
ID: 1184890
5906623476459
zł154.07
Tax included

zł125.26 tax excl.

NUCLEO series starter kit featuring STM32H563ZIT6 microcontroller (2 MB Flash, Cortex-M33), with built-in STLINK-V3EC programmer-debugger, equipped with Arduino-compatible connectors. STMicroelectronics NUCLEO-H563ZI

24h
Available
Available quantity: 2


Free shipping

free shipping in Poland for all orders over 500 PLN



Same day shipping

If your payment will be credited to our account by 11:00



14 days for return

Each consumer can return the purchased goods within 14 days

Description

The NUCLEO-H563ZI (STM32 Nucleo-144) set is equipped with the STM32H563ZIT6 microcontroller in the LQFP144 housing. Built-in programmer/debugger allows for quick and easy programming and testing of the system. It can work as a standalone programmer, when disconnected by jumpers. Flexible power supply allows for convenient use of the development board in the tested application.

Two types of connectors: ST Zio (containing the Arduino Uno V3 connector) and ST morpho (all GPIO pins of the microcontroller) provide access to each of the microcontroller components and do not exclude the possibility of using Arduino compatible shields for cooperation with STM32 Nucleo-144.

Features

  • STM32H563ZIT6 microcontroller in LQFP144 housing
  • 3 x general purpose LED
  • 2 x General purpose button + RESET button
  • LSE quartz generator: 32.768 kHz
  • Expansion connectors:
    • ST Zio (containing Arduino Uno V3 connector)
    • ST Morpho
  • Possibility to power via USB or from an external power supply (3.3V, 5V, 7-12V)
  • Integrated STLINK-V3EC (SWD) programmer / debugger with the possibility of using it to work with external systems
  • Ethernet
  • Board connectors:
    • USB type C with SNK/UFP (FS mode)
  • The USB interface can work in one of the three modes:
    • Virtual COM port (Virtual COM)
    • Mass storage
    • Debug port
  • Full compatibility with comprehensive HAL libraries containing many examples of the use of microcontroller peripherals and STMicroelectronics circuits
  • A wide range of development software such as IAR, Keil, GCC-based IDEs is supported

1184890

Data sheet

Microcontroller
STM32H563ZI
Flash memory
2 MB
Number of I/O
140
Ethernet
1000Mb x1
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
133,3 mm
Width
70 mm
USB connector type
USB type C
