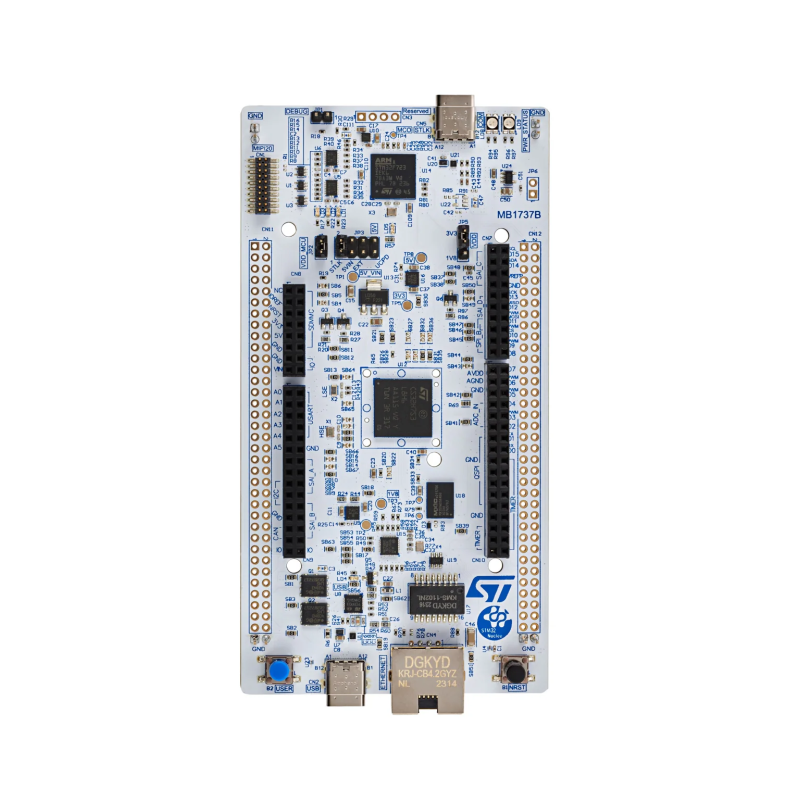

NUCLEO-H7S3L8 – development board with STM32H7S3L8 microcontroller
search
  • NUCLEO-H7S3L8 – development board with STM32H7S3L8 microcontroller
ID: 1198379
5902186305342
zł163.89
Tax included

zł133.24 tax excl.

NUCLEO-H7S3L8 is an advanced development board featuring the STM32H7S3L8 microcontroller (Cortex-M7), offering high computational performance, large memory capacity, and extensive communication capabilities through USB and Ethernet interfaces. The integrated ST-LINK debugger and broad support for development tools make it a versatile solution for embedded system designers and IoT applications.

24h
Available
Available quantity: 5

Description

Development platform from the Nucleo-144 series based on the STM32H7S3L8 microcontroller featuring an ARM Cortex-M7 core running up to 500 MHz. It enables rapid prototyping for embedded, communication, and IoT applications. Equipped with 256 MB external Octo-SPI NOR flash and an integrated ST-LINK/V3EC debugger, it allows direct programming and debugging without the need for additional interfaces. The board includes ST morpho and ST Zio (Arduino Uno V3–compatible) expansion headers, as well as USB and Ethernet interfaces, facilitating peripheral integration. Compatible with STM32CubeIDE, IAR, and MDK-ARM development tools.

Features

  • Microcontroller: STM32H7S3L8 with ARM Cortex-M7 core (up to 500 MHz)
  • External memory: 256 MB Octo-SPI NOR flash
  • Internal memory: 64 KB Flash, 640 KB SRAM, 4 KB backup SRAM
  • Integrated ST-LINK/V3EC programmer/debugger: debug, mass storage, Virtual COM
  • Connectors: ST morpho, ST Zio (Arduino Uno V3–compatible), RJ45 Ethernet, USB OTG (micro-USB or USB-C)
  • 32.768 kHz oscillator
  • User interface: 3 user LEDs, 1 user button, 1 reset button
  • Power supply options: USB, ST-LINK USB VBUS, external sources
  • Operating temperature: 0 °C to +70 °C
  • IDE support: STM32CubeIDE, IAR Embedded Workbench, MDK-ARM
  • Compatible with STM32Cube libraries
  • Mounting style: standard Nucleo-144 form factor
1198379

Data sheet

Microcontroller
STM32H7S3L8
Flash memory
64kB
Number of I/O
152
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
Inny
Width
Inna
USB connector type
USB type C
