X-NUCLEO-IHM13A1 - module with DC motor controller
ID: 574609
5906623410453
zł95.96
Tax included
zł78.02 tax excl.
DC motor controller powered with a voltage in the range of 1.8 to 10V with a maximum output current of 2.6A. Compatible with STM32 Nucleo. Shield is equipped with a connector compatible with the Arduino UNO R3 standard. STMicroelectronics X-NUCLEO-IHM13A1
Description
X-NUCLEO-IHM13A1 is a controller DC brush motor for STM32 Nucleo boards. Powered with a voltage in the range of 1.8 to 10 V with a maximum output current of 2.6 A. Shield is based on the STSPIN250 chip. Ideally suited for use in battery-powered devices (robots, toys). Shield is equipped with a connector compatible with the Arduino UNO R3 standard.
Features
- Supply voltage 1.8-10 V
- Current up to 2.6 A rms
- Overload and short circuit protection
- Thermal protection
- Shield compatible with STM32 Nucleo family plates
- Connectors compatible with Arduino UNO R3
- ST morpho connectors
- RoHS
574609
Data sheet
- Output current
- 2,6 V
- Number of channels
- 1
- Supply voltage min
- 1,8 V
- Supply voltages max
- 10 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Arduino Uno Rev3 is a popular board with Atmel ATmega328 microcontroller from the AVR family, there are 14 I / O lines, 6 PWM channels and 6 analog inputs. The additional ATmega16U4 microcontroller realizes communication via the USB interface. Arduino A000066
zł108.42
24h
Available quantity: 57
Available

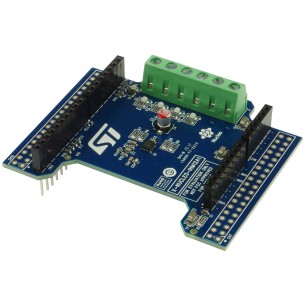

The X-NUCLEO-IHM12A1 is a low voltage dual brush DC motor driver expansion board based on the STSPIN240 for STM32 Nucleo. It provides an affordable and easy-to-use solution for the implementation of portable motor driving applications such as thermal printers, robotics and toys
