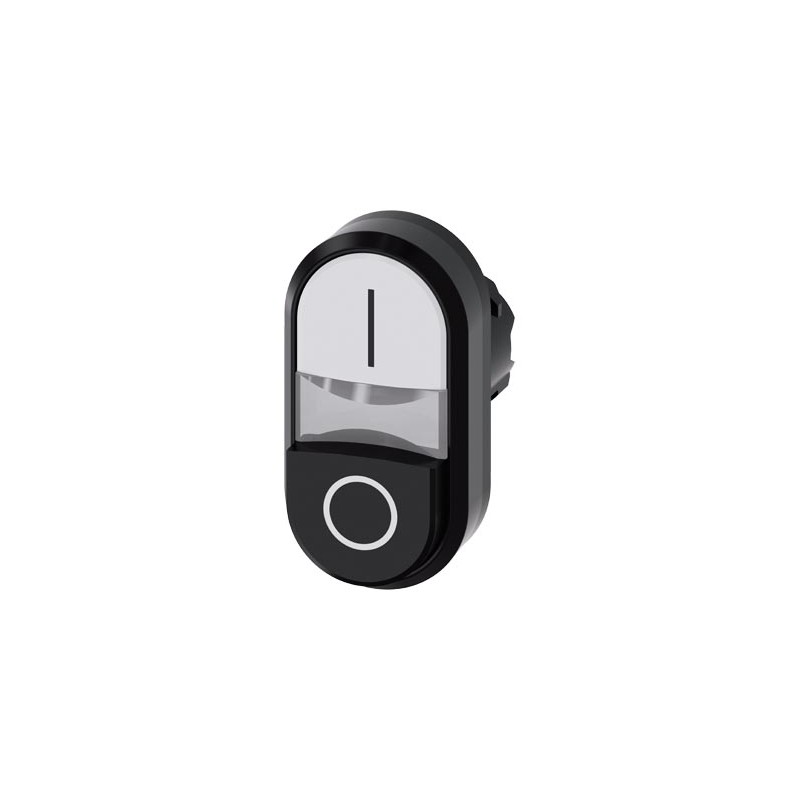

Siemens 3SU1001-3BB61-0AK0 illuminated double button
ID: 1200264
zł31.14
Tax included
zł25.32 tax excl.
This SIRIUS ACT series illuminated double pushbutton is designed for industrial control panels. Its rugged plastic construction, IP69K protection, and compact dimensions enable installation in applications requiring durability and reliability. Siemens 3SU1001-3BB61-0AK0
Description
This SIRIUS ACT series actuator has a mounting diameter of 22 mm and is designed for control panels and industrial applications requiring two separate pushbuttons in a single housing. The 3SU1001-3BB61-0AK0 model features a flat white pushbutton marked "I" and a raised black pushbutton marked "O," both of which can be illuminated. The body and front bezel are made of durable black plastic. The device is designed for short-term operation (momentary contacts). The pushbutton meets IP66, IP67, and IP69K standards, ensuring high resistance to dust, water, and pressure cleaning, even in marine and rail applications. It is designed for operation in a wide operating temperature range from -25°C to +70°C. It is mounted in a 22.3 mm diameter hole with a positive tolerance of 0.4 mm.
Suitable for use in machine consoles, control panels, and automation systems where single-element control of "start" and "stop" functions or other on/off functions is required.
Features
- Series: SIRIUS ACT
- Manufacturer's code: 3SU1001-3BB61-0AK0
- Element type: Double pushbutton, illuminated
- Button color: White ("I") and black ("O")
- Button shape: Oval
- Button type: Momentary
- Protection rating: IP66, IP67, IP69 (IP69K)
- Vibration resistance: 10…500 Hz, 5g (EN 61373, Cat. 1 Class B)
- Shock resistance: 15g / 11 ms (IEC 60068-2-27)
- Mechanical life: 2,000,000 cycles
- Operating temperature: -25°C to +70°C
- Material: Plastic
- Compliant with marine and railway standards
- Mounting diameter: 22.3 mm (+0.4 mm)
- Dimensions: 57.9 × 29.9 mm, mounting depth 25.5 mm
- Weight: 25 g
1200264
Manufacturer SIEMENS SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Żupnicza 11 03-821 Warszawa Poland reklamacje.ebok.pl@siemens.com
Responsible person SIEMENS SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Żupnicza 11 03-821 Warszawa Poland reklamacje.ebok.pl@siemens.com
