15.6" QLED HDMI touch-panel monitor (15.6 inch QLED Monitor) - Waveshare 24761
ID: 1185387
5906623427666
zł1,068.69
Tax included
zł868.85 tax excl.
A 15.6" QLED display with touch panel. It is equipped with a mini HDMI interface for video display and USB Type C for the touchscreen. It offers a resolution of 1920 x 1080 pixels. Waveshare 15.6inch QLED Monitor (EU)
Description
A 15.6" QLED display with touch panel. It is equipped with a mini HDMI interface for video display and USB Type C for touchscreen operation. It offers a resolution of 1920 x 1080 pixels. It has a 3.5mm jack and 4-pin audio connector and built-in HiFi speakers. The display has a brightness and contrast adjustment function, and the touch panel is made with optical bonding technology for improved readability in high humidity outdoor environments. It uses the latest Quantum Dot technology, which supports an extended colour gamut and significantly improves the quality of the displayed content. It works with Raspberry Pi, Jetson Nano minicomputers, PCs and Xbox360, PS4 and Switch consoles. The display has support for a wide range of operating systems: from Raspberry Pi OS, Ubuntu, Kali, WIN10 IoT for Raspberry Pi to Windows 10, 8.1, 8, 7 for PC. Full documentation is available on the product page.
Features
- Diagonal: 15.6"
- Resolution: 1920 x 1080 px
- Matrix type: QLED
- Video connector: mini HDMI
- Wide 178° viewing angle
- Capacitive touchscreen (10-point)
- Touchscreen interface: USB Type C
- Tempered glass panel
- Contrast and brightness adjustment
- Audio output: 3.5 mm jack socket, 4-pin connector
- Built-in HiFi speakers
- Aluminium housing
- QLED Quantum Dot backlighting
- Optical bonding technology
- Works with Raspberry Pi (all versions), Jetson Nano, PC
- Dimensions: 370.5 x 232.5 x 12 mm
Kit contains
- 15.6inch QLED Monitor display
- Mini HDMI to HDMI cable 1m
- USB type A to USB type C cable 1m
- HDMI to micro HDMI adapter
- Stand
- Power supply 12V 1A
1185387
Data sheet
- Screen type
- QLED IPS
- Diagonal (inch)
- 15,6
- Resolution
- 1920 x 1080 px
- Interface
- HDMI
- Touch
- Yes
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
The latest version of the Raspberry Pi series: Raspberry Pi 4 model B with quad-core SoC (Broadcom BCM2711, Cortex-A72) working at 1.8GHz, 2GB RAM LPDDR4, Broadcom VideoCore VI.
zł220.90
Delivery date unknown
No product available!
Jetson Nano Dev Kit with ARM Cortex-A57 1.43 GHz CPU, 4 GB RAM and NVIDIA Maxwell GPU - Waveshare...
NVIDIA development kit with the ARM Cortex A57 1.43GHz CPU system and the Maxwell graphics system consisting of 128 cores supporting CUDA technology. The module has 4GB DDR4 RAM, 16GB eMMC and an attached 32GB USB memory and 64GB microSD card. Waveshare JETSON-NANO-DEV-KIT
zł1,055.36
24h
Available quantity: 1
Available
Other products in the same category (16)
Module with a touch screen TFT LCD with a diagonal of 7" and a resolution of 800x480 pixels. It uses a 24-bit parallel interface for displaying the image and I2C for the touch panel. Waveshare 7inch Capacitive Touch LCD (G)
zł188.58
24h
Available quantity: 2
Available
7" LCD display with capacitive touch screen. The display is equipped with HDMI interface for image display and USB for touch screen. It has a resolution of 1024x600 pixels. DFRobot DFR0506
zł372.71
24h
Available quantity: 2
Available
IPS 3.5" LCD display with touch screen. The display is equipped with a DPI interface for image display and I2C interface for a touch panel. Resolution 640x480 pixels. Waveshare 3.5inch DPI LCD
zł134.27
24h
Available quantity: 3
Available
Waveshare 8inch USB Monitor W (gray) is a functional and elegant auxiliary screen for PC, offering system visualizations, audio analysis, and dynamic backgrounds. With single-cable USB connectivity and a CNC aluminum housing, it serves as an aesthetic extension of a workstation, gaming setup, or control center.
zł257.11
24h
Available quantity: 2
Available
An 8" IPS LCD display with touch panel. It is equipped with an HDMI/USB type C interface for video display and USB type C for touchscreen. It offers a resolution of 1280x800 pixels and has an aluminium casing. Waveshare 8HP-CAPLCD Monitor
zł486.39
24h
Available quantity: 3
Available
Module with LCD TFT display with a diagonal of 1.8" and a resolution of 160x128 px, equipped with a microSD slot. Communication via the SPI interface. SparkFun LCD-15143
zł186.96
24h
Available quantity: 1
Available
8" TFT LCD display with a touch panel dedicated to Odroid-M1 minicomputers. Equipped with MIPI-DSI interface. It has a resolution of 1280x800 pixels. ODROID-Vu8M
Regular pricezł553.45zł422.22
24h
Available quantity: 3
Available
IPS LCD display with a diagonal of 5" and a resolution of 800x480 pixels, equipped with a capacitive touch panel. Communicates via the RGB interface. With a mounting frame. Riverdi RVT50HQTFWCA0
zł366.59
3 weeks
No product available!
A module with a 1.69" IPS color LCD display with a resolution of 240x280 pixels. It has rounded corners and uses the ST7789V2 controller (SPI interface). It also offers a touch panel with the CST816T controller. Waveshare 1.69inch Touch LCD Module
zł61.94
24h
Available quantity: 13
Available
Display 7 "1024x600 IPS compatible with LattePanda V1.0 mini computer. Display powered from LattePanda, no additional power supply needed DFRobot FIT0477
zł227.96
24h
Available quantity: 3
Available
2.8inch Capacitive Touch LCD is a compact display module with a capacitive touch panel, ideal for projects with microcontrollers and single-board computers. Integrated drivers, multi-platform support, and fast touch response make this screen suitable for user interfaces, control panels, IoT systems, and educational electronic applications.
zł71.94
24h
Available quantity: 3
Available
IPS 5" round LCD display with touch panel. It is equipped with HDMI for video display and USB Type C for touchscreen. It has a resolution of 1080 x 1080 pixels. Waveshare 5inch 1080x1080 LCD
zł701.01
4 weeks
No product available!

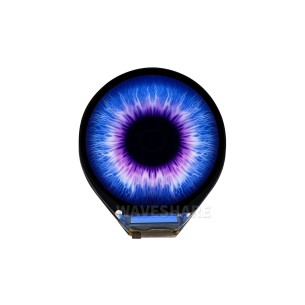

A high-resolution, 240x240 pixel circular display ideal for smartwatch, wearable device, and small interface projects. The module supports an SPI interface, has a built-in 3.3V regulator, level converter, and microSD card reader for loading graphics. The display offers a wide viewing angle of up to 80° and vivid colors. Compatible with Arduino, Raspberry Pi, and other microcontrollers, it\'s easy to integrate. Adafruit 6178
zł88.24
24h
Available quantity: 3
Available
Module with LCD TFT 1.8" display with a resolution of 128x160 px. It communicates via the SPI interface. ModTFTdisp1.8"
zł28.91
24h
Available quantity: 6
Available

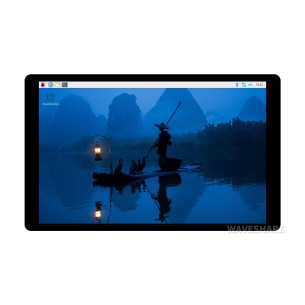

6.25" DSI capacitive display Waveshare 28918 with an IPS matrix and a touch panel using optical bonding technology offers a high resolution of 720×1560 pixels and wide viewing angles. Designed to work with Raspberry Pi, it enables multi-touch support and brightness adjustment via software. The reinforced surface made of tempered glass provides resistance to mechanical damage. It is suitable for user interface projects, control panels, and portable embedded devices.
