A 7-inch round capacitive touch display featuring an IPS panel with a 1080 × 1080 pixel resolution and support for up to 10 touch points. The display uses an HDMI interface for video and USB Type-C for touch control. It offers 800 cd/m² brightness, a 160° wide viewing angle, and toughened glass with Optical Bonding technology. Waveshare 7inch 1080x1080 LCD

6 weeks
On request
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

A 7-inch round HDMI touch display with an IPS panel and 1080 × 1080 resolution, designed for embedded projects, HMI systems, and user interface applications. The IPS display panel provides wide viewing angles up to 160° and consistent color reproduction.


The screen is equipped with a capacitive touch panel supporting up to 10 touch points (depending on the operating system). The use of toughened glass with up to 6H hardness and Optical Bonding technology increases surface durability, improves display contrast, and reduces dust between display layers.

The display uses an HDMI interface for video transmission and USB Type-C for touch input. This design enables quick integration with multiple hardware platforms without installing additional drivers. The device supports Raspberry Pi, PC computers, and NVIDIA Jetson platforms.


The display is compatible with all versions of Raspberry Pi and supports Raspberry Pi OS with multi-touch functionality without driver installation. With Ubuntu, Kali, Windows 10 IoT, or Jetson platforms, single-touch mode is supported. The display can also be used with PC systems running Windows 11, 10, 8.1, 8, or 7, supporting 10-point touch control.

Thanks to the high brightness of 800 cd/m², software-adjustable backlight, and compact design, the display is suitable for applications such as smart home systems, in-vehicle devices, consumer electronics, and human-machine interface (HMI) solutions.


Features

  • Resolution: 1080 × 1080 pixels
  • Screen size: 7"
  • Display panel: IPS
  • Viewing angle: 160°
  • Touch type: Capacitive
  • Touch points: Up to 10 points
  • Display interface: HDMI
  • Touch interface: USB Type-C
  • Brightness: 800 cd/m²
  • Touch panel: Toughened glass
  • Glass hardness: Up to 6H
  • Panel technology: Optical Bonding

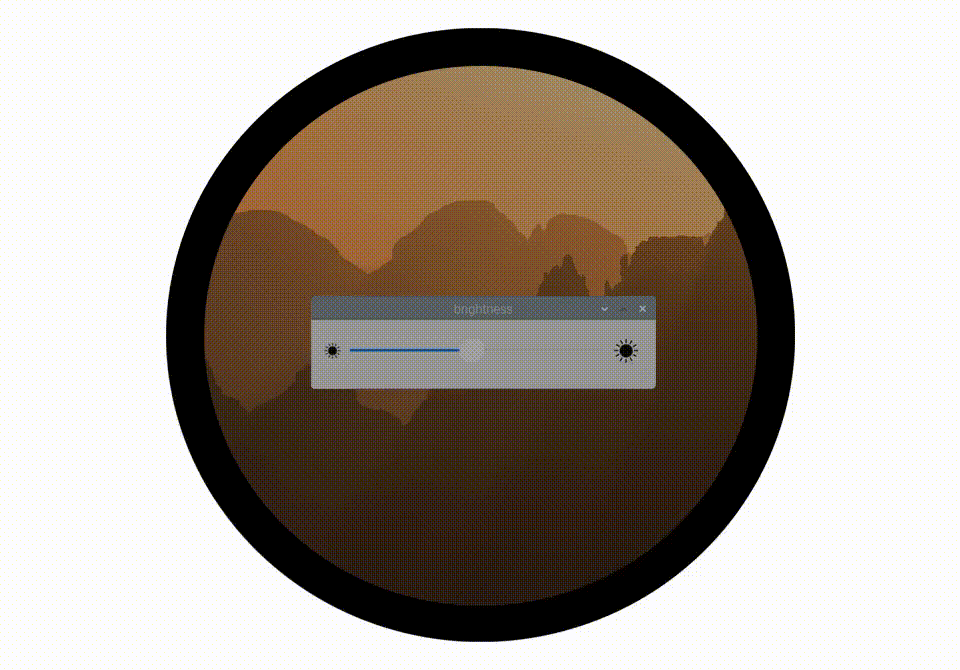

  • Backlight adjustment: Software control

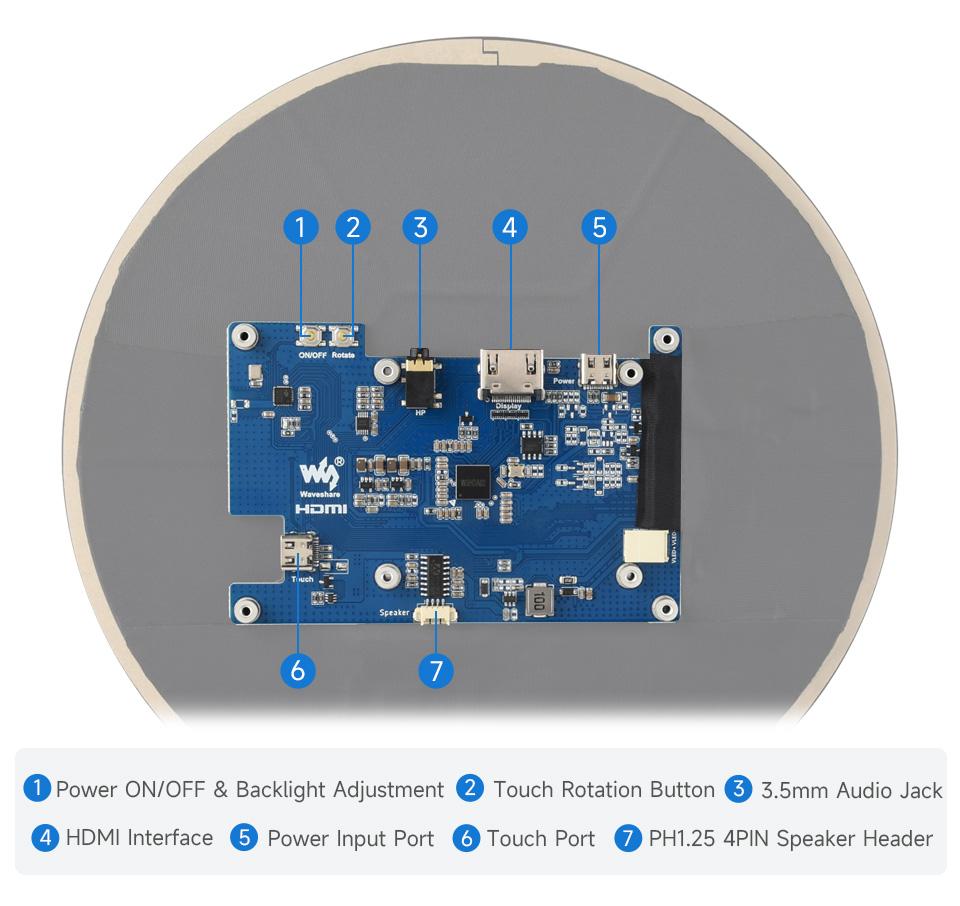

  • Audio output: 3.5 mm jack
  • Additional audio output: 24-PIN header
  • Supported platforms: Raspberry Pi, NVIDIA Jetson, PC
  • Supported systems: Raspberry Pi OS, Ubuntu, Kali, Retropie, Windows 11 / 10 / 8.1 / 8 / 7

Kit includes

  • 7inch 1080×1080 LCD display ×1
  • HDMI cable (~1 m) ×1
  • USB Type-A to USB Type-C cable (~1 m) ×1
  • USB to Type-C adapter (B) ×1
  • USB to Type-C adapter (C) ×1
  • HDMI to Micro HDMI adapter ×1
  • HDMI adapter ×1
  • Mounting screw set ×1
