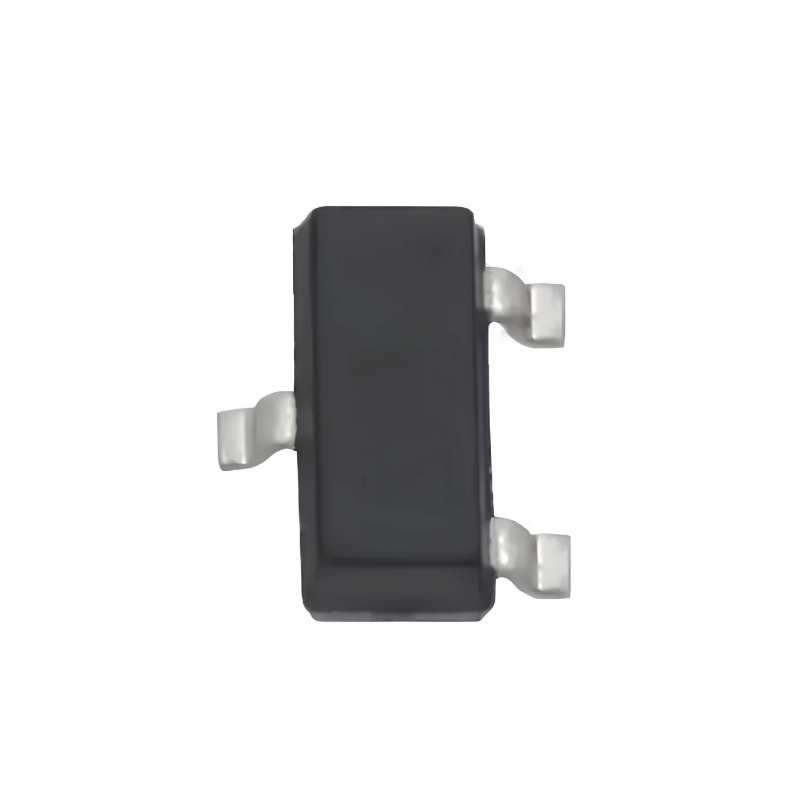

Main view
search
  • Main view
  • Bottom view
ID: 1204945
zł2.10
Tax included

zł1.71 tax excl.

N-channel MOSFET transistor designed for load switching and power control in electronic circuits. It supports a drain-source voltage of up to 30 V, while low RDS(on) helps reduce conduction losses. The SOT-23 package enables surface mounting on compact PCBs. AO3400A

24h
Available
Available quantity: 30

Description

N-channel MOSFET for switching and power-control circuits supports a drain-source voltage of up to 30 V and a drain current of up to 5.7 A under the conditions specified in the device documentation. The RDS(on) is up to 26.5 mΩ at VGS = 10 V, 32 mΩ at VGS = 4.5 V, and 48 mΩ at VGS = 2.5 V. Low gate charge supports fast switching, allowing the device to be used in DC/DC converters, load-control circuits, power-management systems, and compact motor drivers. The 3-pin SOT-23 package is intended for SMD mounting.

Features

  • Model: AO3400A
  • Type: MOSFET transistor
  • Channel type: N-channel
  • Maximum drain-source voltage VDS: 30 V
  • Drain current ID: up to 5.7 A
  • Maximum gate-source voltage VGS: ±12 V
  • RDS(on): max. 26.5 mΩ at VGS = 10 V
  • RDS(on): max. 32 mΩ at VGS = 4.5 V
  • RDS(on): max. 48 mΩ at VGS = 2.5 V
  • Gate threshold voltage VGS(th): 0.65 V to 1.45 V
  • Typical total gate charge Qg: 6 nC
  • Maximum power dissipation: 1.4 W
  • Maximum junction temperature: +150°C
  • Package: SOT-23
  • Number of pins: 3
  • Configuration: single transistor
  • Mounting type: SMD
1204945
