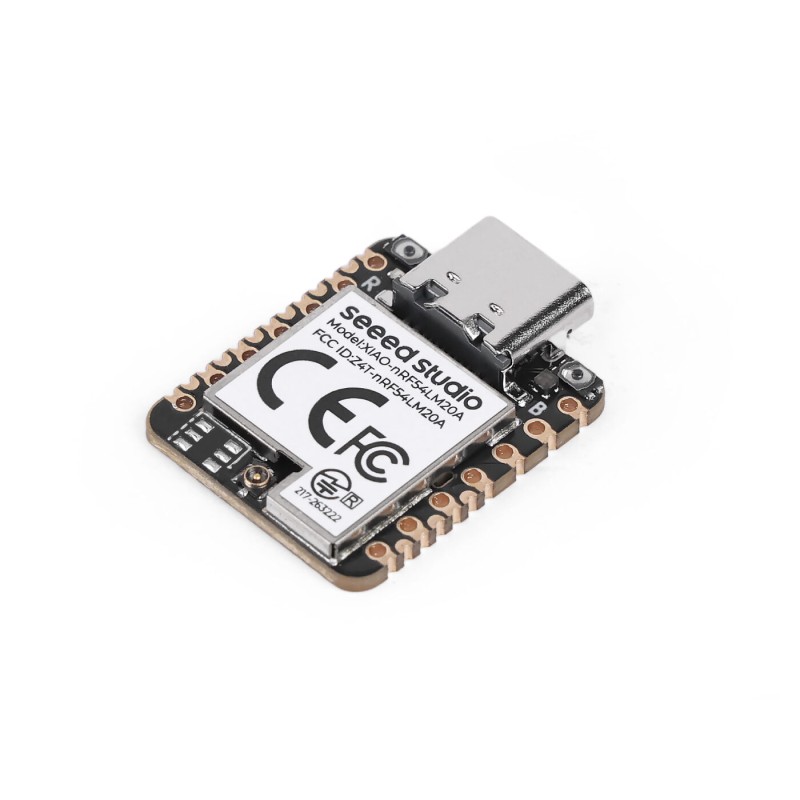

Compact development board featuring the Nordic nRF54LM20A SoC, a 128 MHz Arm Cortex-M33 processor and a 128 MHz RISC-V coprocessor; Bluetooth LE 6.0 with Channel Sounding, Thread, Zigbee, Matter, Bluetooth Mesh, NFC and 2.4 GHz wireless connectivity; 512 KB RAM, 2 MB NVM and 8 MB Flash; nPM1300 power management IC with battery charging; 28 GPIO; USB Type-C; IPEX4 antenna connector; dimensions of 21 x 17.8 mm. Seeed Studio 100023651

24h
Available
Available quantity: 5
XIAO version:
SAMD21 SAMD21 with headers SAMD21 Plus nRF54L15 nRF54L15 Sense nRF52840 nRF52840 Plus nRF52840 Sense RP2350 RP2040 RP 2040 Plus ESP32C3 ESP32-C5 ESP32-C5 with headers ESP32S3 ESP32S3 Plus ESP32S3 Sense ESP32S3 Sense ML Kit ESP32C6 RA4M1 MG24 MG24 Sense
nRF54LM20A
nRF54LM20A Sense nRF54LM20A Sense with headers nRF52840 Plus + 1,47" IPS Display
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Compact development board designed for building energy-efficient IoT devices, wireless sensor nodes and automation systems. The Seeed Studio XIAO nRF54LM20A 100023651 features the Nordic nRF54LM20A SoC with a 128 MHz Arm Cortex-M33 processor and a 128 MHz RISC-V coprocessor. Memory resources include 512 KB RAM, 2 MB of non-volatile memory (NVM) and 8 MB of external Flash memory. The SoC supports Bluetooth LE 6.0 with Channel Sounding, Bluetooth Mesh, Thread, Zigbee, Matter, Amazon Sidewalk, NFC and proprietary 2.4 GHz wireless protocols with data rates of up to 4 Mbps.


Power management is handled by the Nordic nPM1300 PMIC, providing voltage regulation and battery charging. Current consumption in System OFF mode is approximately 4.76 µA, decreasing to 0.33 µA in Ship Mode. The board features a USB Type-C connector, a 3.7 V battery input, an IPEX4 antenna connector, a user button, a Reset button and an RGB LED. It provides 28 GPIO lines, including analog inputs, as well as I2C, UART and SPI interfaces. Compact dimensions of 21 x 17.8 mm facilitate integration into small electronic devices.


Nordic nRF Connect SDK, Zephyr RTOS and PlatformIO provide development and testing environments, while Arduino IDE support through nrf54-arduino-core enables development using Arduino tools. Security features of the nRF54LM20A include secure boot, secure firmware updates, secure data storage, TrustZone and hardware-accelerated cryptographic operations. The board can be used in wearable devices, smart home systems, battery-powered sensors, Thread and Zigbee networks, and low-power IoT applications.

Features

  • Processor and memory
    • Main SoC: Nordic Semiconductor nRF54LM20A
    • Processor: Arm Cortex-M33, 128 MHz
    • Coprocessor: RISC-V, 128 MHz
    • RAM: 512 KB
    • NVM: 2 MB
    • External Flash memory: 8 MB
    • Power management IC: Nordic nPM1300
  • Wireless connectivity
    • Bluetooth: LE 6.0
    • Bluetooth Channel Sounding
    • Bluetooth Mesh
    • Thread
    • Zigbee
    • Matter
    • Amazon Sidewalk
    • NFC
    • Proprietary 2.4 GHz wireless protocols
    • Wireless data rate: up to 4 Mbps
    • Antenna connector: IPEX4
  • Interfaces and onboard components
    • GPIO: 28
    • Analog inputs: 9
    • I2C: 1
    • UART: 1
    • SPI: 1
    • NFC: 1
    • SHPHLD: 1
    • USB Type-C connector
    • RGB LED: 1
    • Battery charging indicator LED: 1
    • User button: 1
    • Reset button: 1
  • Power supply and current consumption
    • USB Type-C supply voltage: 5 V
    • Battery voltage: 3.7 V
    • Battery charging IC: nPM1300
    • Current consumption in System OFF mode: approximately 4.76 µA
    • Current consumption in System OFF mode with GRTC wake-up: approximately 4.92 µA
    • Current consumption in Ship Mode: 0.33 µA
    • Average current consumption during wireless communication at 3.7 V and +8 dBm TX power: 3.87 mA
  • Software and security
    • Nordic nRF Connect SDK
    • Zephyr RTOS
    • PlatformIO
    • Arduino IDE via nrf54-arduino-core
    • Secure Boot
    • Secure firmware updates
    • Secure data storage
    • Arm TrustZone
    • Hardware cryptographic acceleration
    • Side-channel attack protection
    • Tamper detection
  • Mechanical and environmental specifications
    • Dimensions: 21 x 17.8 mm
    • Operating temperature: -20°C to 70°C

Kit includes

  • Seeed Studio XIAO nRF54LM20A 100023651 development board
  • 2 x 7-pin header strip
  • 2.4 GHz FPC antenna A-04
1207752
