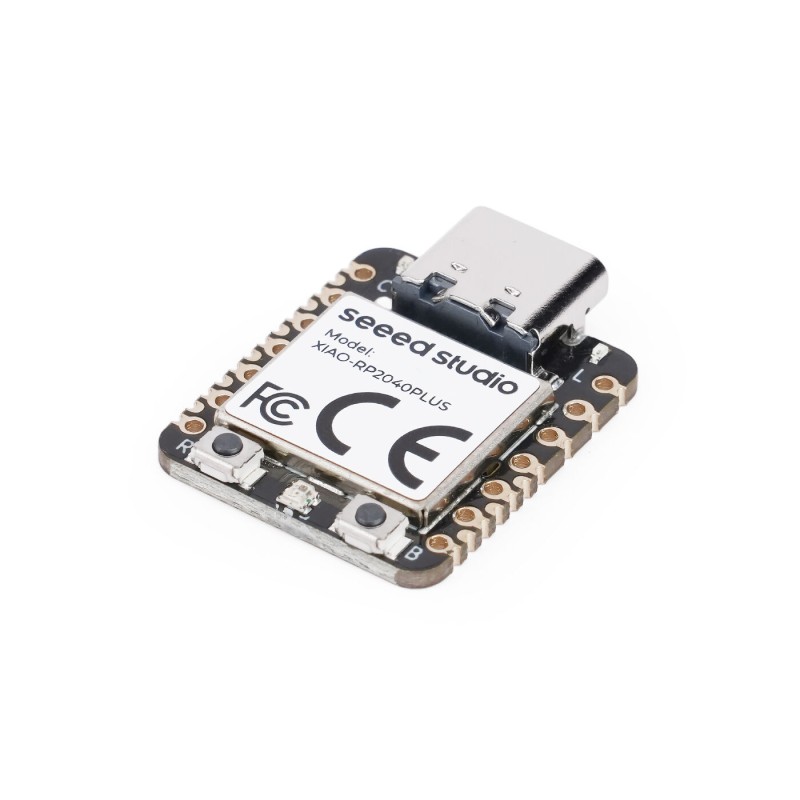

Development board based on the Raspberry Pi RP2040 microcontroller with a dual-core ARM Cortex-M0+ processor running at up to 133 MHz, 264 KB of SRAM and 2 MB of Flash memory. The Plus version expands the XIAO RP2040 design with 15 additional GPIOs, providing a total of 29 GPIOs, as well as integrated Li-Ion battery management and software-controlled battery voltage monitoring. It supports Arduino, MicroPython, CircuitPython and other development environments while retaining compact dimensions of 21 x 17.8 mm. Seeed Studio 100059977

24h
Available
Available quantity: 7
XIAO version:
SAMD21 SAMD21 with headers SAMD21 Plus nRF54L15 nRF54L15 Sense nRF52840 nRF52840 Plus nRF52840 Sense RP2350 RP2040
RP 2040 Plus
ESP32C3 ESP32-C5 ESP32-C5 with headers ESP32S3 ESP32S3 Plus ESP32S3 Sense ESP32S3 Sense ML Kit ESP32C6 RA4M1 MG24 MG24 Sense nRF54LM20A nRF54LM20A Sense nRF54LM20A Sense with headers nRF52840 Plus + 1,47" IPS Display
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The Seeed Studio XIAO RP2040 Plus development board features the Raspberry Pi RP2040 microcontroller with two ARM Cortex-M0+ cores running at up to 133 MHz. The microcontroller provides 264 KB of SRAM, while the board includes 2 MB of Flash memory. The Plus version provides 29 GPIOs, including 26 digital pins, 4 analog pins and 26 PWM channels, as well as 2 I2C interfaces, UART and SPI. Compared with the standard XIAO RP2040 design, 15 additional GPIOs are available through 1.27 mm pitch SMD castellated pads. The board retains the 21 x 17.8 mm XIAO form factor and can be mounted as an SoM directly onto a custom PCB.

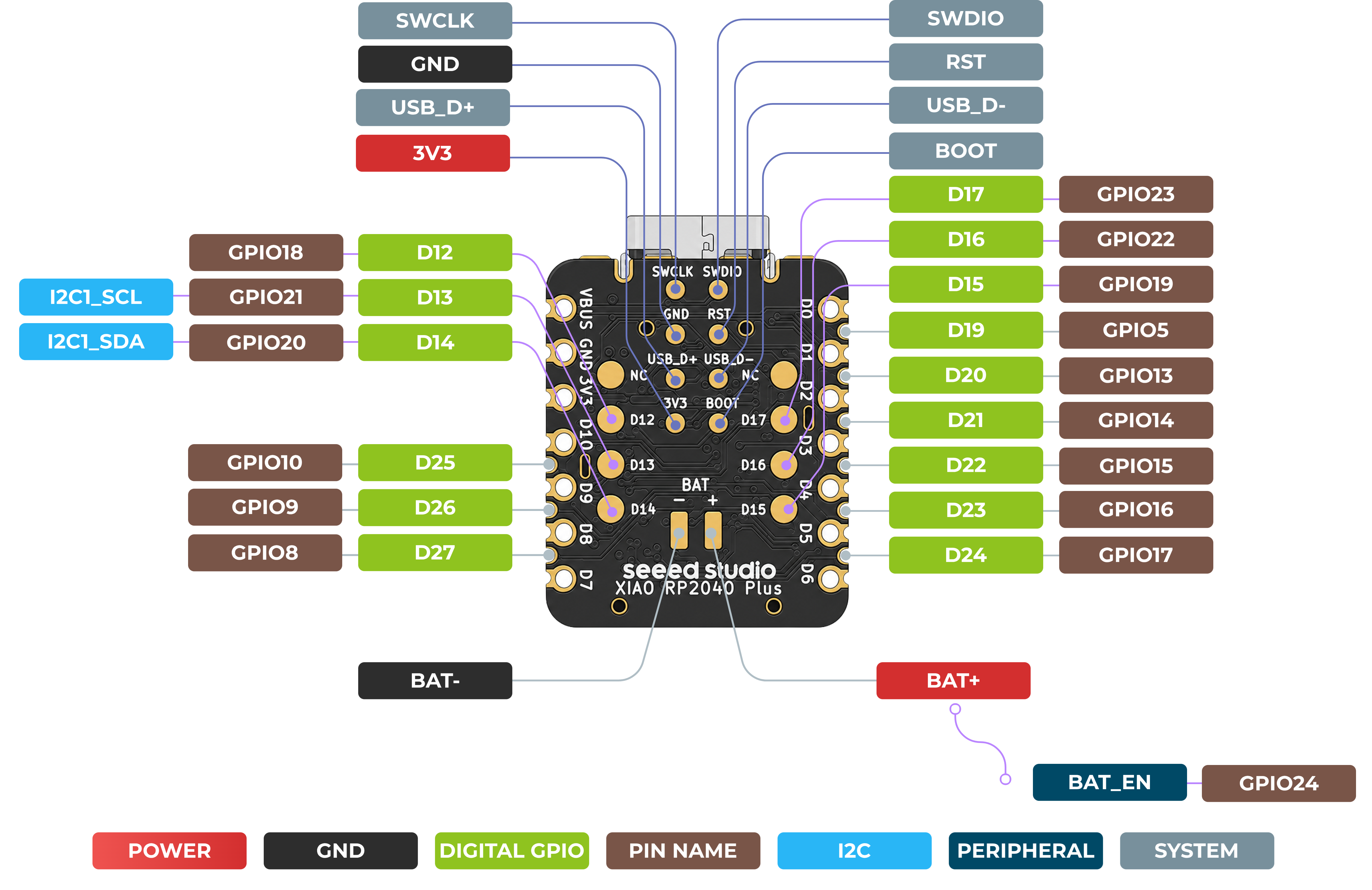

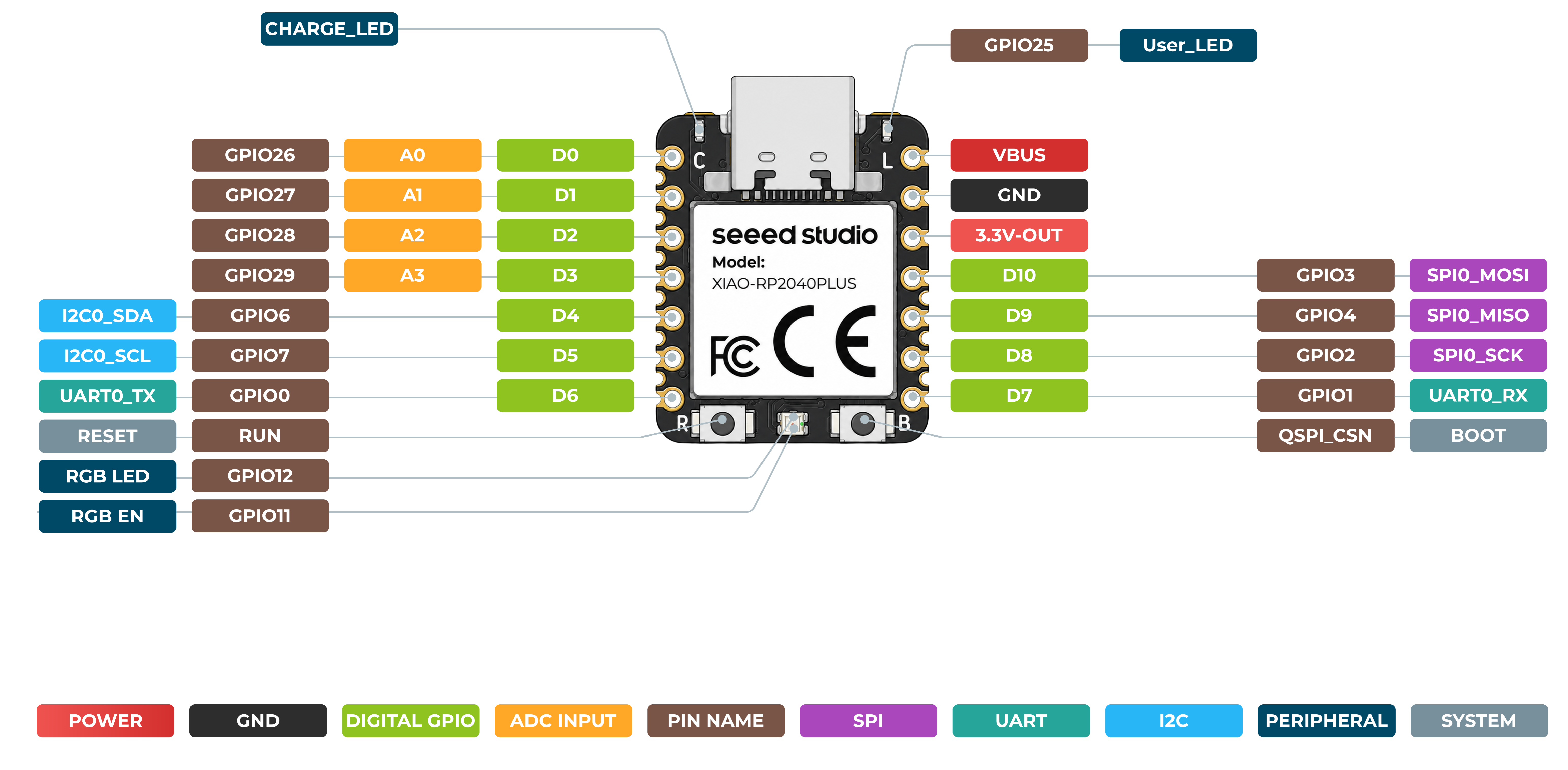

 p1208884-pinout%20front.png   p1208884-pinout%20back.png

The integrated PMIC enables direct connection of a Li-Ion battery and provides backflow protection between the 3.3 V and BAT lines. Battery voltage can be monitored in software - GPIO24 (BAT_EN) enables the battery sensing circuit, while GPIO29 (A3) allows the voltage to be measured through the ADC. The board supports Arduino, PlatformIO, MicroPython, CircuitPython, TinyGo, Rust and Zephyr, as well as the RP2040's PIO state machines. The expanded I/O resources and battery support allow the XIAO RP2040 Plus to be used in portable devices, wearables, IoT sensors, USB HID devices, robotics, measurement systems and custom devices integrating the module directly onto a PCB.

Features

  • Microcontroller: Raspberry Pi RP2040
  • Processor: 2 x ARM Cortex-M0+ up to 133 MHz
  • RAM: 264 KB SRAM
  • Flash memory: 2 MB
  • GPIO: 29
  • Digital pins: 26
  • Analog pins: 4
  • PWM: 26
  • Interfaces: 2 x I2C, 1 x UART, 1 x SPI
  • 15 additional GPIOs on SMD castellated pads
  • Additional SMD pad pitch: 1.27 mm
  • Standard pin pitch: 2.54 mm
  • PIO support
  • Integrated Li-Ion battery management
  • 3.3 V / BAT backflow protection
  • Software-controlled battery voltage monitoring via ADC
  • GPIO24 (BAT_EN): battery sensing circuit control
  • GPIO29 (A3): battery voltage measurement
  • USB Type-C input voltage: 5 V
  • User LED: 1
  • Charge LED: 1
  • RGB LED: 1
  • Reset button: 1
  • Boot button: 1
  • Supported development environments: Arduino, PlatformIO, MicroPython, CircuitPython, TinyGo, Rust, Zephyr
  • Compatible with XIAO add-on modules
  • Operating temperature: -20°C to 70°C

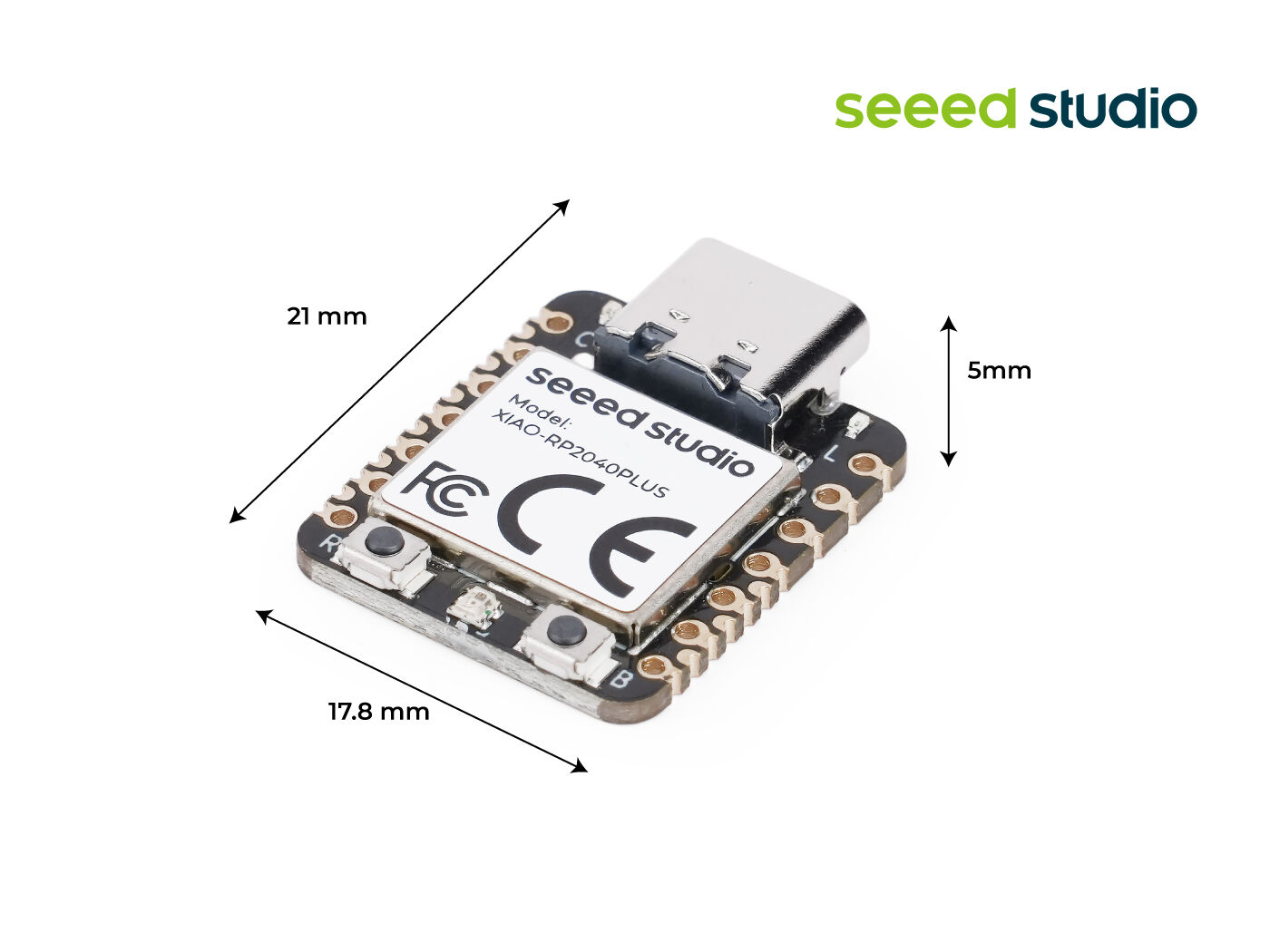

  • Dimensions: 21 x 17.8 mm

Kit includes

  • Seeed Studio XIAO RP2040 Plus - 1 pc.
  • 7-pin header - 2 pcs.
1208884

Data sheet

Microcontroller
RP2040
Flash memory
2 MB
Number of I/O
29
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
21 mm
Width
17,8 mm
USB connector type
USB type C
