74LVC1G97GW.125

Description

Digital device from the LVC family offering configurable logic functionality via one of its control inputs. With three logic inputs and flexible configuration, the device can implement logic functions such as AND, OR, NAND, NOR, NOT, and others, defined by specific input states. Compatible with CMOS and TTL logic levels, it operates over a wide supply voltage range from 1.65 V to 5.5 V. Intended for high-density applications such as embedded systems and signal conditioning circuits. The SOT-363 package enables surface mounting in compact layouts.

Features

• Type: configurable logic gate
• Number of gates: 1
• Number of inputs: 3
• Number of outputs: 1
• Logic family: LVC
• Compatibility: CMOS, TTL
• Supply voltage: 1.65 V to 5.5 V
• Output current: ±32 mA (low/high level), max. 50 mA
• Propagation delay: 6.4 ns
• Power dissipation: 250 mW
• Mounting style: SMD/SMT

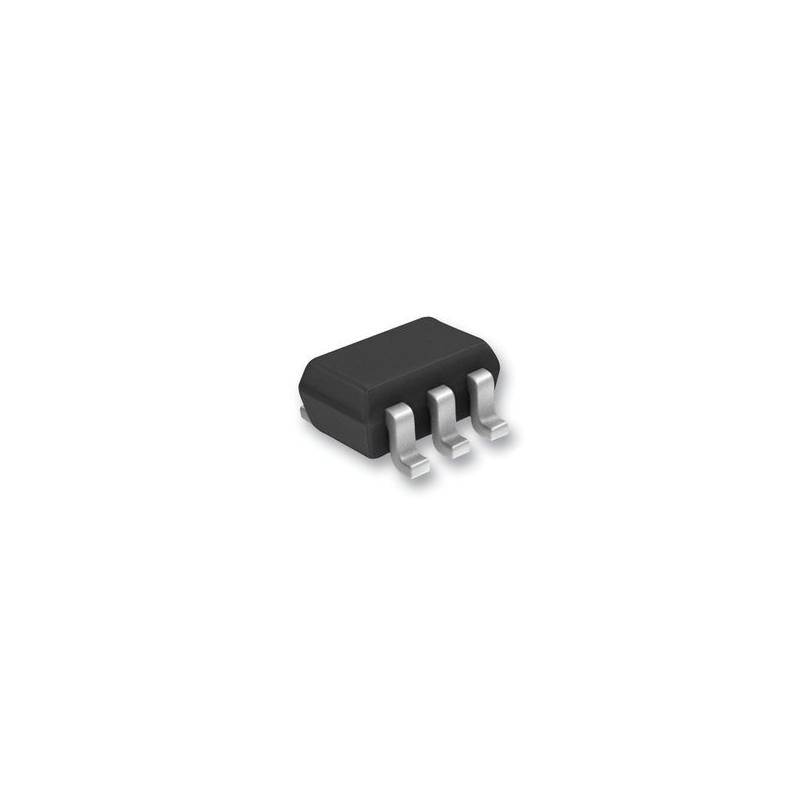

• Package: SOT-363 (6 leads)
• Operating temperature: –40 °C to +125 °C
• RoHS compliant
