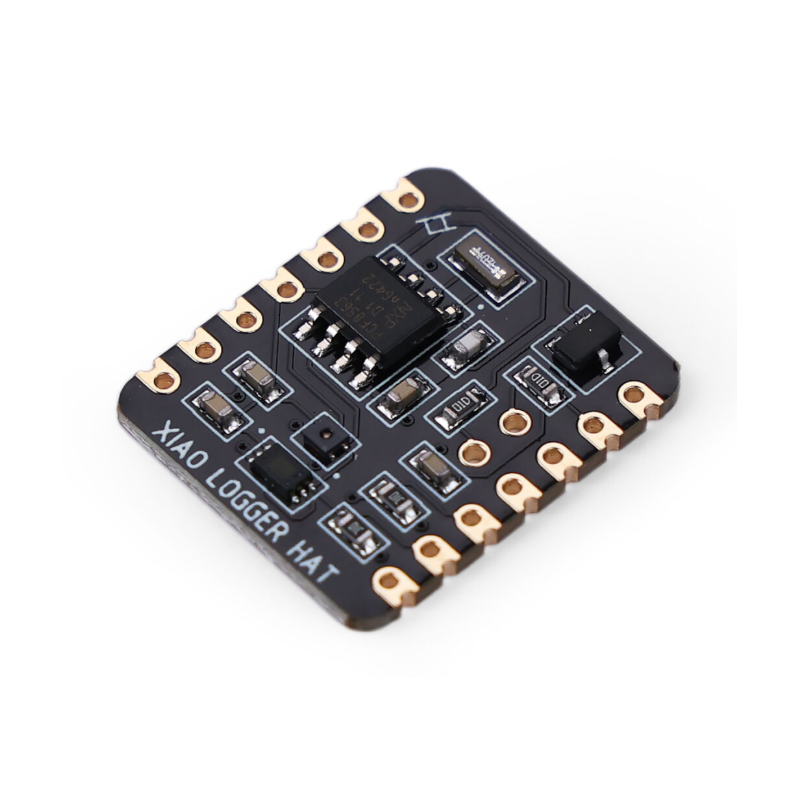

XIAO Logger HAT - module with temperature, humidity and light sensors for XIAO
ID: 1195714
5906623496341
zł46.70
Tax included
zł37.97 tax excl.
Compact expansion with advanced data monitoring features, equipped with temperature, humidity, light sensors and RTC clock. With low power consumption, battery monitoring function and I2C protocol support, it is ideal for long-term battery-powered projects, offering precise measurements and efficient power management. Seeed Studio 114993446
Description
Logger Hat is a versatile extension that integrates advanced data monitoring and management features in a compact form factor. Equipped with a Sensirion SHT40 temperature and humidity sensor, a BH1750 ambient light sensor, a PCF8563 real-time clock (RTC), and a voltage divider for battery status monitoring, Logger Hat is an ideal solution for projects with space constraints. Its compact design fits perfectly with all Seeed Studio XIAO development boards, enabling the creation of advanced battery-powered data loggers.
The built-in RTC provides precise timekeeping with minimal power consumption (< 1 µA), making it perfect for long-term projects. The battery voltage monitoring function allows safe tracking of battery charge levels. The SHT40 temperature sensor offers exceptional accuracy with 0.2°C for temperature and 1.8%RH for humidity, while the PCF8563 RTC provides minimal time drift (< 7 minutes per year). The I2C protocol support makes integration with libraries easy and allows adding additional sensors. With low power consumption and sleep mode functionality, Logger Hat is highly efficient for battery-powered applications.
Features
- Communication interface: I2C
- Built-in sensors:
- SHT40 (temperature and humidity)
- BH1750 (ambient light)
- PCF8563 (real-time clock)
- Battery voltage monitoring via pin-enabled voltage divider
- Sensor read time: ~2 ms (SHT40), ~120 ms (BH1750)
- Battery-powered, compatible with EEMB 3.7V 500mAh Li-poly battery
- Power supply range: 2.4V to 3.6V
- Current consumption: approx. 500 µA (active), 0.25 µA (sleep)
- Dimensions: 21 x 17.8 mm
- Operating temperature range: -40°C to 85°C
Kit contains
- XIAO Logger Hat board
- 2 x 7-pin female header
