zł24.16 tax excl.

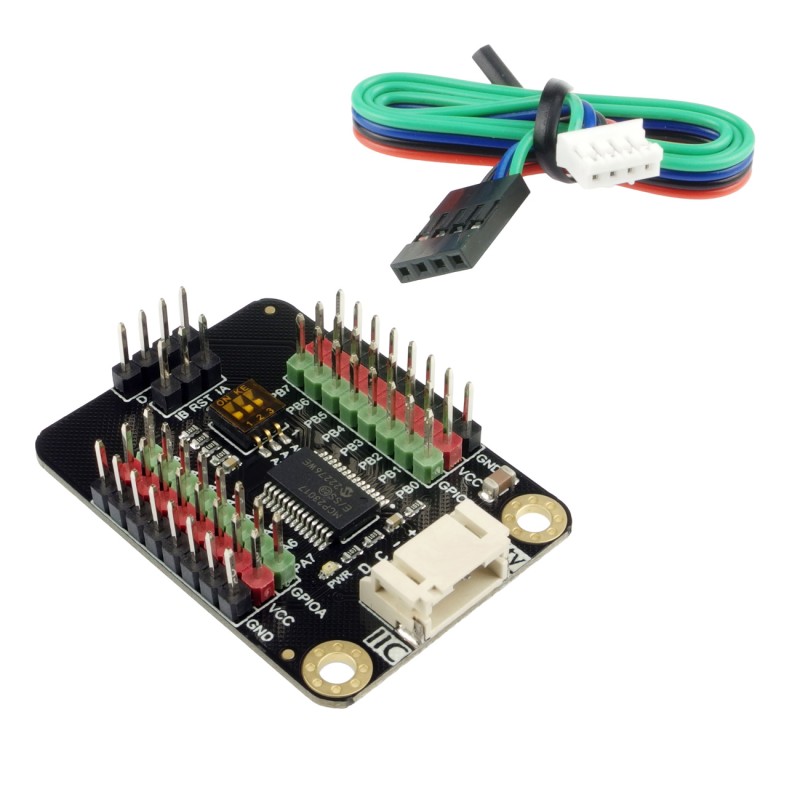

A module with a 16-channel input/output port expander controlled by an I2C interface. It was based on the MCP23017 chip and equipped with a Gravity connector. DFRobot DFR0626
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
A 16-channel input/output port expander module controlled via I2C interface. It is based on the MCP23017 chip. Each IO pin can be configured as input, output, pull-up input with 100 kΩ resistor or input with interrupt function. In addition, the module has 2 interrupt indication pins: IA and IB. IA is used to detect an interrupt on the GPIOA pins, and IB on GPIOB. The user has 8 I2C addresses, which means that 8 modules can be connected to one bus. The maximum output current should not exceed 20 mA, and the pins are compatible with 3.3 V and 5 V. The expander will prove useful in LED lighting or matrix display projects. Full documentation is available on the product wiki page.
Features
- Chip: MCP23017
- Number of IO: 16 (input, output)
- IA and IB interrupt pins
- IO current capacity: 20 mA
- I2C interface
- I2C address: 0x20-0x27
- Operating voltage: 3.3 V or 5 V
- Dimensions: 44 x 32 mm
Kit contains
- Gravity module: MCP23017 I2C 16 Digital IO Expansion
- Gravity I2C/UART 4-pin cable
