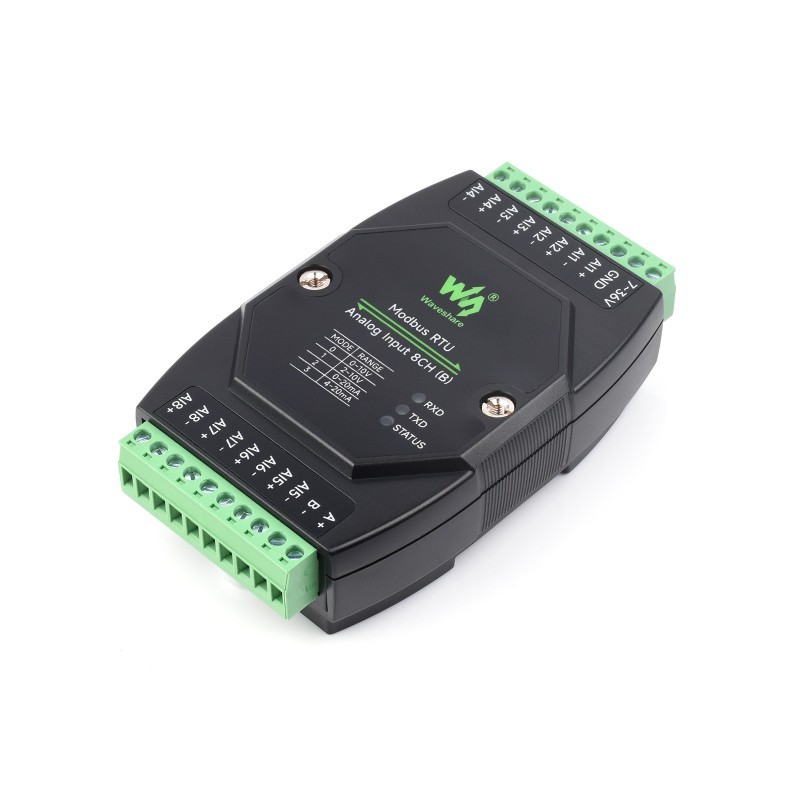

Modbus RTU Analog Input 8CH (B) - 8-channel 0-10V analog input module with RS485 Modbus RTU interface
zł93.82 tax excl.
8-channel module with voltage analog inputs ranging from 0 to 10 V. After reconfiguration, it enables measurement of voltage in the range from 2 to 10 V or current in the range from 0 to 20 mA or 4 to 20 mA. It communicates via the RS485 interface and supports the Modbus RTU protocol. The board is enclosed in a housing that can be mounted on an industrial rail. Waveshare Modbus RTU Analog Input 8CH (B)
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
The Voltage Input Module supports communication via the Modbus RTU protocol through an RS485 interface. It features eight analog inputs, capable of measuring voltage in the range of 0 to 10 V (default mode) or 2 to 10 V. After reconfiguration, it can also measure current signals of 0-20 mA or 4-20 mA. Built-in power isolation, magnetic isolation, fuse, and TVS ensure reliability and protection against damage, as well as overload, surge, lightning, and anti-static protection, guaranteeing safe operation in various conditions.
The standard Modbus RTU protocol makes it compatible with almost any automation software supporting this popular protocol, significantly easing integration into existing control systems. The board is enclosed in a robust industrial housing, making it resistant to industrial conditions and protected from damage. The DIN rail mounting system allows for easy installation and removal in control cabinets, enhancing flexibility and facilitating maintenance.
This module is an excellent solution for advanced industrial applications, providing precise control and real-time monitoring of signals.
Features
- 8 analog inputs: DC 0-10 V (default), 2-10 V, 0-20 mA, 4-20 mA
- Input resolution: 12 bit, 1mV
- Output accuracy: ± 0.01V
- RS485 interface: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000 bps
- Compatible with Modbus RTU protocol
- Configurable addresses from 1 to 255
- Built-in power isolation, magnetic isolation, fuse, and TVS
- Protection against overload/surge, lightning, and anti-static
- Watchdog timer for reliable operation
- Module operation LED indicators
- Screw terminals
- Industrial housing with DIN rail mounting
- Power supply: 7 to 36 V
- Dimensions: 121 x 72 x 34 mm
Included
- Modbus RTU Analog Input 8CH Module (B)
- Power adapter screw terminal - DC connector
- 10 x configuration jumper
