Soldered USB Type A Female Breakout - USB breakout board
ID: 1208293
zł6.21
Tax included
zł5.05 tax excl.

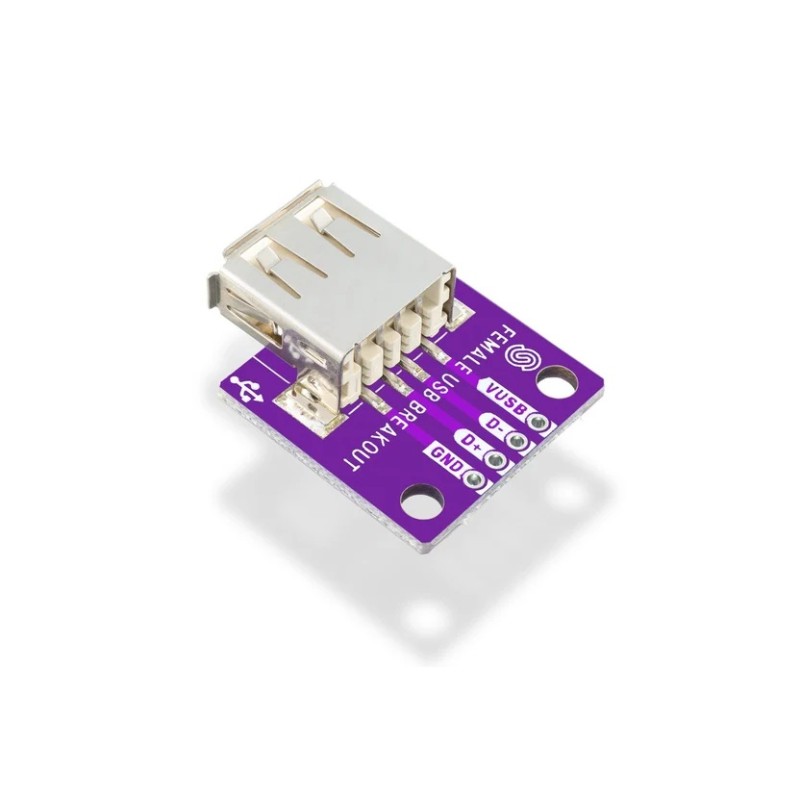

Breakout board with a female USB Type-A connector, bringing the VUSB, D+, D- and GND lines to plated through-holes for convenient integration into prototype and custom electronic circuits. The board measures 22 × 22mm and features two mounting holes. Soldered 333132
Description
The device USB Type A Female Breakout by Soldered is a breakout board designed to provide convenient access to a female USB Type-A connector in custom electronic circuits. The board brings the four basic USB lines — VUSB, D+, D- and GND — to plated through-holes, providing easy access to both power and data connections.
The module simplifies adding a USB-A receptacle to a prototype without having to solder directly to the connector pins. The VUSB and GND lines can be used for power, while D+ and D- provide access to the USB differential data pair.
The breakout can be used for prototyping USB devices, building custom boards and creating test circuits. The plated through-holes allow wires or suitable pin headers to be connected depending on the required mounting method.

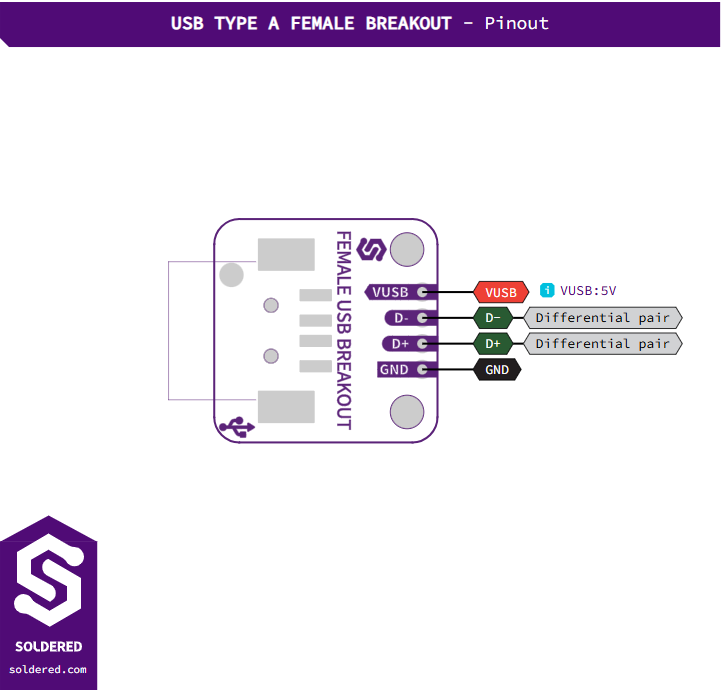

The board measures 22 × 22mm and features two mounting holes. The hardware design is open source, and the manufacturer provides design files and a pinout diagram.
Features
- Connector and pins
- Connector type: USB Type-A
- Connector gender: female
- Broken-out lines: VUSB, D+, D-, GND
- Plated through-hole connections
- Applications
- Adding a USB-A receptacle to custom circuits
- USB circuit prototyping
- Access to USB power and data lines
- Suitable for prototype and test circuits
- Mechanical parameters
- Board dimensions: 22 × 22mm
- Number of mounting holes: 2
- Additional information
- Open-source hardware design
- Pinout diagram available
- Hardware design files available
- Manufacturer: Soldered Electronics
- Product code: 333132
