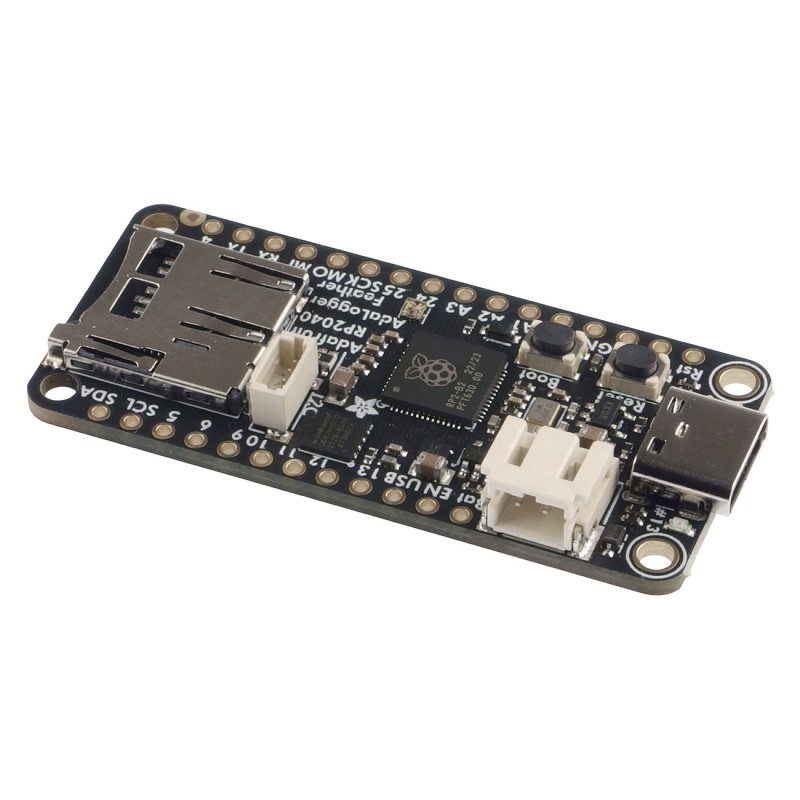

Feather RP2040 Adalogger - development board with RP2040 microcontroller and 8MB Flash
ID: 1202039
5902186331594
zł75.41
Tax included
zł61.31 tax excl.
This development board with a microSD slot is ideal for data logging in measurement and IoT projects. Equipped with USB-C, a Li-Po charger, and a STEMMA QT connector, it's ideal for portable devices requiring easy expansion with I2C sensors. A powerful RP2040 microcontroller with 8MB of Flash and a rich GPIO set ensures high performance and a wide range of applications. Adafruit 5980
Description
Feather RP2040 Adalogger is a versatile platform for data logging and data retrieval, combining the capabilities of the RP2040 microcontroller with the convenience of the Feather system. Equipped with a microSD card slot, it enables fast and easy recording of large amounts of data in measurement, IoT, or mobile projects. Thanks to the built-in USB Type-C port and Li-Po battery charger, the module is perfect for portable applications, automatically switching between battery and USB power. The board also includes a STEMMA QT/Qwiic connector for quick, solder-free connection of I2C sensors and modules.
The heart of the device is the RP2040 microcontroller with a dual-core ARM Cortex-M0+ processor clocked at 133 MHz, providing strong performance and 8 MB of Flash memory. The presence of a built-in NeoPixel RGB LED and a red status LED allows convenient signaling of operating states. The module offers a rich set of GPIOs, including 4 ADC inputs, numerous communication interfaces, and 16 PWM channels. With full compatibility with the Feather ecosystem, the board works seamlessly with FeatherWing add-ons, enabling rapid project expansion. It supports Arduino, CircuitPython, and MicroPython, greatly simplifying development. With a solid design, low weight, and integrated power management, the Feather RP2040 Adalogger is an excellent choice for hobbyists, engineers, and data-logging system creators.
Features
- RP2040 microcontroller, ARM Cortex-M0+ dual-core, 133 MHz
- 264 KB RAM
- 8 MB QSPI Flash memory
- microSD slot supporting SPI and optional SDIO
- STEMMA QT/Qwiic connector for I2C devices
- Built-in 3.7 V Li-Po charger with charge-status LED
- USB Type-C port with bootloader and serial communication support
- 21 GPIO pins, including 4 ADC inputs, 16 PWM channels, 2× I2C, 2× SPI, 2× UART
- RGB NeoPixel and LED on pin 13
- 3.3 V / 500 mA voltage regulator
- Dimensions: 52.1 × 23.0 × 7.2 mm
- Weight: 5.6 g
Kit contains
- Adafruit Feather RP2040 Adalogger board
- Header set
1202039
Data sheet
- Microcontroller
- RP2040
- Flash memory
- 8 MB
- Number of I/O
- 21
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- Yes
- Length
- 52,1 mm
- Width
- 23 mm
- USB connector type
- USB type C
