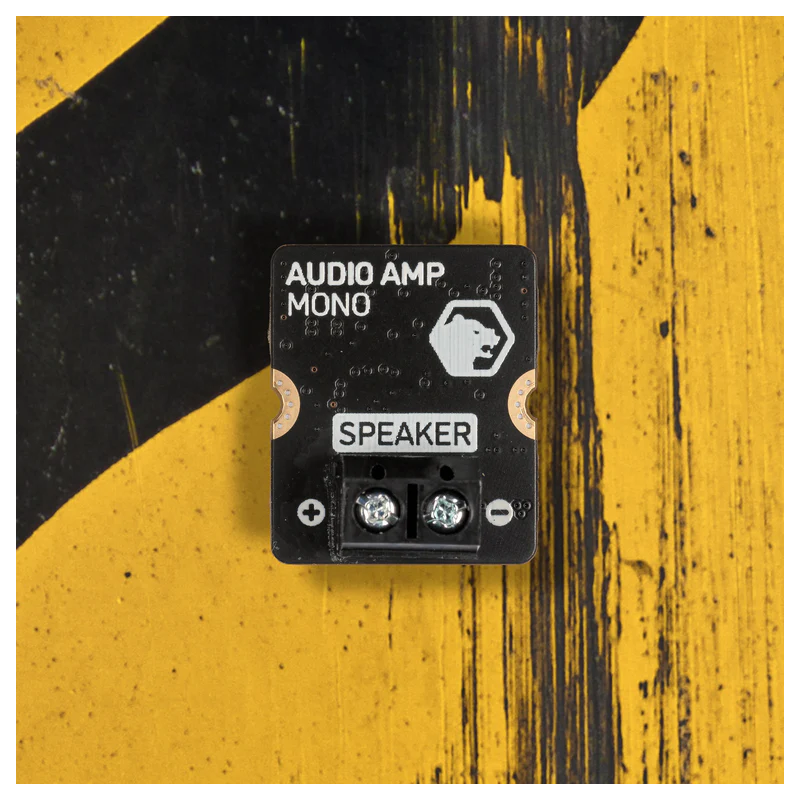

  • Main view
ID: 1202082
769894024676
zł87.16
Tax included

zł70.86 tax excl.

A class-D audio amplifier designed for the Pimoroni Yukon platform, offering up to 25W of mono output. The module allows for connection to speakers with an impedance of 4Ω or greater and delivers clean, dynamic sound thanks to the TAS2780 chip. Equipped with a temperature sensor and screw terminals, it's ready to use, no soldering required. Pimoroni PIM689

24h
Available
Available quantity: 2
Kamami is the official distributor of Pimoroni modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Audio Amp Module is a high-performance Class D audio amplifier module, specifically designed to work with the Pimoroni Yukon platform. It allows playback of high-quality audio in electronic projects, multimedia applications, and interactive installations. The module provides a mono audio output with up to 25 W power, capable of driving even large speakers with an impedance of 4 Ω or higher. The integrated TAS2780 chip combines a digital-to-analog converter and amplifier, delivering clear and dynamic sound.


The maximum output power depends on the supply voltage provided by the Yukon host, offering flexibility in power configuration. The module is ideal for projects such as audio players, interactive installations, arcade machines, audio notification systems, or educational projects. With 5 mm pitch screw terminals, speaker connection is quick and secure. A built-in temperature sensor increases reliability by protecting the module from overheating.

The module is fully assembled and ready to use immediately after connection, without soldering. Its compact size allows easy integration even in small enclosures. The Audio Amp Module for Yukon is an excellent choice for creators looking to add powerful, clear, and impressive audio to their projects in a simple and reliable way.

Features

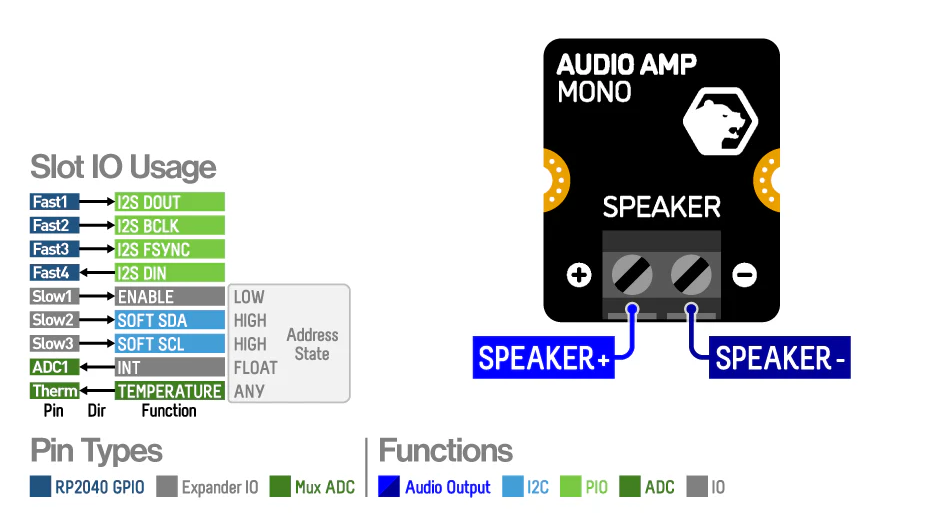

  • Amplifier IC: TAS2780 DAC / Class D audio amplifier
  • Output type: mono
  • Maximum output power: up to 25 W
  • Supported speaker impedance: 4 Ω or higher
  • Speaker connector: screw terminals, 5 mm pitch
  • Configurable via I2C interface
  • Temperature sensor
  • Fully assembled
  • Compatibility: Pimoroni Yukon
  • Dimensions: 24 × 20 × 15.3 mm
