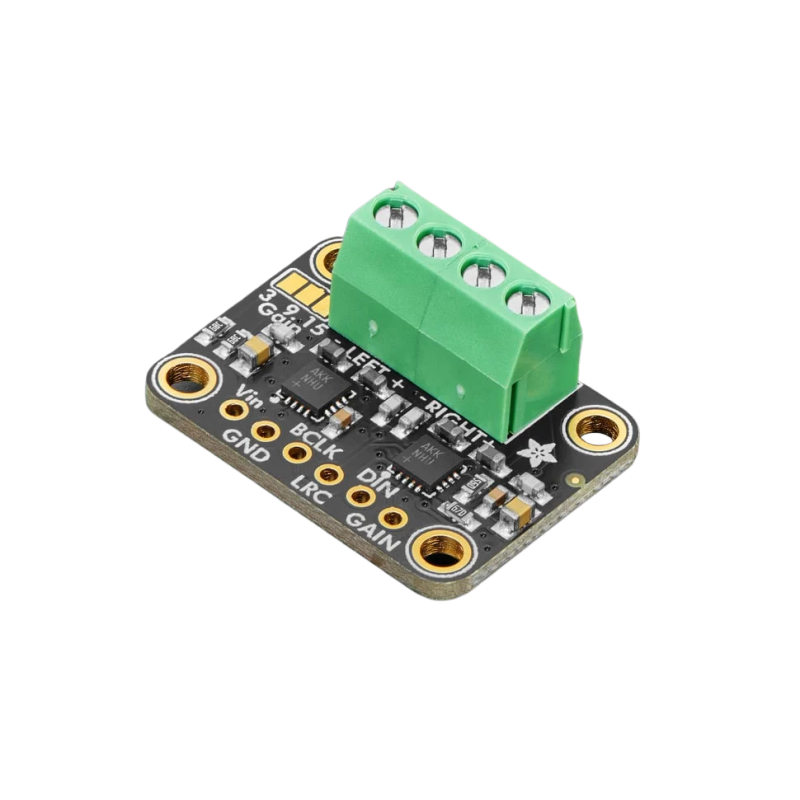

Main view
search
  • Main view
  • Top view
  • Connector view
  • Kit view
  • Bottom view
ID: 1210191
zł53.64
Tax included

zł43.61 tax excl.

Stereo Class D audio amplifier breakout with dual MAX98357A devices, digital I2S input and separate left and right speaker outputs. With a 5V supply it can deliver up to 3.2W per channel into 4Ω, supports 8–96kHz sample rates and works with 3.3V or 5V logic. Adafruit 6513

4 weeks
Awaiting delivery
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

The stereo audio amplifier breakout Adafruit Stereo I2S 3W Amplifier Breakout uses two MAX98357A devices to provide a complete two-channel digital I2S audio path with integrated DACs and Class D amplification. Separate left and right channels allow two speakers to be driven directly without an additional DAC or external amplifier. The module can be used with Raspberry Pi, ESP32, Arduino and other microcontrollers or single-board computers providing an I2S audio output.

With a 5V supply, each channel can deliver up to 3.2W into 4Ω at 10% THD or approximately 1.8W into 8Ω at 10% THD. The Class D amplifier provides efficiency up to approximately 92% with an 8Ω load at 1W output power. The supply voltage range is 2.5–5.5V.

The digital I2S interface supports sample rates from 8kHz to 96kHz and does not require an external MCLK signal. The module supports both 3.3V and 5V logic. BCLK, DIN and LRC signals are provided, while the GAIN input allows amplification to be configured for 3dB, 6dB, 9dB, 12dB or 15dB. The default gain is 9dB.

The speaker outputs use a BTL configuration, so both terminals of each speaker are actively driven and neither terminal should be connected to ground. The output is an approximately 300kHz PWM waveform that is averaged by the speaker coil. The outputs are intended to drive speakers directly rather than feed another amplifier input.

The MAX98357A devices provide thermal and short-circuit protection together with click-and-pop reduction circuitry. The board includes a pre-soldered 4-pin screw terminal for two speakers and solder pads for power and I2S signals.

Features

  • Audio path
    • Amplifier device: 2 × MAX98357A
    • Type: digital Class D audio amplifier with integrated DAC
    • Number of channels: 2
    • Configuration: stereo
    • Audio interface: I2S
    • Sample rate: 8–96kHz
    • MCLK: not required
  • Output power
    • 3.2W per channel into 4Ω at 5V and 10% THD
    • 1.8W per channel into 8Ω at 5V and 10% THD
    • Speaker output configuration: BTL
  • Gain
    • Available settings: 3dB, 6dB, 9dB, 12dB, 15dB
    • Default gain: 9dB
  • Power and logic
    • Supply voltage: 2.5–5.5V
    • Supported logic levels: 3.3V / 5V
    • Quiescent current: approximately 2.4mA per MAX98357A device
  • Audio parameters
    • Efficiency: up to approximately 92% at 8Ω and 1W
    • PSRR: 77dB at 1kHz
    • THD+N: approximately 0.015% at 1kHz
    • Output noise: approximately 25µV RMS at 15dB gain
  • Protection
    • Thermal shutdown
    • Short-circuit protection
    • Click-and-pop reduction circuitry
  • Speaker connector: 4-pin screw terminal
  • Dimensions: approximately 25.5 × 19 × 11.8mm
  • Weight: approximately 3.5g
  • Manufacturer: Adafruit
  • Product ID: 6513

Kit includes

  • 1 × Adafruit Stereo I2S 3W Amplifier Breakout
  • 1 × optional male header for soldering
