zł492.84 tax excl.
HiFi stereo tube amplifier based on 6J1 and 6P1 tubes. Designed for use with loudspeakers up to 3 W and an impedance of 4 Ω or 8 Ω
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description

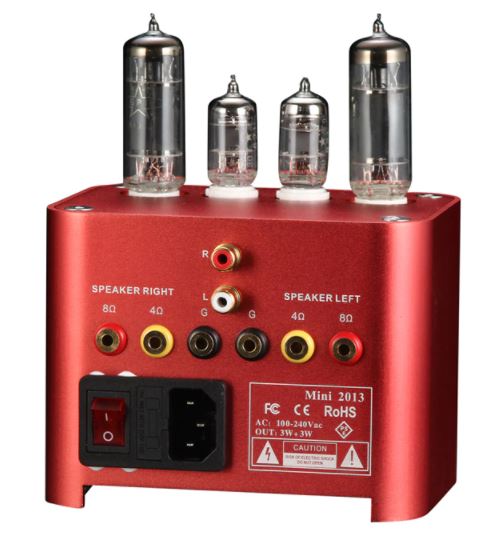

HiFi stereo tube amplifier based on 6J1 and 6P1 tubes. It allows you to adjust the volume using the built-in potentiometer and give a "sweet" sound color characteristic for devices with vacuum tubes. The amplifier allows you to connect two audio input channels through RCA connectors and outputs in the form of 3 W speakers and 4 Ω or 8 Ω impedance through banana connectors. It is powered by AC 230 V mains voltage via an IEC C14 socket (standard power socket used, for example, in computers).
The electronic module has been placed in a nice, aluminum housing, so it can be used not only as part of the audio system, but also as an element of decor. It is a good choice for both novice users and audiophiles.
Features
- Stereo amplifier
- Type: tube 6P1 (power amplifier), 6J1 (voltage amplifier)
- Frequency response: 30 Hz to 40 kHz (-1dB)
- Input sensitivity: 500 mV
- SNR: 80 dB
- Adjusting the volume level
- Input impedance: 10 kΩ
- Output power: 2 x 3 W with an impedance of 4 Ω or 8 Ω
- Input: RCA connectors
- Output: banana connectors
- Power switch
- Black colour
- Power supply: AC 100 to 250 V (IEC C14 socket)
- Dimensions: 124 x 132 x 166 mm
Kit contains
- HiFi tube amplifier
- 2 x 6P1
- 2 x 6J1 lamp
