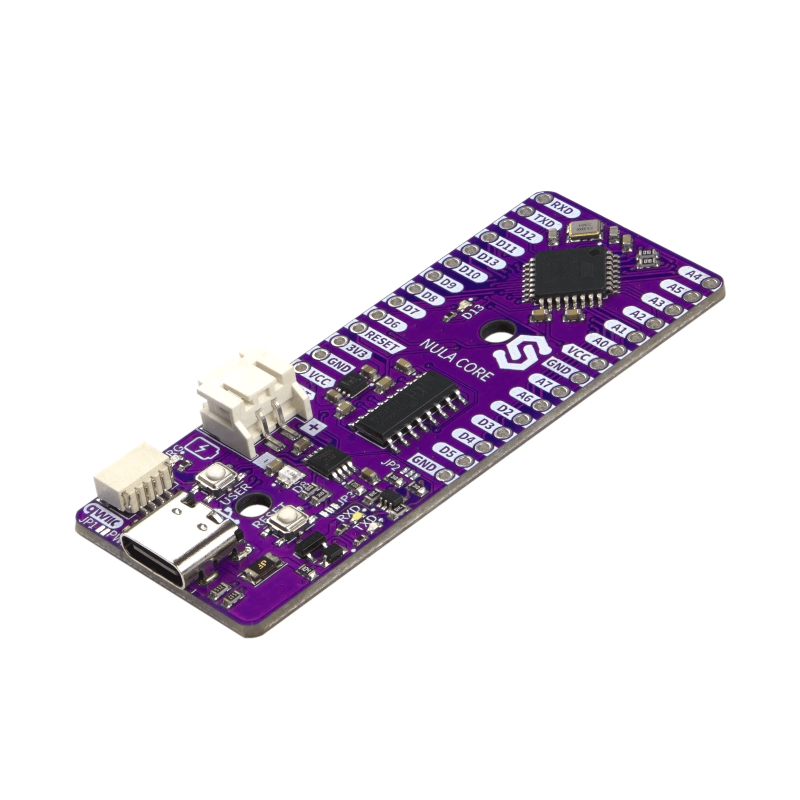

Main view
search
  • Main view
  • Top view
  • Bottom view
  • USB-C cable included
  • Female pin headers
  • Female pin headers (bottom side)
ID: 1208368
zł53.20
Tax included

zł43.25 tax excl.

Compact development board based on the ATmega328P microcontroller, compatible with the Arduino ecosystem and designed for learning electronics, prototyping, and projects involving sensors, communication modules, and actuators. The version with female pin headers provides 22 board I/O pins, a USB-C connector, Qwiic, a Li-ion battery charger, and a WS2812 RGB LED. Soldered 333387

24h
Available
Available quantity: 3

Description

The NULA Core board uses an 8-bit ATmega328P microcontroller operating at up to 16 MHz and maintains compatibility with the Arduino IDE and common libraries developed for the Arduino platform. The board provides 22 I/O pins, including 14 digital lines and 8 analog inputs, with A6 and A7 supporting analog input only. The microcontroller features 32 KB of Flash memory, 2 KB of SRAM, 1 KB of EEPROM, as well as UART, SPI, and I2C interfaces.

The integrated USB-C connector, Qwiic connector, and Li-ion battery charging circuit expand the board's capabilities in stationary and portable projects. NULA Core operates at 5 V and includes a 3.3 V regulator, an LED connected to pin 13, and an addressable WS2812 RGB LED. The version with female pin headers allows wires and modules to be connected directly to the board without soldering. Dimensions of 63 x 22 mm facilitate integration with breadboards and compact electronic assemblies.

Features

  • Microcontroller: ATmega328P
  • Architecture: 8-bit AVR RISC
  • Maximum clock frequency: 16 MHz
  • Performance: up to 16 MIPS at 16 MHz
  • Flash memory: 32 KB
  • SRAM: 2 KB
  • EEPROM: 1 KB
  • Number of programmable MCU GPIO lines: 23
  • Number of board I/O pins: 22
  • Digital I/O: 14
  • Analog inputs: 8
  • A6 and A7: analog input only
  • ADC resolution: 10-bit
  • Number of ADC channels: up to 8
  • PWM channels: 6
  • Timers: 2 x 8-bit, 1 x 16-bit
  • Communication interfaces: UART / SPI / I2C
  • USB connector: USB-C
  • Qwiic I2C connector
  • Li-ion battery connector
  • Integrated Li-ion battery charger
  • 3.3 V voltage regulator
  • Board operating voltage: 5 V
  • Microcontroller operating voltage range: 2.7-5.5 V
  • Status LED: pin 13
  • RGB LED: WS2812
  • Low-power modes: Idle / ADC Noise Reduction / Power-down / Power-save / Standby
  • Header version: female pin headers
  • Pin pitch: 2.54 mm
  • Breadboard-compatible design
  • Dimensions: 63 x 22 mm
  • Open-source hardware design
  • Manufactured in Croatia, EU

Kit includes

  • Soldered NULA Core board with female pin headers - 1 pc.
  • USB-C to USB-C cable - 1 pc.
1208368

Data sheet

Microcontroller
ATmega328P
Core
AVR
Frequency
16MHz
Flash memory
32kB
RAM
2kB
EEPROM memory
1kB
Number of digital pins
14
Number of PWM channels
6
Ilość wejść analogowych
8
ADC
1x 10bit
DAC
none
CAN
none
USB
1
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
GSM/GPRS module
No
Logic voltage
5 V
MicroSD slot
No
Supply voltage min
5 V
Supply voltages max
5 V
