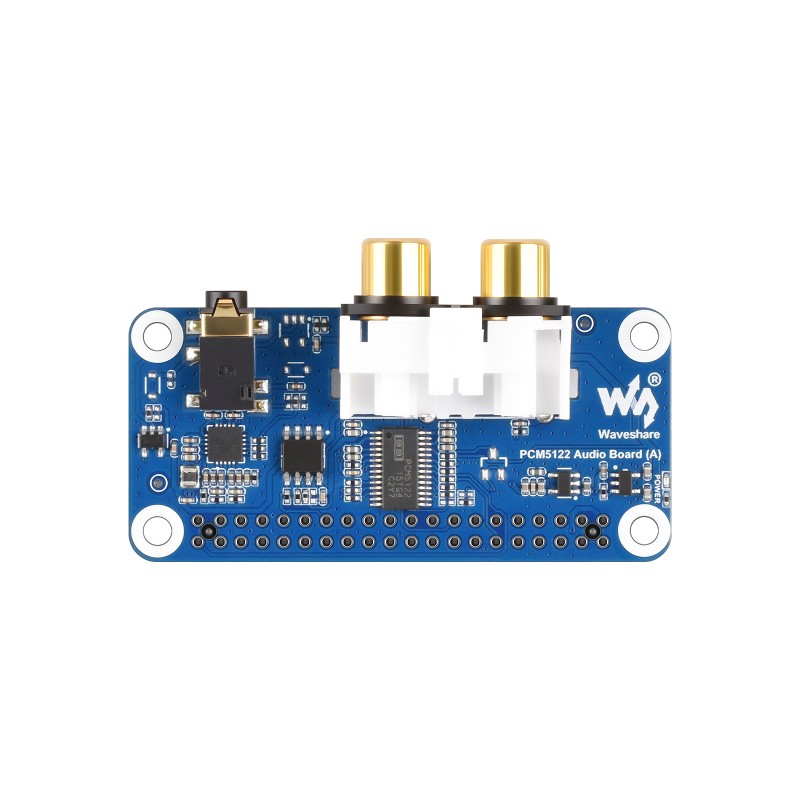

PCM5122 Audio Board (A) audio board with I2S DAC for Raspberry Pi - Waveshare 32223
ID: 1201217
zł52.80
Tax included
zł42.93 tax excl.
PCM5122 Audio Board (A) is an audio board with a Hi-Fi class DAC designed for Raspberry Pi, offering jack and RCA outputs and support for high-resolution audio. Ideal for building audio systems and multimedia projects based on Raspberry Pi.
Description
The PCM5122 Audio Board (A) by Waveshare, designed for Raspberry Pi boards with a 40-pin GPIO connector, enables high-quality stereo audio playback via the I2S interface. It features a professional PCM5122 digital-to-analog converter supporting up to 32-bit resolution and a sampling rate of up to 384 kHz. Communication with the microcontroller is carried out via the I2C bus.
The device is equipped with a standard 3.5 mm headphone jack output and RCA connector, allowing connection to an external amplifier or speakers. The board also includes EEPROM memory for automatic driver loading in the Raspberry Pi OS system. The module is used in projects requiring high-quality audio playback, including multimedia systems, audio players, information terminals and DIY audio projects.
Properties

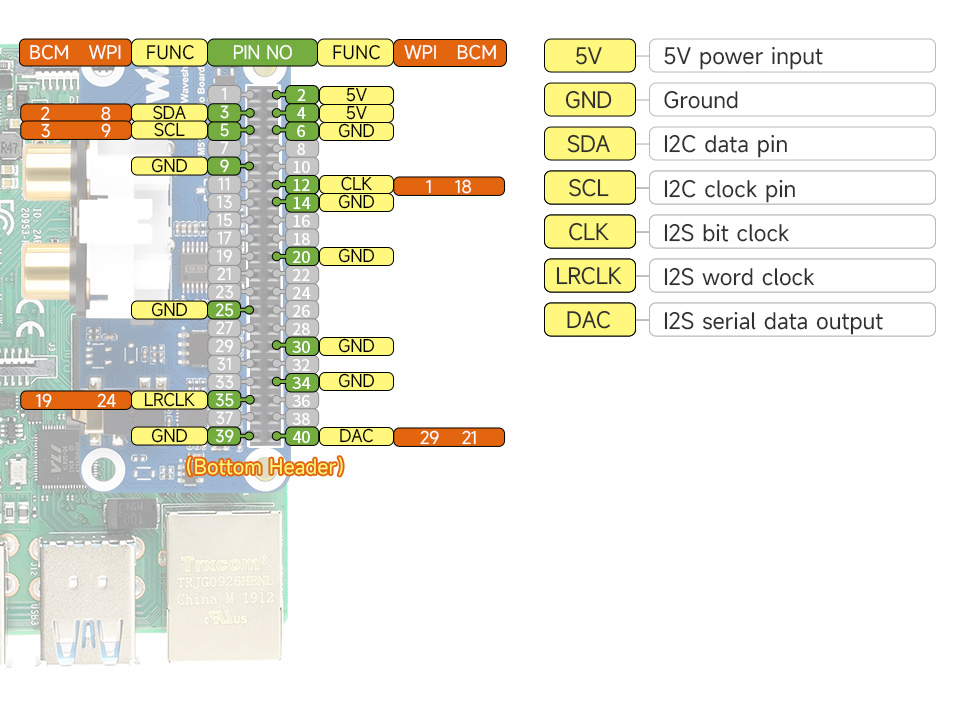

- Compatibility with 40-pin GPIO connector Raspberry Pi
- PCM5122 DAC with I2S interface and I2C control
- Support for stereo audio up to 32-bit/384 kHz
- 3.5 mm headphone jack output
- RCA audio output for connecting external audio devices
- Built-in EEPROM memory for automatic driver loading in Raspberry Pi OS
- Dimensions: 65.0 x 30.25 mm
Included
- PCM5122 Audio Board (A) ×1
- 2×20 pin goldpin connector ×1
- Screwdriver ×1
1201217
Data sheet
- Compatible with
- Raspberry Pi
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
