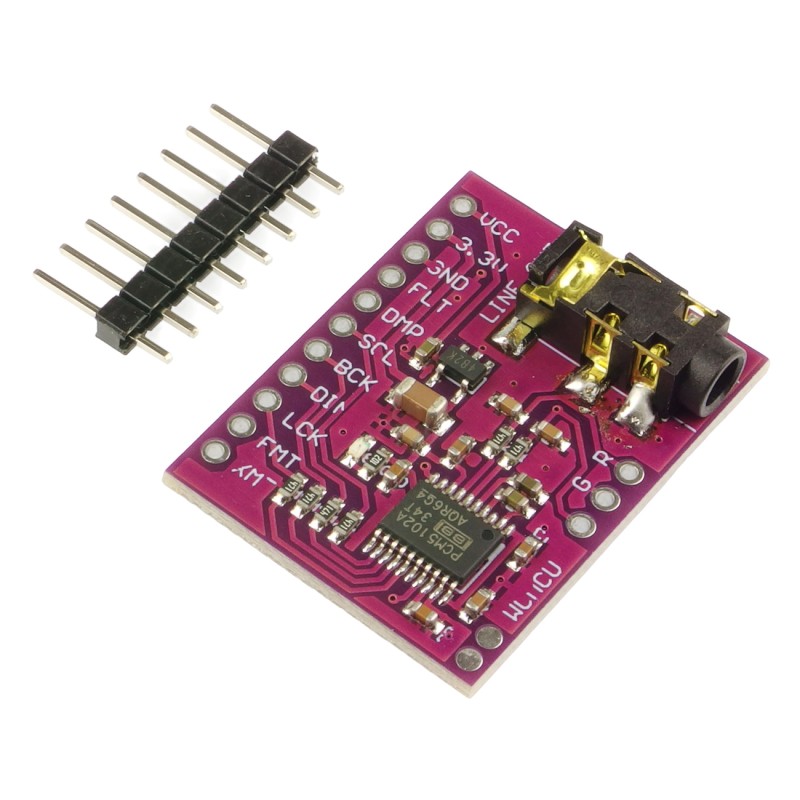

GY-PCM5102 - audio module with PCM5102A DAC converter
ID: 582993
5906623474585
zł27.23
Tax included
zł22.14 tax excl.
Audio module based on a 32-bit PCM5102A DAC converter intended for cooperation, among others with Raspberry Pi minicomputers. Communication via the I2S interface. GY-PCM5102
Description
Audio module based on a 32-bit PCM5102A DAC. The system offers a sampling frequency of up to 384 kHz and is characterized by a low noise level and integrated audio PLL. The board is equipped with a 6-pin connector with a derived I2S interface and an audio jack connector for connecting the output signal. It has a built-in voltage stabilizer, so it can be supplied with both 3.3 V and 5 V. The module will be perfect for building your own audio system based on the Raspberry Pi.
Features
- DAC channels: 2
- DAC SRN: 112 dB
- Sampling frequency: 384 kHz
- Interface: I2S
- Data format: PCM
- Resolution: 32 bits
- Very low noise level
- Integrated high-performance audio PLL
- Intelligent mute system
- Power supply: 3.3 V or 5 V
- Dimensions: 31.9 x 16.9 mm
Kit contains
- GY-PCM5102 module
- Straight 6-pin goldpin connector
582993
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
