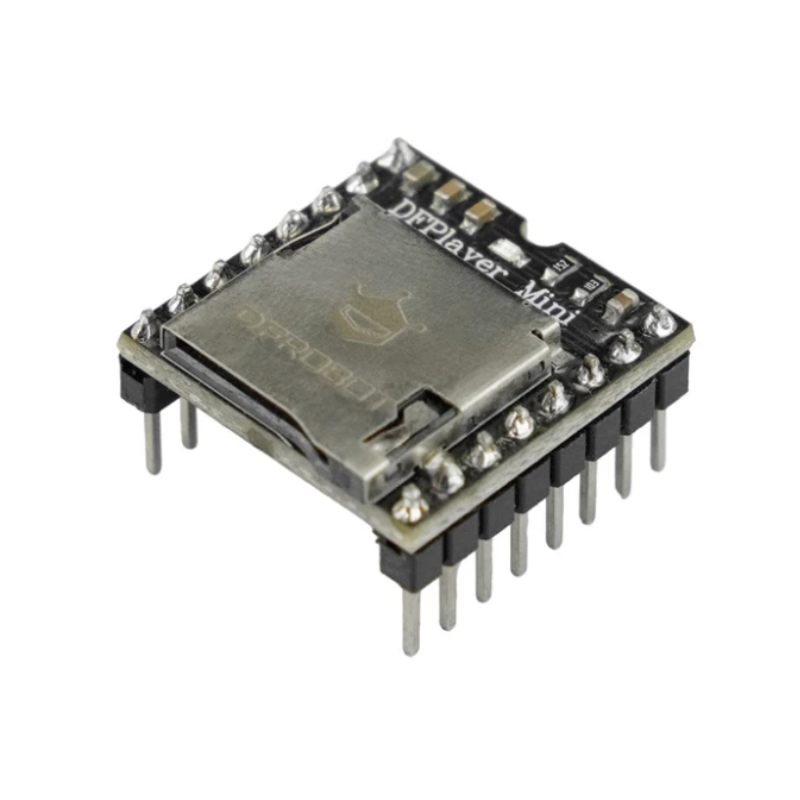

DFPlayer - mini MP3 player
ID: 584537
5906623476114
zł25.12
Tax included
zł20.42 tax excl.
Mini MP3 player with microSD card support. It can work as a separate device and play sounds from the card or be controlled via the UART serial interface. DFRobot DFR0299
Description
Mini MP3 player with microSD card support. It can work as a separate device and play sounds from the card in FAT16 or FAT32 format or be controlled via the UART serial interface using an external board, eg Arduino. The device can handle files in WAV, MP3 or WMA format. It will be perfect for projects that require broadcasting voice messages or playing sounds. Full documentation is available on the product Wiki page.
Features
- Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
- 24 -bit DAC output, support for dynamic range 90dB, SNR support 85dB
- Fully supports FAT16, FAT32 file system, maximum support 32G of the TF card, support 32G of U disk, 64M bytes NOR FLASH
- A variety of control modes, I/O control mode, serial mode, AD button control mode
- Advertising sound waiting function, the music can be suspended. when advertising is over in the music continue to play
- Audio data sorted by folder supports up to 100 folders, every folder can hold up to 255 songs
- 30 level adjustable volume, 6 -level EQ adjustable
- Power supply: 3.2 to 5V
- Current consumption: 20 mA
584537
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
