ATMEL-ICE v2 Signal Breakout Cable, Unterminated
ID: 560865
zł9.90
Tax included
zł8.05 tax excl.
The cable that outputs the ATMEL ICE programmer signals without insulated terminals
Description

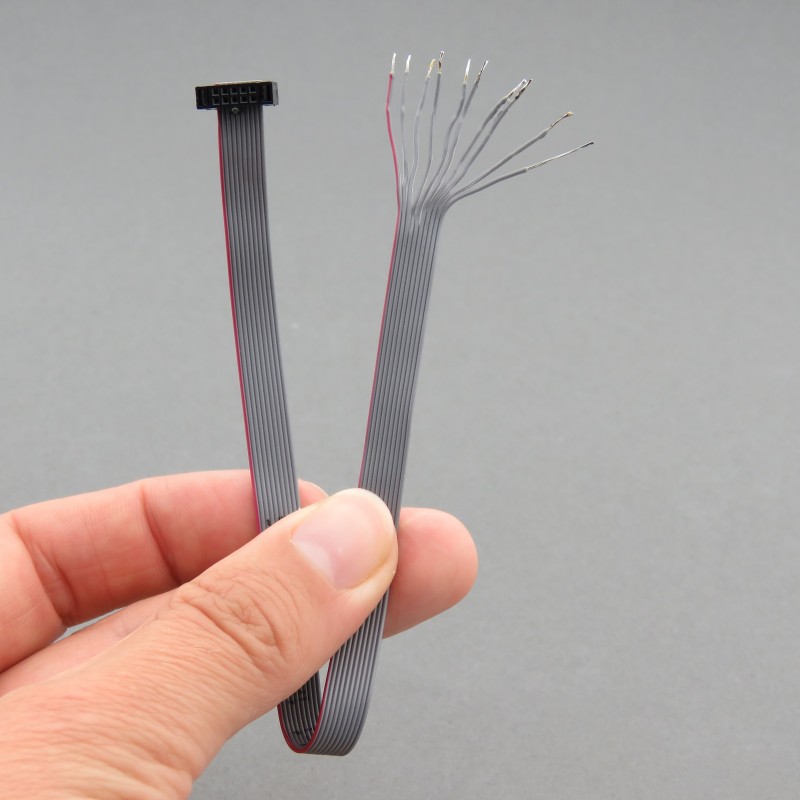

The Atmel-ICE v2 signal breakout cable is designed for use with AVR and ARM Cortex-M microcontrollers during programming and debugging. On one end, it features a 10-pin female connector with a 1.27 mm (50 mil) pitch, compatible with the Atmel-ICE programmer. On the other end, the individual signal wires are separated and finished with uninsulated (unterminated) ends.
The split-wire design allows flexible connection of individual signal lines to solder pads, test points, or pin headers on prototype boards and target PCBs.
Note!
In version v2, wire number 1 is marked with a red stripe!
Features
- Purpose: Atmel-ICE v2 programmer
- Cable type: signal breakout (mini-squid cable)
- Number of wires: 10
- Programmer-side connector: 10-pin female
- Connector pitch: 1.27 mm
- Wire ends: unterminated (bare leads)
- Cable type: flat ribbon cable
- Cable color: gray with red stripe indicating pin 1
- Application: programming and debugging AVR and ARM microcontrollers
