This development board for building robots and mechatronics projects features 2.4 GHz Wi-Fi and Bluetooth 5.2 connectivity. Based on the RP2350 microcontroller (Dual Arm Cortex-M33 up to 150 MHz, 520 KB SRAM, 4 MB QSPI Flash), it allows you to control two DC motors via a DRV8833C H-bridge and support up to six servos. It features 12 addressable RGB (Neopixel) LEDs, ADC inputs, numerous GPIOs, and two Qw/ST headers for connecting sensors. Pimoroni PIM733

4 weeks
Awaiting delivery
Kamami is the official distributor of Pimoroni modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

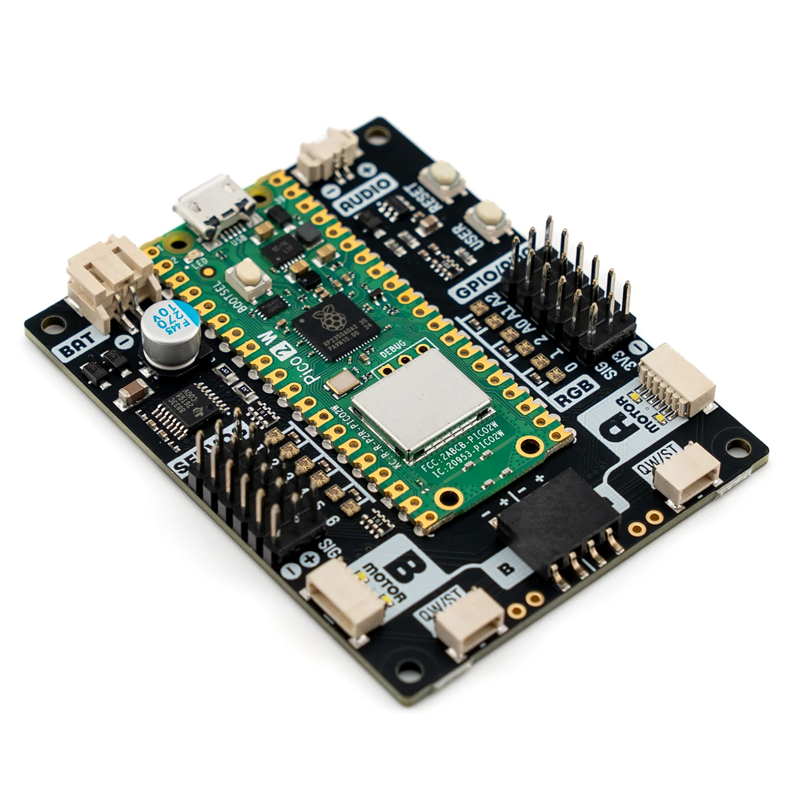

Inventor 2350 W is a versatile development board designed for building battery-powered robots, props, and mechanical constructions with wireless connectivity. At its core is the Raspberry Pi Pico 2 W featuring the RP2350 microcontroller with modern Arm Cortex-M33 cores and high performance. Thanks to built-in 2.4 GHz Wi-Fi and Bluetooth 5.2, your projects can communicate with the internet, APIs, or other devices without additional modules. The board allows control of two DC motors (including encoder support) via a dual H-bridge DRV8833C driver. It can also drive up to six hobby servos, making it an ideal platform for walking robots and robotic arms.

Inventor 2350 W includes a speaker connector, enabling projects to generate sound effects and audio signals. A JST-PH battery connector allows powering the board from LiPo batteries or AA/AAA battery holders within a 2.5–5.5 V range. Onboard 12 addressable RGB LEDs (NeoPixel) provide rich lighting effects and status indication. The board also features analog inputs (ADC), additional GPIO pins, and two Qw/ST connectors for quick sensor and expansion module integration. It comes fully assembled and requires no soldering, allowing you to start building immediately. Programming in MicroPython simplifies development of custom control applications. The enhanced RP2350 performance delivers up to twice the speed of RP2040 in MicroPython benchmarks, making it an excellent choice for robotics, IoT projects, and mechatronics enthusiasts.

Features

  • Microcontroller: RP2350 (Dual Arm Cortex-M33 up to 150 MHz, 520 kB SRAM)
  • Memory: 4 MB QSPI Flash (XiP)
  • Connectivity: Wi-Fi 2.4 GHz 802.11n, Bluetooth 5.2
  • Motor driver: dual H-bridge DRV8833C
  • Motor current limit: 425 mA per motor
  • Motor encoder connectors: 2 × JST-SH (6-pin)
  • Connector for 2 DC motors or small stepper motor (4-pin, 2.54 mm pitch)
  • Speaker connector: 2-pin (Picoblade compatible)
  • Battery connector: JST-PH 2-pin (2.5–5.5 V)
  • Supports up to 6 hobby servos (3-pin headers)
  • 6 GPIO groups (3 with ADC support)
  • 12 × addressable RGB LEDs (NeoPixel)
  • 2 × Qw/ST connectors (I2C)
  • User button and Reset button
  • Power and programming via USB micro-B
  • Programming: MicroPython
  • Dimensions: 52 × 66 × 12 mm
1203785

Data sheet

Microcontroller
RP2350
Flash memory
4 MB
Number of I/O
12
Ethernet
none
WiFi/BT module
Yes
Bluetooth module
Yes
MicroSD slot
No
Length
66 mm
Width
52 mm
USB connector type
microUSB type B
