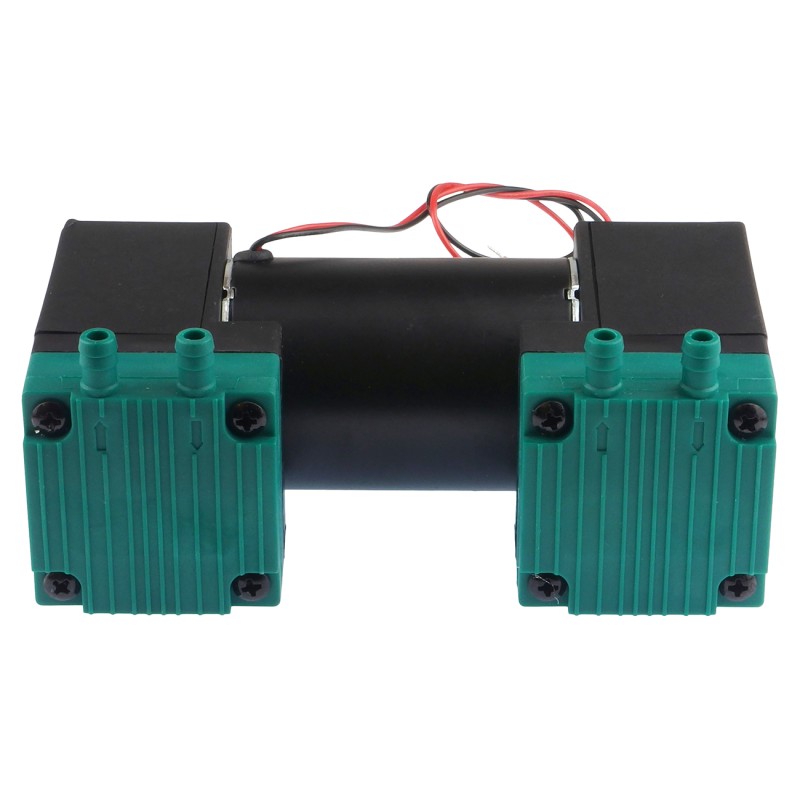

SY-020 - Vacuum pump 220V
ID: 1194485
zł212.84
Tax included
zł173.04 tax excl.
The SY-020 allows for generating a coarse vacuum at a flow rate of up to 20 L/min and a maximum vacuum pressure of -90 kPa. Its membrane construction and nylon housing support durable operation in automation systems, robotics, and laboratory equipment. The device's parameters allow for integration into compact systems requiring a stable 220 V AC vacuum source
Description
The SY-020 micro vacuum pump is designed for 220 VAC operation and utilizes a diaphragm mechanism. Its nylon construction provides increased wear resistance and stable operation in applications requiring continuous vacuum or overpressure generation. The device operates as an air-operated medium, making it suitable for use in vacuum systems, vacuum gripper systems, laboratory equipment, and automation and robotic applications requiring a compact vacuum source.
The SY-020 model achieves a flow rate of ≥20 L/min (1.2 m³/h) and a pumping speed of 0.3 L/s. Its maximum operating pressure is -90 kPa, allowing for a rough vacuum with a final pressure of 0.09 Pa. The 6 mm outlet port diameter facilitates integration with typical pneumatic lines used in low-pressure systems. Its compact dimensions of 151 x 51 x 84 mm enable installation in device enclosures, test stands, and automation modules.
The 0.025 kW electric drive ensures stable operating parameters while maintaining moderate energy consumption. The dual-rotor design supports uniform vacuum generation and increases the durability of the operating system.
Features
- Model: SY-020
- Power supply: 220 V AC
- Operating principle: diaphragm pump
- Working medium: air
- Flow rate: ≥20 L/min
- Volume output: 1.2 m³/h
- Pumping speed: 0.3 L/s
- Maximum operating pressure: -90 kPa
- Ultimate pressure: 0.09 Pa
- Power: 0.025 kW
- Outlet diameter: 6 mm
- Dimensions: 151 × 51 × 84 mm
- Housing material: nylon
- Number of impellers: 2
- Headroom height: 1 m
