Gravity: Digital Peristaltic Pump - peristaltic pump with controller
ID: 569880
5902186313439
zł110.74
Tax included
zł90.03 tax excl.
Gravity: Digital Peristaltic Pump is a peristaltic pump with a controller and a connector compatible with modeling servos. The set is powered by 5 ... 6 V. DFRobot DFR0523
Description

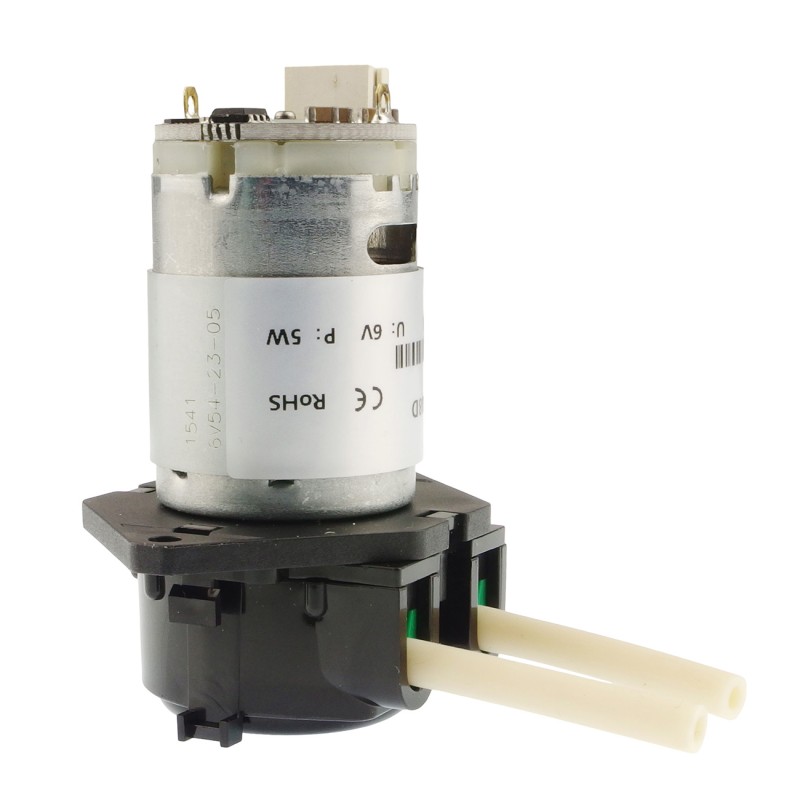

Gravity: Digital Peristaltic Pump is a peristaltic pump designed for systems that monitor the quality of liquids. At the end of the pump, a plate with a controller and a connector compatible with the Gravity interface from DFRobot is attached. Outputs on the connector are compatible with modeling servo connectors, thanks to which the system can be controlled using popular sets such as Arduino , Raspberry Pi or any microcontroller. The controller can be supplied with a voltage of 5 ... 6 V and requires a current source up to 2.5 A. The tube in the head, which transports the liquid, is made of a special, antibacterial material, which is additionally characterized by a long service life. Thanks to this, the module with peristaltic pump can be used in scientific experiments, dosing systems in aquariums or in the food and medical industry equipment for precise dosing of liquids.
Attention!
Due to the high engine power (5 W), in the case of use of power kits, it is recommended to use an external power supply, because the USB port can provide only 2.5 W of power.
properties
Controller:
- Maximum current consumption in continuous operation: 1.8 A (2.5 A at peak)
- Range of PPM signal control: 500 ... 2500 us
- The frequency of the PPM signal: 50 Hz
- Gravity connector
- Supply voltage: 5 ... 6 V
- Board dimensions: 27.4 x 28.7 mm
Peristaltic pump:
- DC motor
- Power supply: 6V
- Power: 5 W
- Tube material: BPT
- Tube dimensions: inside diameter 2.5 mm, outer diameter 4.5 mm
- Pulsation: three rolls
- Flow: ≥45 ml / min
- Operating conditions: temperature range 0 ~ 40 ?, relative humidity <80%
Included
- Gravity: peristaltic pump with controller
- Gravity connection cable
- Silicone tube
- Plastic cylinder 10 mL
569880
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
