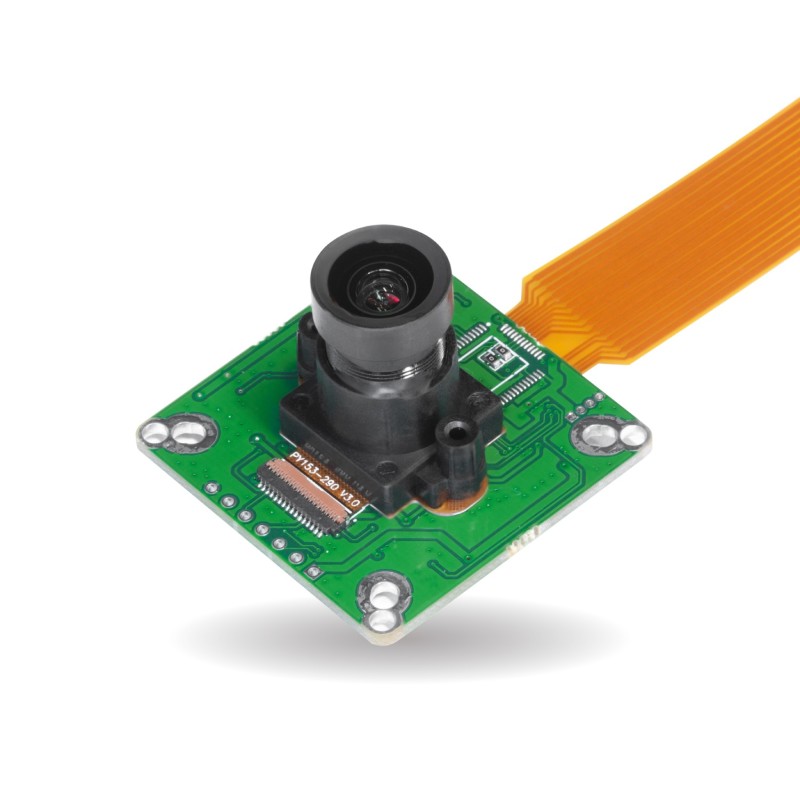

ArduCAM 2MP IMX290 Camera Module - IMX290 2MP camera for Raspberry Pi
ID: 1190079
The camera is equipped with an ultra-sensitive Sony STARVIS IMX290 image sensor, which allows for recording in very low light conditions. It has an interchangeable M12 lens with an 88° viewing angle (HFOV), which provides a wide field of view. Thanks to advanced imaging technology, it is ideal for night conditions and minimal light. ArduCAM B0408
Description
The camera based on the ultra-sensitive Sony STARVIS IMX290 sensor is an excellent solution for use in challenging lighting conditions. Thanks to its high sensitivity and advanced image processing technology, it enables clear and detailed image capture even in complete darkness. Equipped with a replaceable M12 lens with an 88° HFOV, the camera allows for easy lens swapping—e.g., with the LK005 model—providing configuration flexibility depending on your project’s needs.
Fully compatible with Raspberry Pi 3, 4, 5, Zero, as well as CM3 and CM4, the camera is ideal for vision systems, surveillance, robotics, or IoT projects. It requires no additional driver installation, significantly speeding up integration and deployment. The device offers smooth video recording with up to 90 frames per second at 1280×720 resolution and up to 46 fps at 1920×1080. The standard Full HD (1080p) mode provides a stable 30 fps. Featuring high technical specifications and robust build quality at an attractive price, the camera is a great choice for both hobbyists and professionals.
Features
- Image sensor: Sony STARVIS IMX290
- Resolution: 2 MP (1920 × 1080)
- Sensor optical size: 1/2.8” (diagonal 6.46 mm)
- Pixel size: 2.9 μm × 2.9 μm
- Shutter type: Rolling Shutter
- Color filter: Quad-Bayer RGB
- Supported platforms: Raspberry Pi 5/4/3/Zero/CM3/CM4
- Frame rates:
- RAW10: 1920×1080 @ 46 fps, 1280×720 @ 90 fps
- RAW12: 1920×1080 @ 46 fps, 1280×720 @ 90 fps
- Output format: RAW10 / RAW12
- Lens: M12, 3.6 mm (2G2P+IR), F2.8
- Manual focus adjustment
- Field of view (FOV): 120° (D), 88° (H), 55° (V)
- IR filter: passes only visible light
- Module dimensions: 38 × 38 × 20.67 mm
Kit contains
- Arducam 2MP IMX290 camera
- FPC ribbon cable 150 mm (15-pin to 22-pin)
1190079
Data sheet
- Resolution
- 2Mpx
- Interface
- MIPI CSI-2
- Sensor
- IMX290
- IR filter
- Yes
- Lens assembly
- M12
