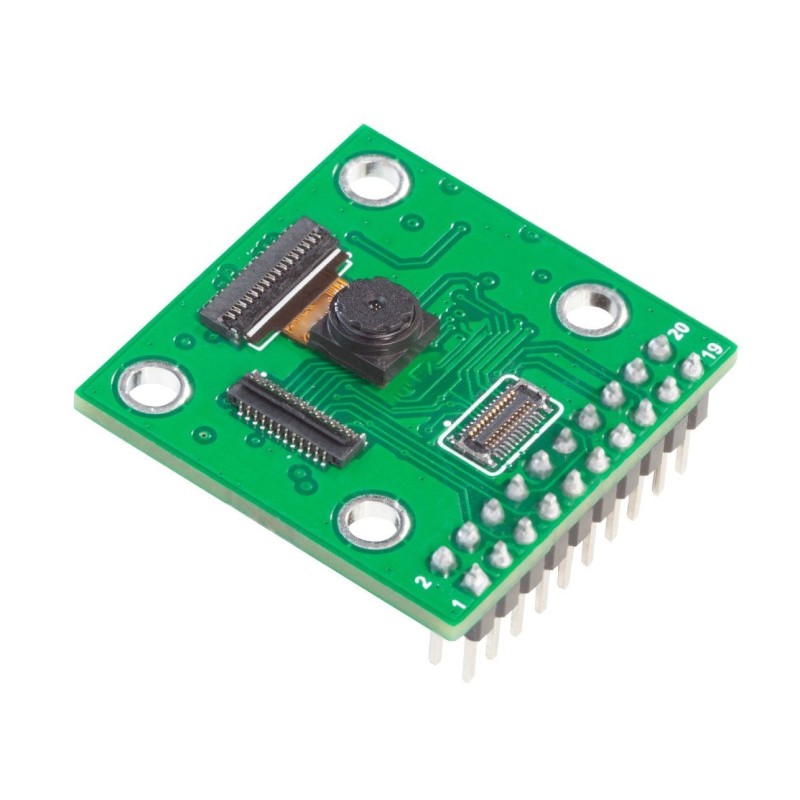

Arducam B0461 VGA Mono HM0360 DVP Camera for Arduino GIGA R1
ID: 1195230
zł46.56
Tax included
zł37.85 tax excl.
The Arducam B0461 camera module with the HM0360 sensor offers energy-efficient monochrome image capture in VGA resolution. Compatibility with Arduino GIGA R1 WIFI and a wide temperature range make it suitable for embedded projects, robotics, and IoT applications.
Description
Camera module based on the HM0360 CMOS sensor with back-side illumination (BSI), designed for energy-efficient vision applications such as detection, classification, and object tracking. It supports RAW8/RAW4 output and operates at VGA (640×480) resolution at 15 fps or lower resolutions at higher frame rates. Compatibility with Arduino GIGA R1 WIFI and the GIGA Display Shield enables quick integration with embedded systems and prototyping platforms. Low power consumption and a fixed-focus lens with a 64° field of view make the module suitable for portable and battery-powered applications.
Features
- Image sensor: HM0360 1/6″, VGA (640×480), pixel size 3.6 µm
- Image output format: RAW8/RAW4
- Fixed-focus lens 2.59 mm, F2.8, field of view 64° (D)
- Frame rate: 640×480 at 15 fps, 320×240 or 160×120 at 30 fps
- Monochrome filter, electronic shutter
- Built-in functions: dead pixel correction, automatic exposure and gain, ambient light sensor, zonal detection
- Power supply voltages: AVDD 2.8 V, DOVDD 1.8 V, DVDD 1.2 V
- Operating temperature: –30°C to +85°C, stable image range: 0–50°C
- Board dimensions: 30.5 × 30.5 mm
- Compatibility: Arduino GIGA R1 WIFI and GIGA Display Shield
1195230
Data sheet
- Resolution
- 640 x 480 px
- Interface
- DVP
- Sensor
- HM0360
- IR filter
- No
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
