zł1,706.50 tax excl.
Set with a 48 MP camera equipped with an IMX586 sensor. Equipped with digitally controlled focus. Included with a USB 3.0 adapter and cable. ArduCAM EK032
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
A set with a camera and a USB 3.0 adapter allowing you to connect the module via a USB port. The camera is equipped with an IMX586 sensor with a 48 MP matrix and allows you to record video at a resolution of 8000x6000@2fps. It has a built-in digitally controlled focus. It is perfect for demanding applications such as microscopes, medical devices and UAVs.
USB3 Camera Shield is a module with a USB 3.0 interface dedicated to ArduCAM cameras. Supports sensors with MIPI interface. It has a built-in hardware frame buffer, which ensures good data throughput. Moreover, thanks to the built-in buffer, it supports the synchronized operation of many cameras processing images at the same time. It can work with both PCs and embedded systems, including: Raspberry Pi, Odroid, Beaglebone Black, Nvidia Jetson TK/TX.
Features
- IMX586 sensor
- Resolution: 1920x1080 at 30 fps, 4000x3000 at 8 fps, 8000x6000 at 2 fps
- Sensor output format: DNG/JPEG
- Exposure control range: 63us-33333us
- Gain control range: 1.0-64.0 times
- Focus control range: 10cm-INF
- Focal length: 5.1 mm
- Field of View (FOV): 88°(D)x72°(H)x54.6°(V)
- F.NO: F1.8
- Focus type variable focus
- Power supply: 5V/0.38A
- Working temperature: 0-50℃
- Dimensions: 40 x 40 mm
Kit contains
- Arducam 48MP IMX586 USB3.0 Camera
- FFC 22-pin 38 mm tape
- USB3.0 Camera Shield Adapter
- USB 3.0 cable
Data sheet
- Resolution
- 48 MPx
- Interface
- USB 3.0
- Sensor
- IMX586
- IR filter
- Yes
- Lens assembly
- none
You might also like
The latest version of the Raspberry Pi series: Raspberry Pi 4 model B with quad-core SoC (Broadcom BCM2711, Cortex-A72) working at 1.5GHz, 2GB RAM LPDDR4, Broadcom VideoCore VI.
The long-awaited Raspberry Pi 4 model B with the SoC Broadcom BCM2711 SoC (4 x Cortex-A72) running at 1.5GHz, 4 GB LPDDR4 RAM and the Broadcom VideoCore VI graphics chip
Other products in the same category (16)
Camera module with Sony IMX219 sensor designed for Raspberry Pi 5 users. It offers a resolution of 8 MP (3280 x 2464 pixels) and a wide viewing angle of 120°. Comes with FPC CSI tape. Waveshare Pi5-IMX219-120
No product available!
QVGA monochrome camera module with HM01B0 sensor working with Raspberry Pi Pico. It uses 1 bit video interface and I2C to configure the registers. ArduCAM B0315
Camera module based on the CMOS MT9V022 matrix with a resolution of 752x480 px (0.36 MPx). Designed for use with ArduCAM USB Shield. ArduCAM B0109
Camera with a global shutter designed for Raspberry Pi minicomputers. Works with all versions of minicomputers with a CSI slot. The camera is equipped with a Sony IMX296 sensor with a resolution of 1.5 MPx and a built-in IR filter. Raspberry Pi Global Shutter Camera
Camera module for Raspberry Pi minicomputers with IR-CUT filter. Equipped with an OV5647 (5 MPx) sensor, it supports image acquisition both during the day and at night. Waveshare 15203

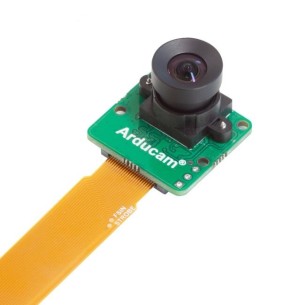

Camera with OV9282 sensor designed for DepthAI OAK modules. The set includes a lens and an adapter. ArduCAM B0297
