Arducam B0463 VGA OV7675 RGB DVP Camera for Arduino GIGA R1
ID: 1195228
zł27.92
Tax included
zł22.70 tax excl.
The Arducam B0463 camera with the OV7675 sensor captures images in VGA resolution and RGB/YUV format, enabling use in vision systems based on Arduino GIGA R1. Its compact design and low power consumption make it suitable for battery-powered projects and applications in robotics and IoT.
Description

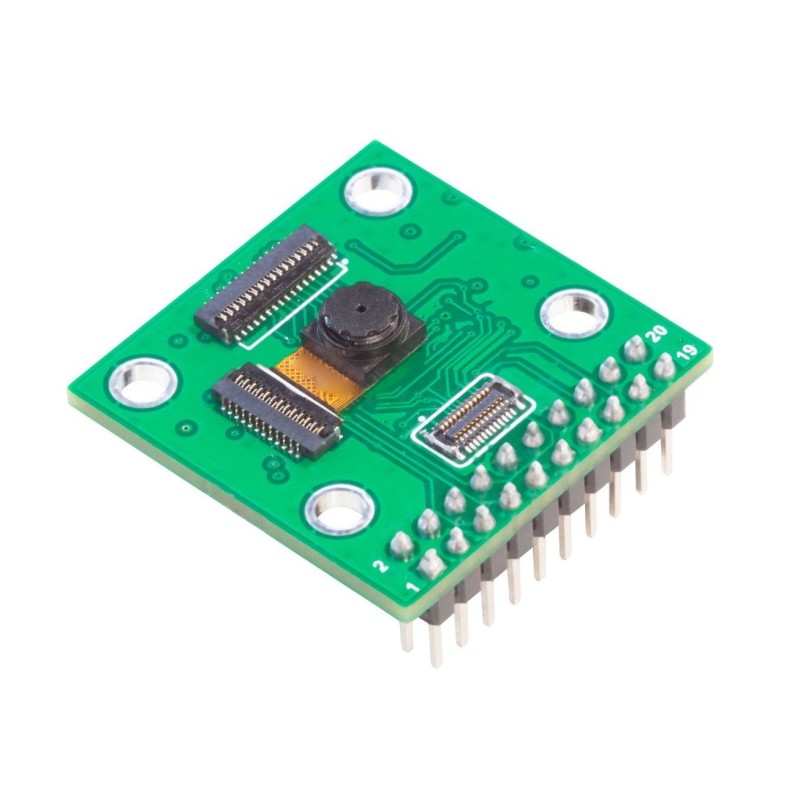

Camera module based on the OV7675 CMOS sensor with VGA (640×480) resolution, equipped with a color Bayer filter and DVP interface. It supports RAW, RGB, and YUV output formats, enabling versatile image processing in embedded applications. The built-in fixed-focus lens with a 63.9° field of view and 1.75 mm focal length provides sufficient image detail with fixed focus from 2.7 m. The camera is designed to work with the Arduino GIGA R1 WIFI board and the GIGA Display Shield, offering energy-efficient image capture for IoT, robotics, and vision processing projects.
Features
- Image sensor: OV7675 1/9″, VGA (640×480), pixel size 1.75 µm
- Supported formats: RAW, YUV422, RGB565
- Fixed-focus lens 1.75 mm, F2.8, field of view 63.9° (D)
- Focus range: from 2.7 m to infinity
- Frame rate: 640×480, 320×240, 160×120 at 15 fps
- Electronic shutter, color sensor with RGB filtering
- Power supply voltages: AVDD 2.7–3.0 V; DOVDD 1.7–3.0 V; DVDD 1.8 V
- Operating temperature: –30°C to +70°C
- Board dimensions: 30.5 × 30.5 mm
- Compatibility: Arduino GIGA R1 WIFI and GIGA Display Shield
1195228
Data sheet
- Resolution
- 640 x 480 px
- Interface
- DVP
- Sensor
- OV7675
- IR filter
- No
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
