Night Vision HD Camera (H) Wide-Angle for Raspberry Pi with IR Illuminator and Adjustable Focus - Waveshare 10703
ID: 560345
5906623421626
zł105.63
Tax included
zł85.88 tax excl.
Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View, Supports Night Vision
Features
- Raspberry Pi Camera, supports all revisions of the Pi
- Fisheye Lens, offers wider field of view
- Comes with infrared LED, supports night vision
- 5 megapixel OV5647 sensor
- Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 2.35
- Focal Length : adjustable
- Field of View : 160 degree (while other normal cameras are typically 72 degree)
- Diagonal angle : 160 degree
- Horizontal angle : 120 degree
- Sensor best resolution : 1080p
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED

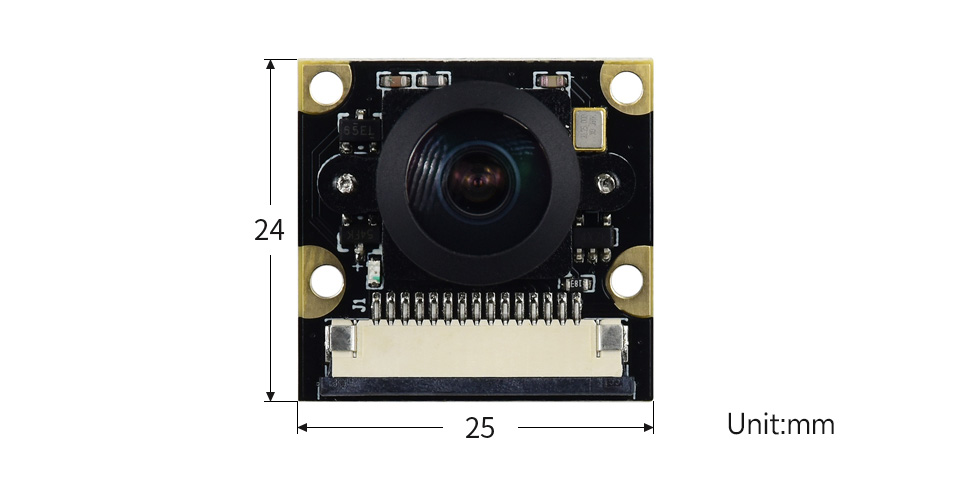

- Dimension: 25mm x 24mm
Downloads
Development resources: user manual, etc.
Download: www.waveshare.com/wiki/RPi_Camera_(H)
Selection Guide
| Partnumber | Pixels | Sensor | Adjustable-focus | Infrared Night Vision | Angle of View (degree) | Manufacturer | Dimensions (mm) | Recommendation 1 |
|---|---|---|---|---|---|---|---|---|
| RPi Camera | 5 Mega | OV5647 | × | × | 72.4 | element14 | 25x24x9 | ? |
| RPi Camera V2 | 8 Mega | IMX219 | × | × | 73.8 | element14 | 25x24x9 | ???? |
| RPi NoIR Camera V2 | 8 Mega | IMX219 | × | √ | 73.8 | element14 | 25x24x9 | ???? |
| RPi Camera (B) | 5 Mega | OV5647 | √ | × | 75.7 | Waveshare | 32x32 | ??? |
| RPi Camera (C) | 5 Mega | OV5647 | × | × | 72.4 | - | 25x24x9 | ?? |
| RPi Camera (D) | 5 Mega | OV5647 | × | × | 72.4 | Waveshare | 25x24x9 | ?? |
| RPi Camera (E) | 5 Mega | OV5647 | × | √ | 72.4 | Waveshare | 25x24x6 | ?? |
| RPi Camera (F) | 5 Mega | OV5647 | √ | √ | 75.7 | Waveshare | 25x24 | ???? |
| RPi Camera (G) | 5 Mega | OV5647 | √ | × | 160 | Waveshare | 25x24 | ???? |
| RPi Camera (H) | 5 Mega | OV5647 | √ | √ | 160 | Waveshare | 25x24 | ???? |
| RPi Camera (I) | 5 Mega | OV5647 | √ | × | 170 | Waveshare | 32x32 | ??? |
| RPi Camera (J) | 5 Mega | OV5647 | √ | × | 222 | Waveshare | 25x24 | ???? |
| RPi IR-CUT Camera 2 | 5 Mega | OV5647 | √ | √ | 75.7 | Waveshare | 31x32 | ???? |
| RPi Zero V1.3 Camera | 5 Mega | OV5647 | × | × | 72.4 | Waveshare | 60x11.5x5 | ??? |
- The recommendation is considered from sales report and cost performance.
- While normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, the RPi IR-CUT Camera can take better pictures in correct color by daylight, and still features the ability to see in the dark.
-
Weight: 0.058 kg
- RPi Camera (H) × 1
- Infrared LED Board (B) × 2
- 15-pin FFC (opposite sides contact) × 1
560345
Data sheet
- Resolution
- 5MPx
- Interface
- MIPI CSI-2
- Sensor
- OV5647
- IR filter
- No
- Lens assembly
- none
