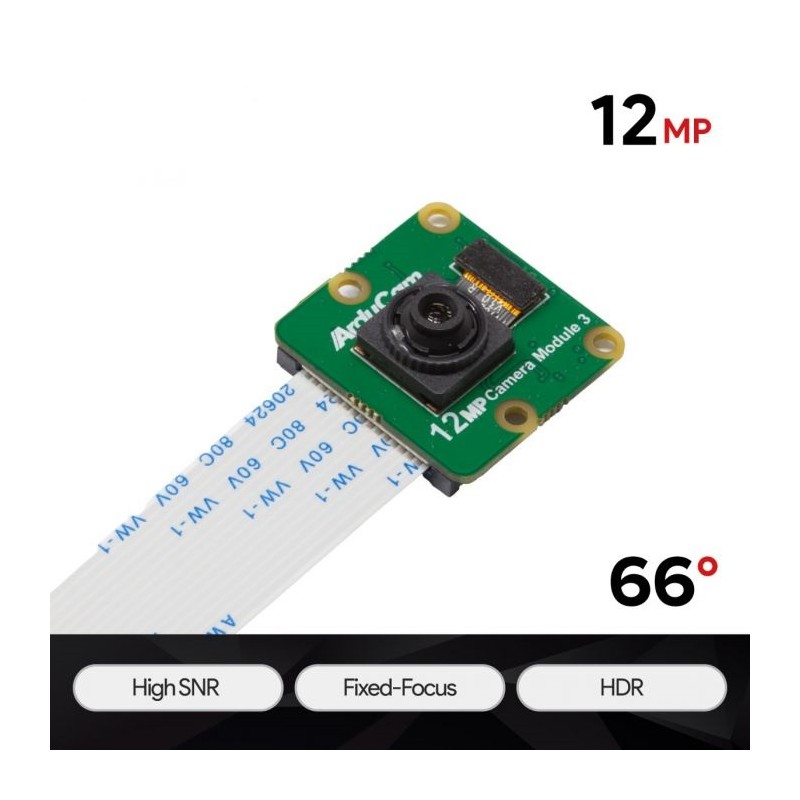

ArduCAM 12MP IMX708 Fixed Focus HDR - IMX708 camera for Raspberry Pi
ID: 1186225
5906623404742
zł121.13
Tax included
zł98.48 tax excl.
The camera is equipped with an IMX708 image sensor dedicated to the Raspberry Pi. It offers a resolution of 12 MPx (4608 x 2592 px) and allows you to obtain very detailed photos and videos. The camera is equipped with an integrated IR-CUT filter and supports HDR technology. ArduCAM B0308
Description
The camera is equipped with an IMX708 image sensor dedicated to the Raspberry Pi. It allows you to record video and take photos in high quality while maintaining excellent color reproduction. It offers a resolution of 12 MPx (4608 x 2592 px) and allows you to obtain very detailed photos and videos. The camera is equipped with an integrated IR-CUT filter that eliminates interference caused by infrared light, which improves image quality and eliminates color shift. Video can be recorded in various resolutions, including 2304x1296p56, 2304x1296p30 in HDR mode and 1536x864p120, which allows you to flexibly adjust the quality and fluidity of the recorded material to different needs. It has a fixed focus so you don't have to worry about having to manually adjust the focus. This makes it easier to use the camera even for beginners. The camera was created for the Raspberry Pi and is fully supported by the libcamera and Picamera2 libraries, making it easy to connect and integrate with a minicomputer. It is compatible with all Raspberry Pi models except the Raspberry Pi 400, but a special adapter will be required to connect to the Zero series.
Features
- Image sensor: IMX708
- Resolution: 11.9 MP (4608 x 2592 pixels)
- Image area: 6.45 x 3.63mm
- Pixel size: 1.4μm x 1.4μm
- Optical Size: 1/2.43"
- Integrated IR-CUT filter
- PDAF (Phase detection auto focus) - provides smooth focus adjustment
- CSI-2 MIPI interface
- Output format: RAW10
- Video resolution: 2304x1296p56, 2304x1296p30 HDR, 1536x864p120
- Constant focus
- Focal Length: 4.74mm
- F.NO: F1.8
- FoV: 75°(D) x 66°(H) x 41°(V)
- High signal-to-noise ratio (SNR)
- DPC (Defect Pixel Correction) function
- Hardware HDR support (max. 3 Mpx)
- Compatibility with Picamera2 library
- Dimensions: 25x24mm
Kit contains
- ArduCAM 12MP IMX708 Fixed Focus HDR Camera
- FPC tape 15-pin to 22-pin 150 mm
1186225
Data sheet
- Resolution
- 11,9 Mpx
- Interface
- MIPI CSI-2
- Sensor
- IMX708
- IR filter
- Yes
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
