  • IMX219-160 Camera – 8 MP, 160° FOV, for Jetson Nano / Xavier NX - Seeed Studio 114992263
ID: 1200463
zł124.86
Tax included

zł101.51 tax excl.

The IMX219-160 camera with a 160° field of view and 8 MP resolution, designed for Jetson Nano and Xavier NX kits, enables wide-frame capture in AI and machine vision applications. The MIPI connector, 6G+IR lens, and IR filter provide high functionality in a compact form.

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

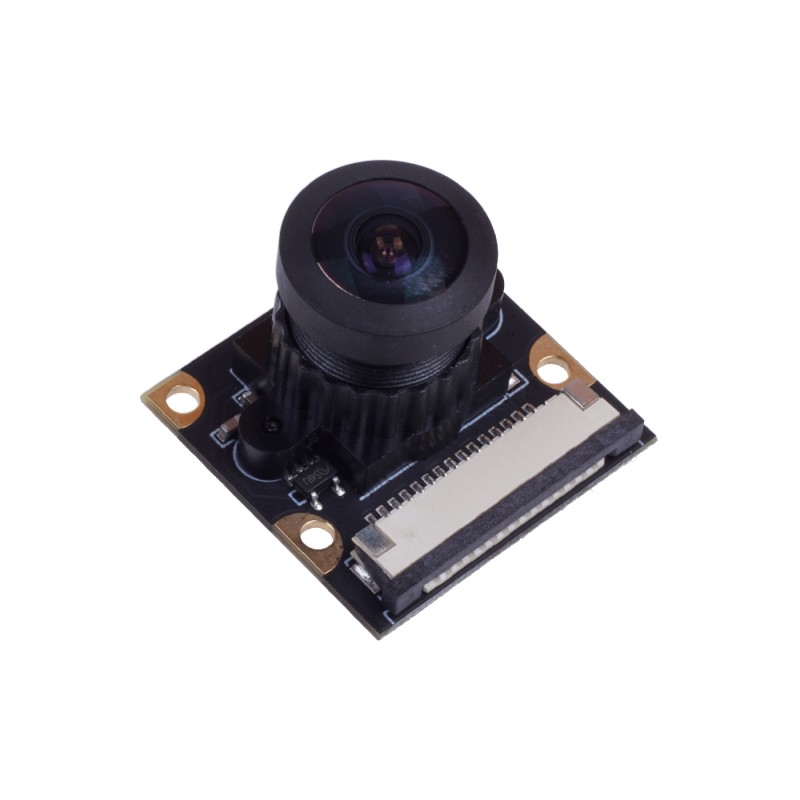

The IMX219-160 camera module with a Sony IMX219 sensor offering 8 MP resolution and an ultra-wide 160° field of view is dedicated to NVIDIA Jetson Nano and Xavier NX developer kits. It enables capturing a broad field of view, making it suitable for applications such as image analysis, monitoring, autonomous systems, and computer vision.

The 3.15 mm fixed-focus lens with 6G+IR construction and distortion below 14.3% provides a wide perspective while maintaining good image quality. The module supports QSXGA resolution at up to 30 fps and communicates via the MIPI CSI-2 interface. The built-in IR filter ensures accurate color reproduction, while the compact design allows integration into various embedded projects.

Properties

  • Sensor: Sony IMX219
  • Resolution: 8 MP (3280 × 2464)
  • Sensor format: 1/4 inch
  • Pixel size: 1.12 × 1.12 μm
  • Lens: fixed-focus, focal length 3.15 mm
  • Lens construction: 6G+IR
  • Field of view (FOV): 160° (diagonal)
  • Distortion: <14.3%
  • Aperture: f/2.35
  • Max. frame rate: 30 fps (QSXGA)
  • Output format: 8/10-bit RGB RAW
  • Interface: 15-pin MIPI connector (1.0 mm)
  • Power supply: 3.3 V (pin 15)
  • IR filter: 650 ±10 nm
  • Focus range: from 30 cm to ∞
  • S/N ratio: 39 dB
  • Dynamic range: 69 dB
  • Sensitivity: 600 mV/Lux-sec
  • Module size: 25 × 24 × 17.7 ±0.5 mm
  • Operating temperature: from -20°C to 70°C

Set includes

  • 1 × IMX219-160 8 MP camera
  • 1 × 150 mm FPC cable
1200463

Data sheet

Resolution
8MPx
Interface
MIPI
Sensor
IMX219
IR filter
Yes
Lens assembly
none
