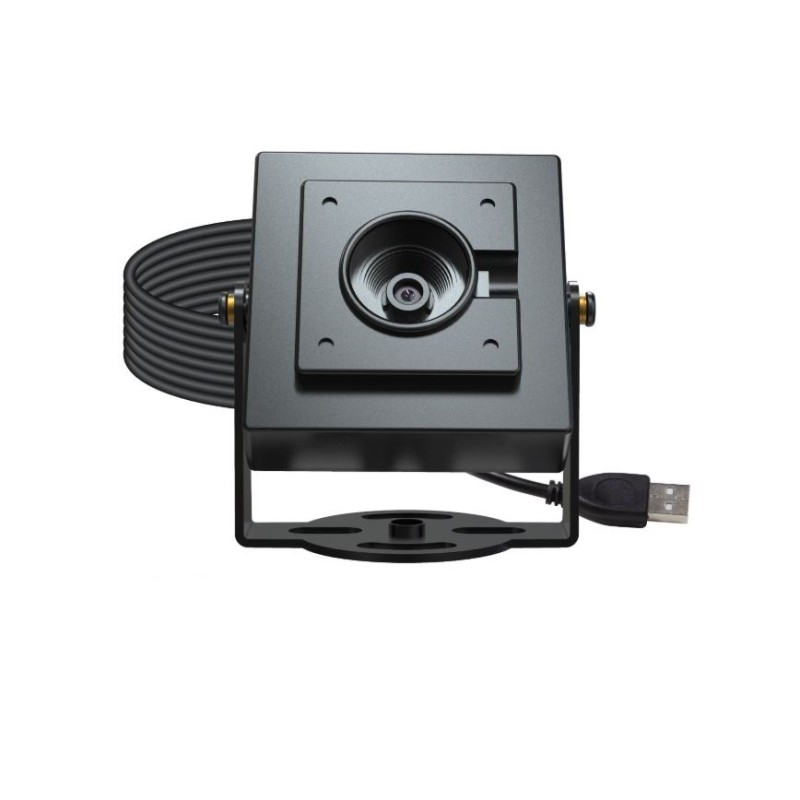

  • ArduCam B0561 – overview
  • ArduCam B0561 – camera with cable
  • ArduCam B0561 – camera dimensions
  • ArduCam B0561 – JST B4B-ZR connector
  • B0561 – camera with JST connector
ID: 1202472
zł327.45
Tax included

zł266.22 tax excl.

USB 2.0 UVC-compliant camera with a SONY 16MP sensor (4656 × 3496), autofocus, and MJPG output, used for vision systems and image acquisition on Windows and Linux. ArduCam B0561

4 weeks
Awaiting delivery
Kamami is the official distributor of ArduCAM cameras and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The ArduCam B0561 operates as a USB 2.0 camera compliant with the UVC standard and is used for image acquisition in vision systems, robotics, image analysis, and laboratory applications. The design uses a SONY 16MP color sensor with an optical size of 1/2.8″ and a pixel size of 1.12µm × 1.12µm. The “full sensor coverage” mode enables use of the entire active sensor area without in-device cropping.

The optical system with autofocus supports an effective focus range from 10 cm to infinity. Support for lower resolutions (including 480p, 720p, and 1080p) allows digital PTZ (Pan/Tilt/Zoom) adjustments without physically moving the camera. The UVC interface enables operation without additional drivers, with control of parameters such as brightness, contrast, saturation, white balance, exposure, gain, and focus (auto/manual), depending on the application used.

Features

  • Sensor: SONY 16MP color CMOS
  • Still image resolution: 16 megapixels
  • Maximum resolution: 4656 × 3496
  • Shutter type: Rolling shutter
  • Optical format: 1/2.8″
  • Pixel size: 1.12µm × 1.12µm
  • Sensor active area: 4656(H) × 3496(V)
  • Output format: MJPG
  • IR sensitivity: Integrated 650 nm IR filter, visible light only
  • Frame rates: 4656×3496@10fps, 4000×3000@15fps, 3840×2160@25fps, 3264×2448@25fps, 2592×1944@25fps, 1920×1080@25fps
  • Focus type: Autofocus
  • Field of view (FOV): 78°(D) × 65°(H) × 52°(V)
  • Lens aperture: F1.8
  • Effective focal length: 3.95 mm
  • Focus range: 10 cm – ∞
  • Interface: USB 2.0
  • Connector: B4B-ZR JST
  • Power supply: 5 V
  • Power consumption: 1.75 W
  • Operating temperature: 0°C to 70°C
  • Camera board dimensions: 32 × 32 × 1.6 mm
  • Supported operating systems: Windows, Linux
  • Sample applications: AMCap (Windows), qv4l2 (Linux)

Kit includes

  • 1× ArduCam B0561 USB 2.0 UVC 16MP camera
  • 1× USB 2.0 to B4B-ZR JST cable, 1 m
1202472

Data sheet

Resolution
4656 × 3496
Interface
USB 2.0
Sensor
SONY
IR filter
Yes
Lens assembly
none
