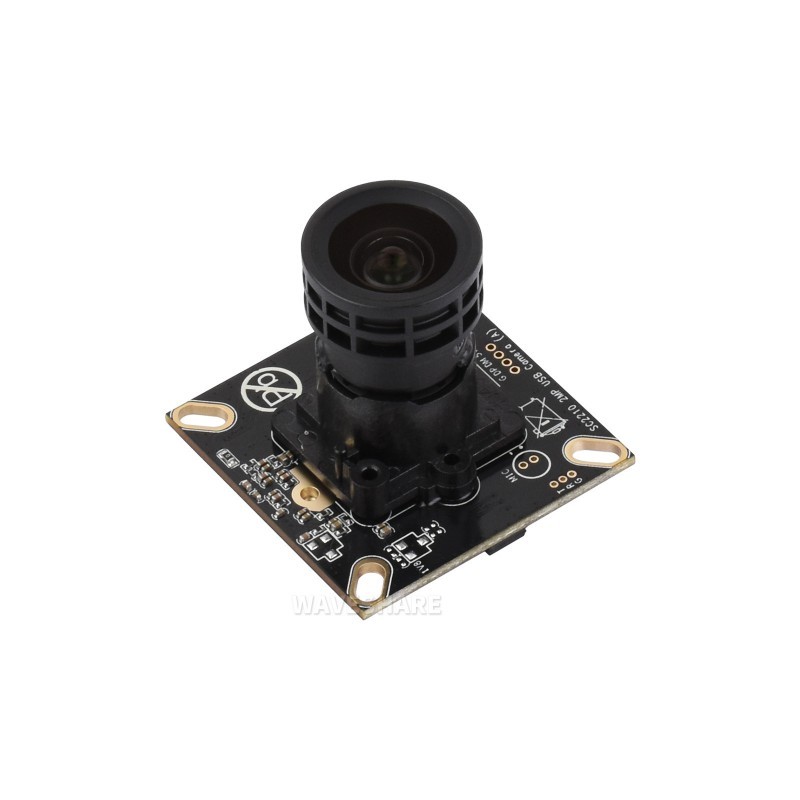

USB2.0 camera module with SC2210 2MPX sensor M12 - Waveshare 32810
ID: 1202644
zł269.92
Tax included
zł219.45 tax excl.
USB2.0 starlight camera module with an SC2210 sensor and 2 MPX resolution, equipped with an M12 lens with F1.0 aperture, designed for low-light image capture and integration with Windows, Linux, and macOS systems. Waveshare SC2210 2MP USB Camera (A)
Description
USB 2.0 starlight camera module based on the SC2210 image sensor with a resolution of 2 MPX, designed for image acquisition in low-light environments. The use of a large image sensor with a diagonal of 1/1.8 inch combined with a bright M12 lens featuring an F1.0 aperture enables detailed image capture with reduced noise levels, both in night-time conditions and indoor environments with limited illumination.
Communication via a USB 2.0 interface compliant with the UVC standard allows plug and play operation without the need to install drivers on Windows, Linux, or macOS systems. Support for MJPG and YUY2 image formats enables straightforward integration with image processing software, machine vision applications, and monitoring systems. The fixed-focus lens and wide field of view make the module suitable for observation systems, video recorders, embedded projects, and IoT solutions requiring stable optical parameters.
Features
- Image sensor: SC2210
- Resolution: 2 MP
- Camera type: Starlight
- Interface: USB2.0
- Lens mount: M12
- Sensor size: 1/1.8 inch
- Aperture: F1.0
- Focal length: 5.1 mm
- Field of view: 110.8° (D), 93.1° (H), 49.6° (V)
- Focus mode: Fixed focus
- Distortion: < -12.7%
- IR filter: 650 nm
- Shutter type: Rolling shutter
- DSP: Automatic gain, exposure, and white balance control
- Supported image formats: MJPG, YUY2
- Static image resolution: 1920 x 1080
- MJPG video modes:
- 30 FPS at 1920 x 1080
- 30 FPS at 1280 x 720
- 30 FPS at 640 x 480
- YUY2 video modes:
- 15 FPS at 1280 x 720
- 20 FPS at 1024 x 576
- 20 FPS at 640 x 480
- 25 FPS at 640 x 360
- 25 FPS at 480 x 272
- 25 FPS at 320 x 240
- Communication connector: MX1.25-4P USB
- Operating voltage: 5 V ± 5%
- Operating current: 180 mA
- Operating temperature: 0°C ~ 50°C
- Dimensions: 38.00 x 38.00 x 32.20 mm
1202644
Data sheet
- Resolution
- 2Mpx
- Interface
- USB 2.0
- Sensor
- SC2210
- IR filter
- Yes
- Lens assembly
- M12
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
