USB-CAN-FD-B adapter for CAN/CAN FD bus, Windows/Linux compatible - Waveshare 28745
ID: 1197441
zł408.47
Tax included
zł332.09 tax excl.
USB-CAN-FD-B is a reliable tool for analyzing and testing CAN/CAN FD networks in industrial environments, as well as for developing applications in C#, Python, LabVIEW, and more. An ideal solution for systems with multiple CAN buses.
Description

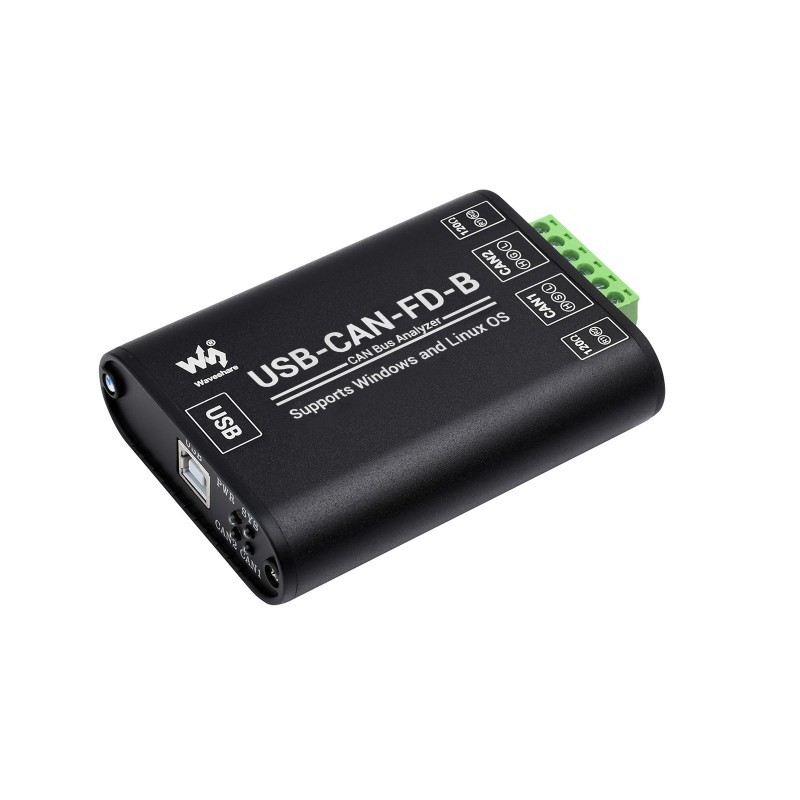

USB-CAN-FD-B is an industrial-grade USB-to-CAN/CAN FD adapter designed for protocol analysis, communication, and data conversion between USB and CAN networks. This version supports both Windows and Linux systems (including Raspberry Pi OS and Ubuntu). The device features two electrically isolated CAN FD channels, a USB-B connector, LED indicators, and an anodized aluminum enclosure with built-in surge protection. It is intended for industrial applications such as automation systems, energy communication, and smart control solutions.
Features
- USB to CAN/CAN FD interface with two independent channels (3000 VDC isolation)
- Supports CAN 2.0A/B, CAN FD (ISO 11898-1 V1.0), standard and extended frames
- Configurable transmission speed from 100 Kbps to 5 Mbps
- Transmission buffers: 64 TX and 1500 RX frames per channel, automatic retransmission
- Powered via 5 V USB port
- CAN bus connector: 5.08 mm screw terminal (OPEN6)
- Aluminum enclosure, 3D insulation inserts, operating temperature -40°C to +85°C
- System compatibility: Windows XP/7/8/10/11 and Linux (Raspberry Pi OS, Ubuntu, VMware)
- Supports multiple devices on one computer – up to 128 units simultaneously
Included in the set
- USB-CAN-FD-B module x1
- USB Type-A to Type-B cable x1
- 4-pin wire x1
- Screwdriver x1
