The USR USR-CAN315 converter enables bidirectional communication between a CAN FD bus and an Ethernet network, simplifying the integration of PLC controllers, industrial computers, automation systems, and IoT devices. Designed for DIN rail installation, the device supports the CAN FD protocol compatible with CAN 2.0A/2.0B, offering five data conversion modes, Modbus TCP support, and an industrial-grade design for reliable operation. USR CAN FD to Ethernet Converter

24h
Available
Available quantity: 9
Kamami is the official distributor of USR converters. All products of this brand in our offer are original and come directly from the manufacturer.

Description

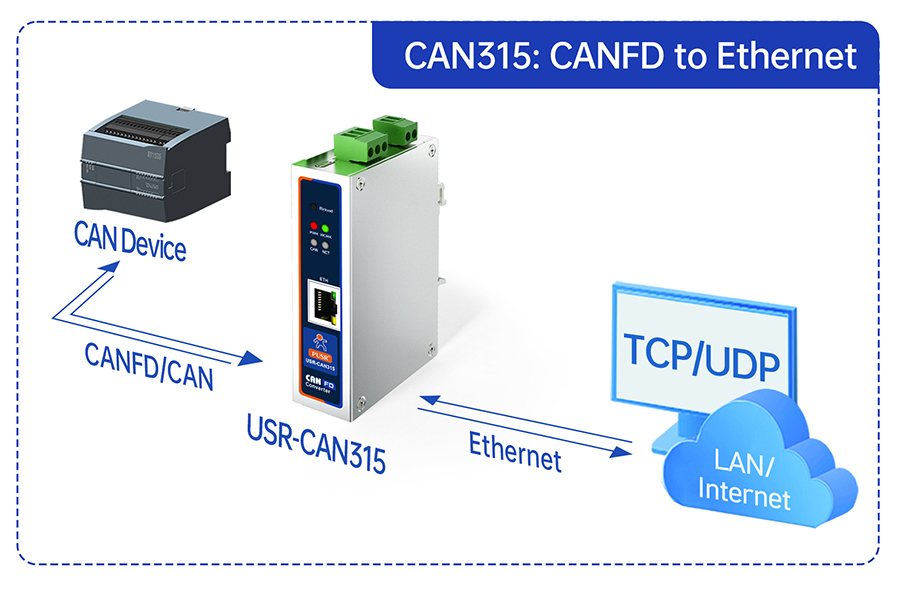

The PUSR USR-CAN315 converter is designed to connect CAN FD devices with Ethernet infrastructure. Bidirectional data transmission enables communication from the CAN bus to Ethernet networks and in the opposite direction without requiring additional gateway controllers. Support for the CAN FD protocol remains fully compatible with CAN 2.0A and CAN 2.0B, allowing the converter to operate with both modern and legacy CAN installations.

Five Data Conversion Modes

The USR-CAN315 supports:

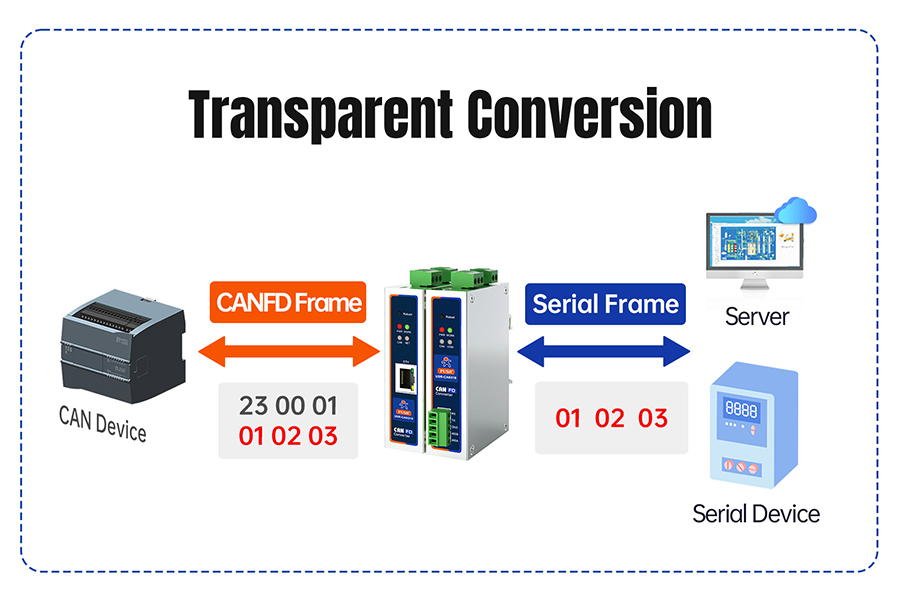

  • Transparent conversion
  • Transparent conversion with ID
  • Standard protocol conversion
  • Modbus conversion
  • Custom frame header and trailer conversion

These conversion mechanisms allow raw data forwarding, preservation of CAN frame identifiers, or adaptation of the frame structure to meet the requirements of the receiving device. Support for both standard and extended CAN frames increases compatibility with a wide range of industrial systems.


Ethernet Communication and Modbus TCP Gateway

The 10/100 Mbps RJ45 Ethernet interface supports TCP Server, TCP Client, UDP Server, and UDP Client operating modes, allowing the converter to function either as a listening server or as a client initiating network communication. The Modbus TCP Master/Slave function enables data exchange between CAN devices and Modbus-based systems, supporting up to 64 transmit messages and 64 receive messages.

The device provides 32 configurable frame ID filters, helping reduce unnecessary network traffic, while configurable packet length and packet timeout settings allow Ethernet transmission to be optimized for the frequency and volume of CAN traffic. Configuration can be performed using the manufacturer's PC software or AT commands, and firmware updates are available through the USB Type-C interface.

Industrial Design and Reliable Operation

The aluminum enclosure is designed for DIN rail mounting and operation in temperatures ranging from -40°C to +85°C. The 9–36 V DC power input simplifies integration into industrial automation systems, while reverse polarity protection helps prevent installation-related damage. EMC Level 3 protection, a hardware watchdog, and protection against electrostatic discharge (ESD), surge, and EFT improve reliability in demanding industrial environments. Built-in 120 Ω CAN termination resistors can be enabled using DIP switches.


The USR-CAN315 is suitable for industrial automation, automotive electronics, energy systems, EV charging stations, and monitoring applications utilizing CAN FD communication.

Features

  • Interfaces and Communication
    • Bidirectional CAN FD / CAN to Ethernet conversion
    • 1 × CAN FD port
    • 1 × RJ45 10/100 Mbps Ethernet port
    • Auto MDI/MDI-X support
    • TCP Server support
    • TCP Client support
    • UDP Server support
    • UDP Client support
    • Dual independent socket channels
  • CAN FD Bus
    • CAN FD protocol support
    • Compatible with CAN 2.0A and CAN 2.0B
    • Standard and extended CAN frame support
    • Arbitration field baud rate: 5 kbps to 1 Mbps
    • Data field baud rate: 100 kbps to 5 Mbps
    • Custom baud rate support
    • Normal, Loopback, and Listen-Only operating modes
    • Built-in 120 Ω CAN termination resistors
  • Conversion Modes
    • Transparent conversion
    • Transparent conversion with ID
    • Standard protocol conversion
    • Modbus TCP conversion
    • Custom frame header and trailer conversion
    • Bidirectional communication (Ethernet to CAN or CAN to Ethernet)
  • Modbus TCP
    • Modbus TCP Master support
    • Modbus TCP Slave support
    • Up to 64 transmit messages
    • Up to 64 receive messages
  • Data Filtering and Packet Processing
    • 32 configurable CAN frame ID filters
    • Standard and extended frame filtering
    • Configurable packet length
    • Configurable packet timeout
    • Registration packet support
    • Ethernet and CAN heartbeat packet support
  • Configuration and Diagnostics
    • Configuration via PC software
    • Configuration using AT commands
    • PC-based firmware upgrade
    • USB Type-C interface for firmware updates
    • Factory reset button
    • PWR, WORK, NET, and CAN status LEDs
    • Hardware watchdog
  • Protection and Operating Conditions
    • EMC Level 3 protection
    • Electrostatic discharge (ESD) protection
    • Surge protection
    • EFT protection
    • Reverse polarity protection
    • Operating temperature: -40°C to +85°C
    • Operating humidity: 5% to 95% RH, non-condensing
  • Power and Mechanical Specifications
    • 9–36 V DC power input
    • Recommended power supply: 12 V DC / 1 A
    • Aluminum enclosure
    • DIN rail mounting
    • Dimensions: 110 × 27 × 76.1 mm

Kit includes

  • PUSR USR-CAN315 converter
  • Ethernet cable
  • Certificate of conformity
