TJA1044T
search
  • TJA1044T
ID: 579193
5902186304543
zł4.92
Tax included

zł4.00 tax excl.

The TJA1044T is a reliable high-speed CAN bus transceiver, ideal for automotive applications where high EMC standards, a wide operating temperature range, and compliance with ISO 11898-2:2016 and SAE J2284 standards are required. Thanks to its features, this component is used in vehicle control systems, communication modules, and other applications requiring stable and secure CAN communication.

24h
Available
Available quantity: 18

Description

The TJA1044T is a high-speed CAN bus transceiver compliant with the ISO 11898-2:2016 standard, designed for use in automotive systems with a 12 V supply voltage. The component provides an interface between the CAN protocol controller and the physical two-wire CAN bus. It features low electromagnetic emission and high immunity to electromagnetic interference, meeting the EMC requirements of IEC TS 62228 and SAE J2962-2. With its passive behavior in the unpowered state, the TJA1044T does not load the CAN bus, which is essential in automotive applications requiring reliability and safety.

Specifications

  • Standards compliance: ISO 11898-2:2016, SAE J2284-1 to SAE J2284-5
  • Supply voltage (VCC): 4.75 V – 5.25 V
  • Data transmission speed: up to 1 Mbit/s
  • Supply current in normal mode: 2 mA – 10 mA
  • Supply current in standby mode: 0.01 mA – 0.015 mA
  • Operating temperature: –40°C to +150°C

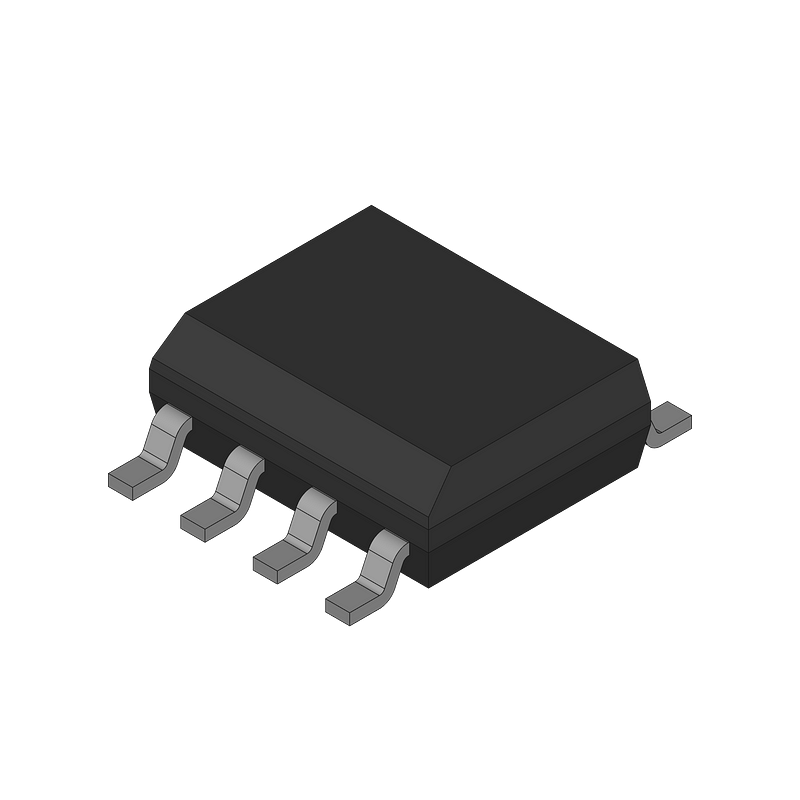

  • Package: SOIC-8 (SOP-8)
  • AEC-Q100 qualified
  • ESD resistance: up to 8 kV (IEC and HBM)
  • Built-in protection features: undervoltage detection on VCC and VIO pins, thermal protection
  • Compatible with microcontrollers powered at 3.3 V and 5 V (assuming 5 V-tolerant I/Os on the microcontroller)
