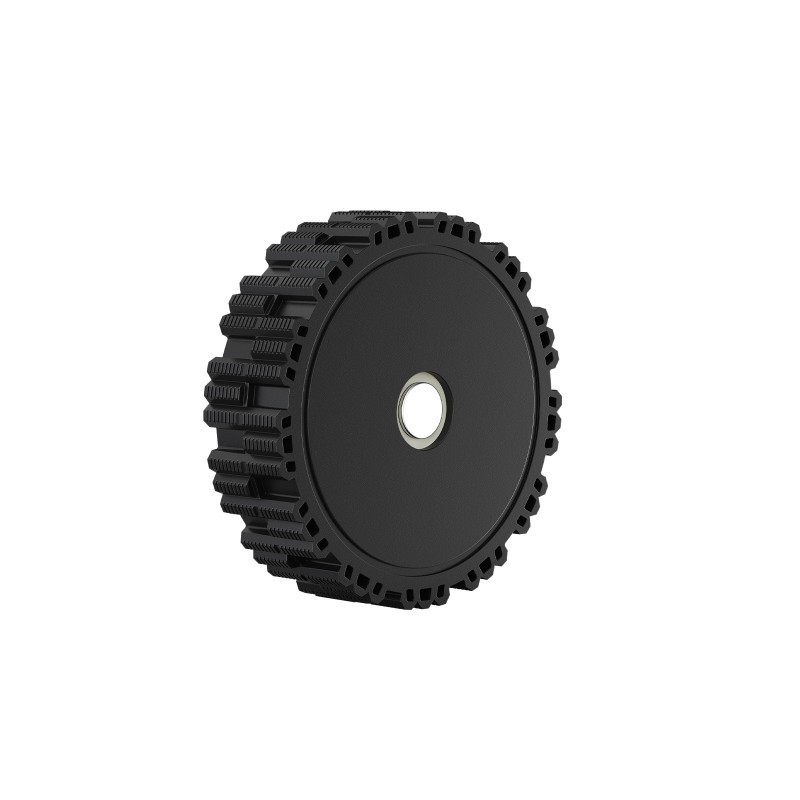

DDSM400 wheel servo - Waveshare 28626

Description

The DDSM400 motor utilizes Direct Drive technology, eliminating the need for gear reduction, which results in higher efficiency, lower noise levels, and zero mechanical backlash. Its integrated design—based on a brushless permanent magnet synchronous motor (PMSM), encoder, and built-in driver—makes the DDSM400 a compact and reliable solution for mobile and hobby robotics. It supports LIN bus communication and multi-range feedback (position, speed, current, temperature), making it suitable for applications requiring variable speed control and precise operation.

Features

• Motor type: PMSM with external rotor
• Integrated driver and 12-bit encoder
• No-load speed: 400 ±20 RPM
• Rated speed: 100 RPM
• Rated torque: 0.15 Nm
• Locked-rotor torque: 0.3 Nm
• Rated current: 0.24 ±0.07 A
• Stall current: 1.0 ±0.2 A
• Torque constant: 0.3 Nm/A
• Supply voltage: 25.2 V DC
• Operating modes: current loop, position control, speed control
• Noise level: ≤40 dB(A)
• Communication interface: single-channel LIN bus
• Feedback: position, speed, current, temperature, error codes
• Supports electronic braking
• Protection rating: IP54 (dust and splash resistant)
• Weight: 236 g
• Operating temperature: -5 °C to 40 °C
• Diameter: 74.5 mm
• Width: 20 mm
