zł24.88 tax excl.

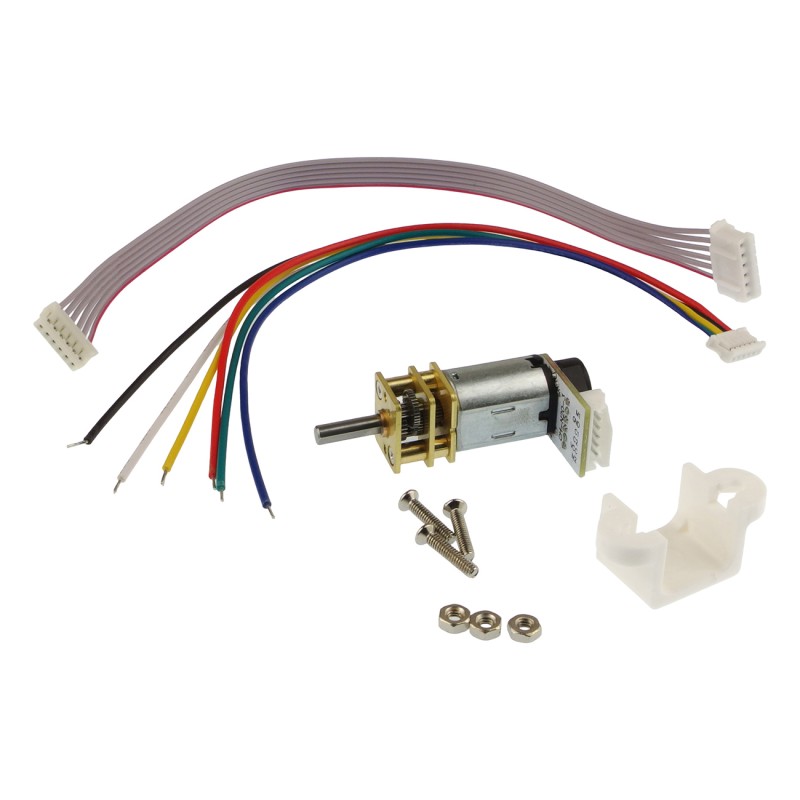

Small motor with metal gear and encoder, rotation speed 200 RPM, operating voltage 12 V. Waveshare DCGM-N20-12V-EN-200RPM
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
This small motor with a metal gearbox features a "D" shaped shaft with a diameter of 3 mm and a length of approximately 10 mm. Thanks to the robust metal gearbox construction, the motor ensures high durability and reliability in various applications. It is equipped with an incremental encoder, which allows for precise monitoring of shaft position and rotational speed, crucial for applications requiring accurate measurements.
The recommended operating voltage for the motor is 12 V, at which it achieves a speed of 200 RPM and a maximum torque of 1.2 kg*cm. At this voltage, the motor draws up to 1.1 A, ensuring effective performance and operational stability. The compact size and energy efficiency of the motor make it an ideal solution for use in robotics, automation, and other precision applications.
Features
- Motor type: DC
- Gear ratio: 150:1
- Supply voltage: 12 V
- Speed: 200 RPM
- Maximum torque: 1.2 kg*cm
- Minimum current draw: 0.1 A
- Maximum current draw: 1.1 A
- Incremental encoder 7PPR (14 pole pairs)
Data sheet
- DC motor power
- MP
- Gear material
- Metal
- Gear ratio
- 150:1
- Rotation speed
- 1200RPM
- Shaft diameter
- 3 mm
- Shaft shape
- D
- Obustronny wał silnika
- Tak
- Power supply voltage
- 12V
